CBA ANSI Code

CBA ANSI is a T6 lamp with a G17t-A2 base operating at 500 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Obscured Top finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CBA lamps.

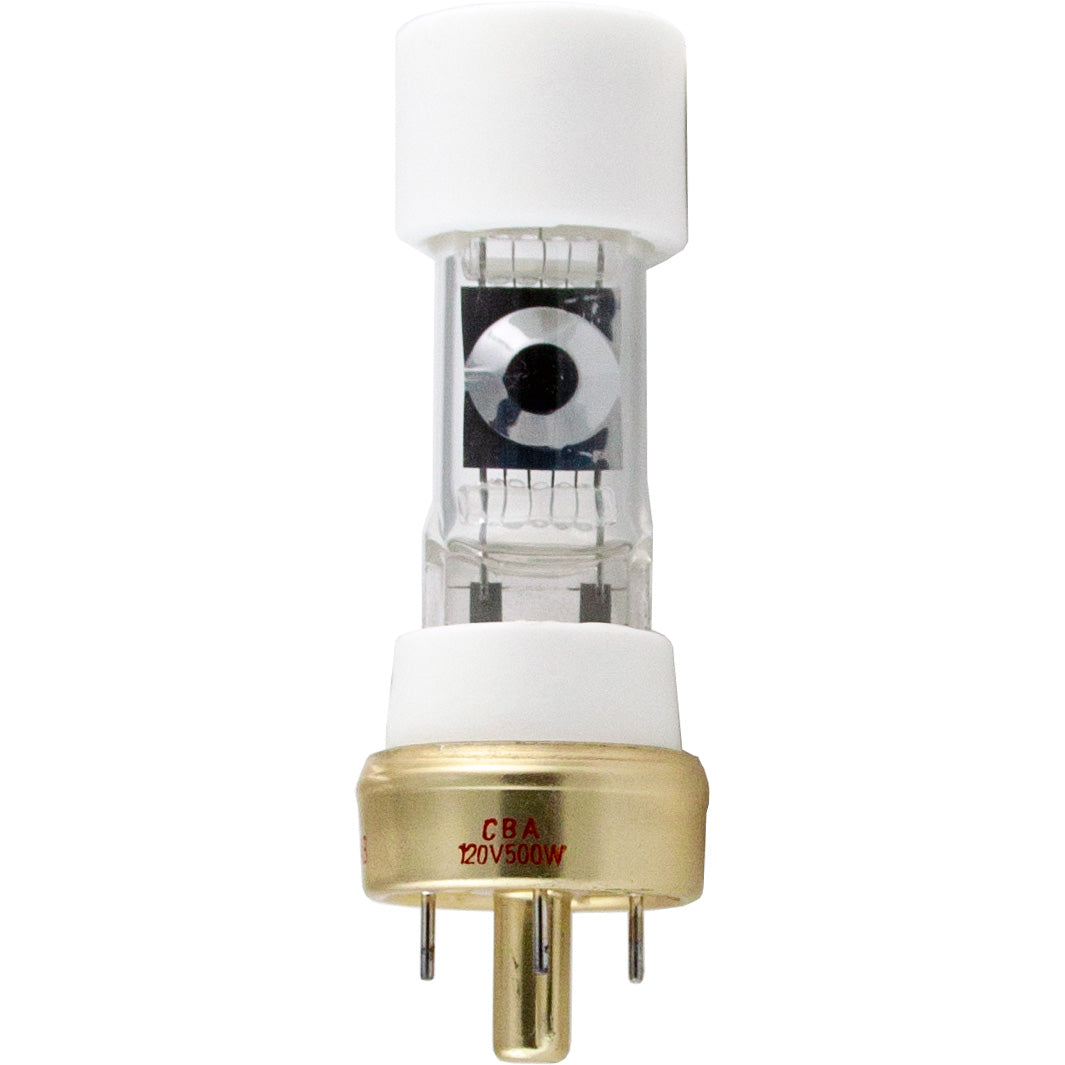

CBA Photograph

CBA

Electrical Specifications

Amps4.17
Volts120
Watts500

Photometrics

Color Temperature3200
Light Center Length (LCL)1 3/4

Physical Characteristics

BaseG17t-A2
Bulb ShapeT6
FilamentC-13D
FinishObscured Top
Max Overall Length (MOL)3 5/8

Operating Characteristics

Burn PositionBDTH
Life Hours50

General Information
Lamp CodeCBA
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T6 Shape

T6
Diameter Designation6/8"
Glass Diameter 3/4" (0.75")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsCBA500W, 120V
Microlites120-500-31C
Microlites125-500-31S
Canimpex120-500-31C
Canimpex125-500-31S

Equipment Used In

BrandModelType
Bell and Howell Slide Cube 975Q
Bell and Howell Slide Cube 965Q
Bell and Howell Slide Cube 977Q
Bell and Howell Slide Cube 982QX
Bell and Howell Slide Cube 978Q
Bell and Howell Slide Cube 981Q
Bell and Howell Slide Cube 982Q
Bell and Howell Slide Cube 981QZ
Bell and Howell Slide Cube 956Q
Bell and Howell Slide Cube 972Q
Bell and Howell Slide Cube 982QD
Eastman Kodak Brightlight Modules Ektagraphic RA-960
Eastman Kodak Carousel 860
Eastman Kodak Carousel AV-860
Eastman Kodak Ektagraphic AF
Eastman Kodak Carousel 800
Eastman Kodak Recordak MPG-TH
Eastman Kodak Recordak PR-1 (w/ Heat Shield)
Eastman Kodak Ektagraphic RA-950
Eastman Kodak Brightlight Modules Ektagraphic E
Eastman Kodak Carousel 950
Eastman Kodak Carousel 850
Eastman Kodak Carousel 900
Eastman Kodak Carousel 570
Eastman Kodak Carousel AV-850
Eastman Kodak Ektagraphic B
Eastman Kodak Carousel 650
Eastman Kodak Carousel 850K
Eastman Kodak Carousel AV-500
Eastman Kodak Carousel 600
Eastman Kodak Carousel 550
Eastman Kodak Carousel AV-760
Eastman Kodak Carousel 500
Eastman Kodak Ektagraphic E
Eastman Kodak Carousel AV-650
Eastman Kodak Carousel AV-580
Eastman Kodak Carousel RA-950
Eastman Kodak Carousel AV-700
Eastman Kodak Carousel AV-600
Eastman Kodak Ektagraphic RA-960
Eastman Kodak Carousel B-865-Q
Eastman Kodak Carousel B-864-Q
Eastman Kodak Brightlight Modules Ektagraphic AF
Eastman Kodak Carousel AV-570
Eastman Kodak Carousel AV-800
Eastman Kodak Carousel AV-900
Eastman Kodak Recordak MPG-TH (w/ heat shield)
Eastman Kodak Carousel AV-750
Eastman Kodak Carousel AV-950
Eastman Kodak Carousel 580
Eastman Kodak Carousel 760
Eastman Kodak Recordak MPG-H (w/ heat shield)
Eastman Kodak Brightlight Modules Ektagraphic B
Eastman Kodak Carousel 700
Eastman Kodak Carousel 750
Eastman Kodak Ektagraphic Slide
Eastman Kodak Recordak MPG-H
GAF (Ansco) Anscorama 980 8mm Projector Movie
GAF (Ansco) Anscorama 940 8mm Projector Movie
GAF (Ansco) Anscorama 910 8mm Projector Movie
GAF (Ansco) Anscorama 980-Z 8mm Projector Movie
GAF (Ansco) Anscorama 970 8mm Projector Movie
GAF (Ansco) Anscorama 960 8mm Projector Movie
Mast Development Random Access S-6 Slide Projector
Mast Development Random Access S-4 Slide Projector
Mast Development Random Access 137-S-6
Mast Development Random Access 137-S
Mast Development Random Access 137-S-4
Sears Roebuck Pro-Am Projector Slide / Filmstrip
Singer Corporation SM-1000
Singer Corporation Graflex SM-1000
Singer Corporation Instructor II
Spindler & Sauppe Spectrum 32 Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide Spectrum 32 Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 32 Projector Slide / Filmstrip

CBA may also be listed as:
69000690 EIKO00690 UPC00690 WIKO
70000700 WIKO031293006905 EIKO1000126 USHIO
11969 STANDARDPRO2121 SYLVANIA23926-923926-9 PHILIPS
239269/CBA PHILIPS3129300690 WIKO3611736117 GENERAL-ELECTRIC
500-120 LEITZ-LEICA500-120V LEITZ-LEICA5124 SYLVANIA54580 NAED
54580 OSRAM54580 SYLVANIA54580/CBA SYLVANIA69549119697
69549119697UPC STANDARDPRO78-8006-9842 3M93593 OSRAM945008
A1/241 THORNBW-CBACBACBA ANSI
CBA ASACBA BULB-DIRECTCBA EIKOCBA GENERAL-ELECTRIC
CBA INTERLIGHTCBA KONDOCBA MICROLAMPCBA OSRAM
CBA PHILIPSCBA STANDARDPROCBA SYLVANIACBA USHIO
CBA WESTINGHOUSECBA WIKOCBA-120 VOLT ANSICBA-120 VOLT ASA
CBA-120VCBA-120V ANSICBA-120V ASACBA-120V-500W
CBA-120V-500W ANSICBA-120V-500W ASACBA-120V-500W-G17Q-T6-C13D-CERAMIC-TOP-3200K-50H-BDTH-3-5/8MOL-1-3/4LCL-Q-SLIDE-PROJECTOR-PROXIMITY-REFLECTORCBA-120V/120V/500W/G17T ANSI
CBA-125VCBA-125V ANSICBA-125V ASACBA-125V-500W
CBA-125V-500W ANSICBA-125V-500W ASACBA-5CBA-5 BULB-DIRECT
CBA-5 WIKOCBA-500WATT EIKOCBA/120CBA/120 ANSI
CBA/120 ASACBA/120V GENERAL-ELECTRICCBA/120V/500W OSRAMCBA/120V/500W/G17T ANSI
CBA/125CBA/125 ANSICBA/125 ASACBA/5 ANSI
CBA/5 ASACBA/500 EIKOCBA/500W EIKOCBA/99
CBA/DLCBA/ESCBA/LCBA/LL
CBA/XCBA/XPCBA/XTRAEQ-CBA ELECTROQUIP
G17Q-CAP-500-120-CBA-3200-BDTH-BP-92-44-50-24-MNT-36117-3 GENERAL-ELECTRICG17Q-CAP-500W-120V-CBA-3200-BDTH-BP-92-44-50-24-MNT-36117-3 GENERAL-ELECTRICG17T-120V-500W-PROJECTION ELECTROQUIPH/120V/500W/G17T-A2/T6/C13D/50H/CBA-120V
H/120V/500W/G17T/T6/50H/CBA ANSIH/120V/500W/G17T/T6/C13D/50H/CBA-120VPROJECTION/120V/500W/G17T/50H ELECTROQUIPSPQ500T6G17T-A2C13D120V-CBA-120V
SPQ500T6G17TC13D120V-CBA-120VSPQ500T6G17TCL120V-CBA-120VT-6/500W/120V/3-PIN/G17T/CBA STANDARDPROY-90083 OSRAM
