CBF ANSI Code

CBF ANSI is a T6 lamp with a G17t-A2 base operating at 500 watts and 120 volts. It has a color temperature of 3400 Kelvin. It has a Obscured Top finish. The average rated life is 10 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CBF lamps.

Electrical Specifications

Amps4.17
Volts120
Watts500

Photometrics

Color Temperature3400
Light Center Length (LCL)1 3/4

Physical Characteristics

BaseG17t-A2
Bulb ShapeT6
FilamentC-13D
FinishObscured Top
Max Overall Length (MOL)3 5/8

Operating Characteristics

Burn PositionBDTH
Life Hours10

General Information
Lamp CodeCBF
Code TypeANSI

T6 Shape

T6
Diameter Designation6/8"
Glass Diameter 3/4" (0.75")
Shape CodeT
Shape ClassificationTubular

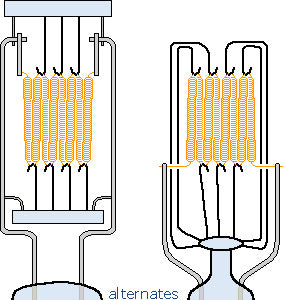

C-13D Filament

C-13D
Coil TypeC - Single Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSICBF

Equipment Used In

BrandModelType
Visual Impact Materials CIP Overslide

CBF may also be listed as:
CBFCBF ANSICBF ASACBF INTERLIGHT
CBF-120 VOLT ANSICBF-120 VOLT ASACBF-120VCBF-120V ANSI
CBF-120V ASACBF-120V-500WCBF-120V-500W ANSICBF-120V-500W ASA
CBF-120V-500W-G17Q-T6-C13D-CERAMIC-TOP-3400K-10H-BDTH-3-5/8MOL-1-3/4LCL-Q-SLIDE-PROJECTOR-PROXIMITY-REFLECTORCBF-120V/120V/500W/G17T ANSICBF-DEL ANSICBF-DEL ASA
CBF/120CBF/120 ANSICBF/120 ASACBF/120V/500W/G17T ANSI
CBF/DELH/120V/500W/G17T-A2/T6/C13D/10HH/120V/500W/G17T-A2/T6/C13D/10H/CBFH/120V/500W/G17T/T6/C13D/10H
H/120V/500W/G17T/T6/C13D/10H/CBFSPQ500T6G17T-A2C13D120V-CBFSPQ500T6G17TC13D120V-CBFSPQ500T6G17TCL120V-CBF
