CBJ ANSI Code

CBJ ANSI is a T8 lamp with a BA15s base operating at 75 watts and 120 volts. It has a color temperature of 2925 Kelvin. It has a Obscured top finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CBJ lamps.

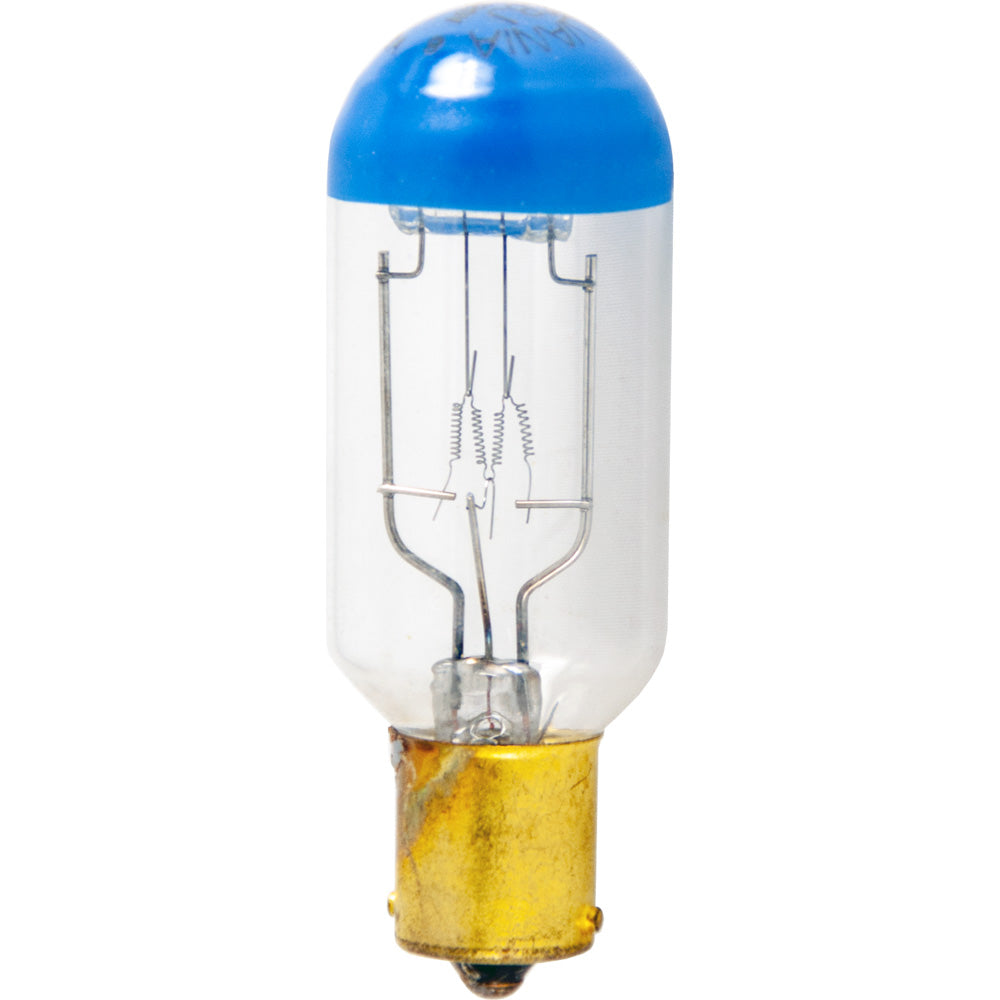

CBJ Photograph

CBJ

Electrical Specifications

Amps0.625
Volts120
Watts75

Photometrics

Candlepower99
Color Temperature2925
Light Center Length (LCL)1 3/8
Lumens1200

Physical Characteristics

BaseBA15s
Bulb ShapeT8
FilamentCC-13
FinishObscured top
Max Overall Length (MOL)3 1/8

Operating Characteristics

Burn PositionBase Down
Life Hours50

General Information
Lamp CodeCBJ
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T8 Shape

T8
Diameter Designation8/8"
Glass Diameter 1" (1.0")
Shape CodeT
Shape ClassificationTubular

CC-13 Filament

CC-13
Coil TypeCC - Coiled Coil

BA15s Base

BA15s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites120-075-04
Canimpex120-075-04

Equipment Used In

BrandModelType
AO Reichert O
AO Reichert MK-100
AO Reichert Pocket
Alpex (Allied Impex) Deluxe Portable Projector Slide / Filmstrip
Alpex (Allied Impex) Deluxe Portable Jr. Projector Slide / Filmstrip
Argus B Projector Slide / Filmstrip
Argus CP Projector Slide / Filmstrip
Argus PB-100 Projector Slide / Filmstrip
Argus PA-100 Microfilm Reader
Argus DP Projector Slide / Filmstrip
Argus Microfilm Reader Microfilm Reader
Argus A Projector Slide / Filmstrip
Bausch & Lomb POC 50 Watt
Bogen Photo Linda 35AL
Bogen Linda Auto-Feed
Bogen Photo Auto-Feed
Burton Medical X-Ray 300-D
Burton Medical X-Ray B
Burton Medical All Purpose 300D
Burton Medical X-Ray A
Burton Medical X-Ray C
Camera Specialty Co. Voigt Projector Slide / Filmstrip
Eastman Kodak Kodatoy Universal
Eastman Kodak Recordak Portable A
Eastman Kodak Analyst
Eastman Kodak Table Viewer A-2
Eastman Kodak Table Viewer 2
Eastman Kodak Table Daylight Viewer A
Eastman Kodak Table Viewer A
Eastman Kodak Recordak Junior A
FR Corp. Minolta Mini 16
Keystone Camera Co. Inc. B Projector Slide / Filmstrip
Keystone Camera Co. Inc. D Projector Slide / Filmstrip
Keystone Camera Co. Inc. C Projector Slide / Filmstrip
L.E. Davidson Picture Service Mighty Midget Projector Slide / Filmstrip
L.E. Davidson Picture Service Mightier Midget Projector Slide / Filmstrip
Minolta Mini-35 Slide Projector
Minolta Mini-16 Slide Projector
Minox Minox 30
Minox 30
Mundus Co. Club
Operadio Mfg. Co. Explainette 100 Projector Slide / Filmstrip
Operadio Mfg. Co. Explainette 14A35 Projector Slide / Filmstrip
Projection Service Co. Talk Pix 5 35mm Sound Movie Projector
Projection Service Co. Talk Pix 7 35mm Sound Movie Projector
Projection Service Co. Talk Pix 6 35mm Sound Movie Projector
RCA PG-38 Projector
RCA PB-29 Projector
RCA RCA-Q Projector
Reger Mfg. Co. 1601
SOS Photo Cine Optics F&B Ceco Pro Jr. Viewer/Editing
SOS Photo Cine Optics Muray Pro 35 Viewer/Editing
Sawyer's Inc. Viewmaster S-1 Projector
Sawyer's Inc. Reel Projectior S-1 Projector
Singer Corporation Junior
Singer Corporation Illustravox Junior
Singer Corporation Illustravox Salesmaker
Singer Corporation Salesmaker
Society for Visual Education (SVE) X-Ray Projector Slide / Filmstrip
Society for Visual Education (SVE) Dental X-Ray Projector Slide / Filmstrip
Society for Visual Education (SVE) Electro-Acoustic EAQ Projector Slide / Filmstrip
Society for Visual Education (SVE) Tri-Purpose CC Projector Slide / Filmstrip
Society for Visual Education (SVE) Fresco Dental X-Ray Projector Slide / Filmstrip
Society for Visual Education (SVE) Miniature X-Ray RK Projector Slide / Filmstrip
Society for Visual Education (SVE) Electro-Acoustic EA Projector Slide / Filmstrip
Society for Visual Education (SVE) Electro-Acoustic A Projector Slide / Filmstrip
Society for Visual Education (SVE) Tri-Purpose BB Projector Slide / Filmstrip
Soligor Deluxe Portable Jr.
Viewlex Sight & Sound Projector Slide / Filmstrip
Viewlex Table Talk Projector Slide / Filmstrip
Viewlex Senior Preview Projector Slide / Filmstrip
Viewlex View-Tape
Viewlex Station Projector Slide / Filmstrip
Viewlex Language Station Projector Slide / Filmstrip
Viewlex Senior Projector Slide / Filmstrip
Vokar, Inc. Vokar FT Filmstrip / Slide Projector
Vokar, Inc. Vokar D Filmstrip / Slide Projector
Vokar, Inc. Vokar C Filmstrip / Slide Projector
Webster Company Projecto-Sell AP-42 35mm Sound Movie Projector
Webster Company AP-26 PROJECTO-SELL
Webster Company Projecto-Sell AP-26 35mm Sound Movie Projector
Webster Company Projecto-Sell AP-32 35mm Sound Movie Projector
Webster Company Projecto-Sell AP-45 35mm Sound Movie Projector
Webster Company AP-42 PROJECTO-SELL
Webster Company AP-32 PROJECTO-SELL
Webster Company AP-45 PROJECTO-SELL
Weimet Film Co. Weimet A Deluxe
Weimet Film Co. Weimet A
Western Reserve Electronics Weimet Projector Slide / Filmstrip

Sources

  • "Sylvania Photolamps." Catalog. GTE Sylvania, .
  • "GE Rolodex Projector Cross Reference." Rolodex. Photo Lamp Department General Electric Co. & Popular Photography Magazine, .
  • "Technical Manual: Photolamp Division." Manual. Sylvania Electric Products Inc., .
