CBX ANSI Code

CBX ANSI is a T8 lamp with a BA15d base operating at 75 watts and 120 volts. It has a color temperature of 2925 Kelvin. It has a Obscured top finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CBX lamps.

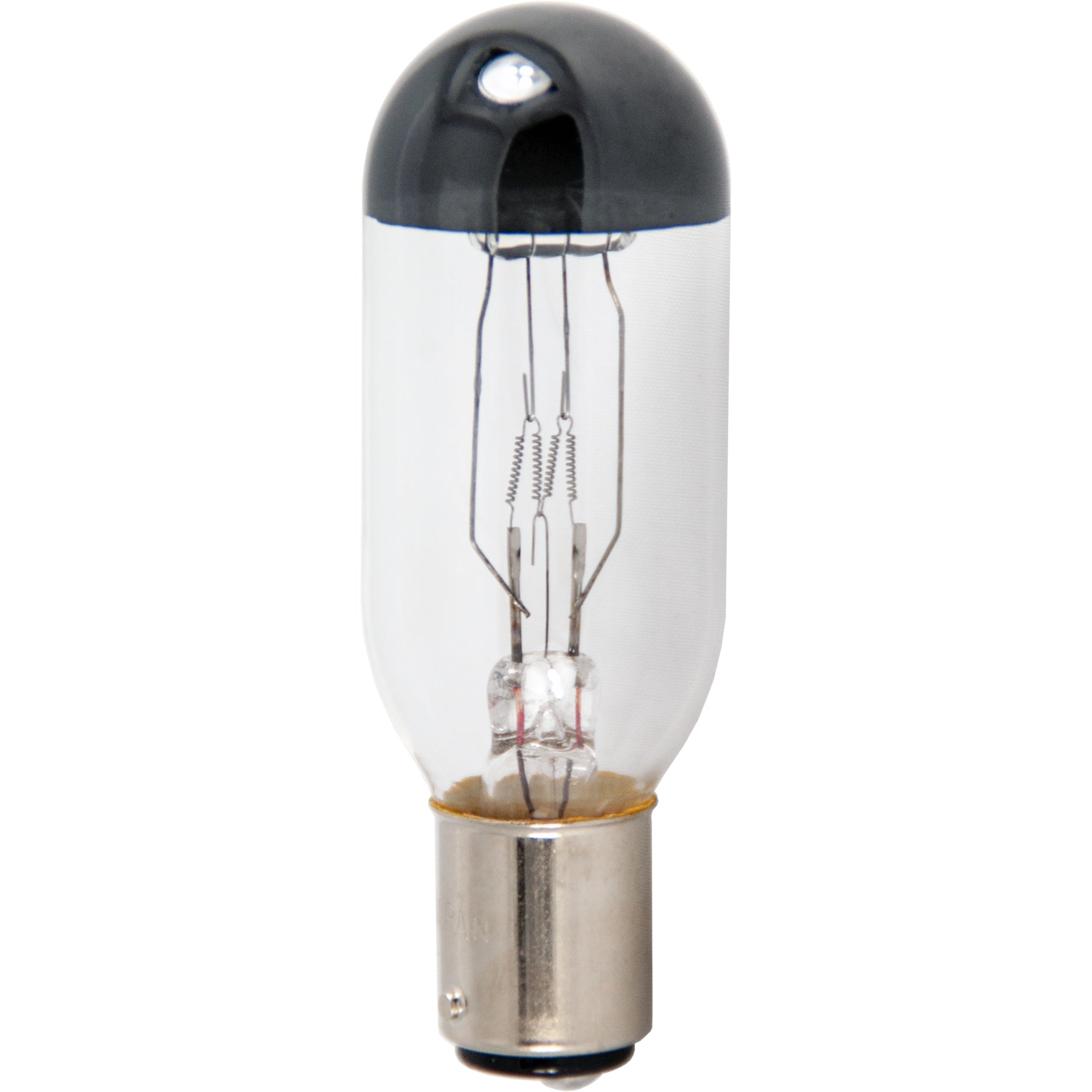

CBX Photograph

CBX

Electrical Specifications

Amps0.625
Volts120
Watts75

Photometrics

Candlepower99
Color Temperature2925
Light Center Length (LCL)1 3/8
Lumens1200

Physical Characteristics

BaseBA15d
Bulb ShapeT8
FilamentC-13
FinishObscured top
Max Overall Length (MOL)3 1/8

Operating Characteristics

Burn PositionVBD
Life Hours50

General Information
Lamp CodeCBX
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T8 Shape

T8
Diameter Designation8/8"
Glass Diameter 1" (1.0")
Shape CodeT
Shape ClassificationTubular

C-13 Filament

C-13
Coil TypeC - Single Coil

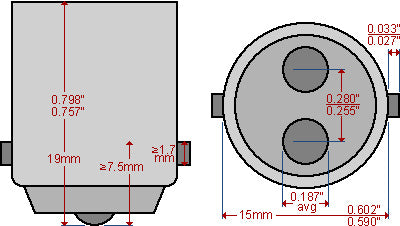

BA15d Base

BA15d

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsCBX75W, 120V
Microlites120-075-03
Canimpex120-075-03

Equipment Used In

BrandModelType
Atlas Warner 9 X 9
COC (Graflex) Examiner Projector Slide / Filmstrip
COC (Graflex) Master 10-10 Projector Slide / Filmstrip
COC (Graflex) Executive 88 Projector Slide / Filmstrip
COC (Graflex) Executive 89 Projector Slide / Filmstrip
COC (Graflex) Standard 66
COC (Graflex) Traveler Projector Slide / Filmstrip
COC (Graflex) Communicator Projector Slide / Filmstrip
Camera Optics Manufacturing Corp. Traveler Projector Slide / Filmstrip
Camera Optics Manufacturing Corp. Master 10-10 Projector Slide / Filmstrip
Camera Optics Manufacturing Corp. Standard 66 Projector Slide / Filmstrip
Camera Optics Manufacturing Corp. Executive 88 Projector Slide / Filmstrip
Camera Optics Manufacturing Corp. Executive 89 Projector Slide / Filmstrip
Camera Optics Manufacturing Corp. Communicator Projector Slide / Filmstrip
Camera Optics Manufacturing Corp. Executive Filmstrip Projector
Camera Optics Manufacturing Corp. Examiner Projector Slide / Filmstrip
Compco Corp. Franklin President Dual Editor 16mm Viewer/Editing
DeVry GT 16mm Movie Projector
Excel Movie Products Pekoscope D 16mm Movie Projector
Excel Movie Products P-16 16mm Movie Projector
Excel Movie Products P-16-H 16mm Movie Projector
Excel Movie Products P-26 16mm Movie Projector
Hudson Photographic Industries (HPI) Prima 345 Projector
Hudson Photographic Industries (HPI) Prima 340 Projector
Hudson Photographic Industries (HPI) Prima 341 Projector
Hudson Photographic Industries (HPI) Mark II Projector
Hudson Photographic Industries (HPI) Mini Projector 348 Projector
Hudson Photographic Industries (HPI) Prima Aperture Duplex 351 Projector
Hudson Photographic Industries (HPI) Mini Projector 347 Projector
Kalart Victor Craig V-1633
Kalart Victor Craig V-4643
Kalart Victor Craig Projecto Editor V-8
Kalart Victor Craig V-16
Kalart Victor Craig Projecto Editor VS-8
Kalart Victor Craig V-8
Kalart Victor Craig V-46
Kalart Victor Craig KE-16
Kalart Victor Craig Projecto Editor KE-S8
Kalart Victor Craig V-1643
Kalart Victor Craig Projecto Editor KE-8
Kalart Victor Craig KE-8
Kalart Victor Craig VS-8
Kalart Victor Craig KE-S8
SOS Photo Cine Optics Junior Viewer/Editing
SOS Photo Cine Optics F&B Ceco Pro Jr. Viewer/Editing
SOS Photo Cine Optics F&B Ceco Viewer/Editing
Singer Corporation Constellation Executive
Singer Corporation Graflex
Singer Corporation Examiner
Singer Corporation Constellation Examiner
Singer Corporation Constellation Traveler
Singer Corporation Traveler
Singer Corporation Executive
Tel-A-Story Senior Narrator Projector Slide / Filmstrip
Tel-A-Story Senior Master Projector Slide / Filmstrip
Tel-A-Story Senior Projector Slide / Filmstrip
Tel-A-Story Master Projector Slide / Filmstrip
Tel-A-Story Narrator Projector Slide / Filmstrip
Victor Animatograph Projecto-Editor VE-16 Viewer/Editing
Victor Animatograph Projecto-Editor VE-1643 Viewer/Editing
Victor Animatograph Projecto-Editor VKE-16 Viewer/Editing
Weimet Film Co. Weimet A Deluxe
Weimet Film Co. Weimet A
Western Reserve Electronics Weimet Projector Slide / Filmstrip

Sources

  • "Projection Lamp and Equipment Guide." Guide. GE Lighting, .
  • "Sylvania Photolamps." Catalog. GTE Sylvania, .
  • "GE Rolodex Projector Cross Reference." Rolodex. Photo Lamp Department General Electric Co. & Popular Photography Magazine, .
  • "Technical Manual: Photolamp Division." Manual. Sylvania Electric Products Inc., .
