CDD ANSI Code

CDD ANSI is a T8 lamp with a BA15s base operating at 100 watts and 120 volts. It has a color temperature of 2975 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CDD lamps.

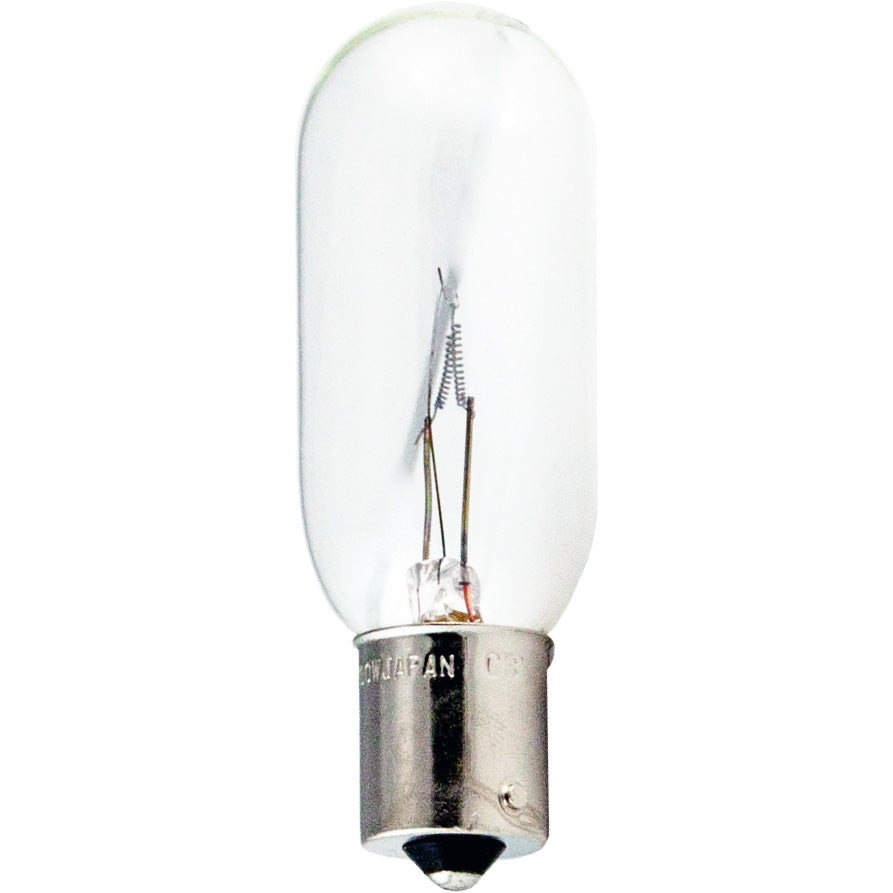

CDD Photograph

CDD

Electrical Specifications

Amps0.833
Volts120
Watts100

Photometrics

Candlepower160
Color Temperature2975
Light Center Length (LCL)1 3/8
Lumens2000

Physical Characteristics

BaseBA15s
Bulb ShapeT8
FilamentCC-2V
FinishClear
Max Overall Length (MOL)3 1/8

Operating Characteristics

Burn PositionBase Down
Life Hours50

General Information
Lamp CodeCDD
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T8 Shape

T8
Diameter Designation8/8"
Glass Diameter 1" (1.0")
Shape CodeT
Shape ClassificationTubular

CC-2V Filament

CC-2V
Coil TypeCC - Coiled Coil

BA15s Base

BA15s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites120-100-04D
Canimpex120-100-04D

Equipment Used In

BrandModelType
AO Reichert O
AO Reichert MK-100
Argus CP Projector Slide / Filmstrip
Argus PA-100 Microfilm Reader
Argus B Projector Slide / Filmstrip
Argus Microfilm Reader Microfilm Reader
Argus PB-100 Projector Slide / Filmstrip
Argus DP Projector Slide / Filmstrip
Argus A Projector Slide / Filmstrip
Bausch & Lomb Compact Acuity
Bausch & Lomb 71-34-40-100W
Bausch & Lomb POC 100 Watt
Burton Medical X-Ray C
Burton Medical X-Ray 300-D
Burton Medical X-Ray B
Burton Medical All Purpose 300D
Camera Specialty Co. Voigt Projector Slide / Filmstrip
FR Corp. Minolta Mini 35 Slide Projector
FR Corp. Minolta Mini 44 Slide Projector
Keystone Camera Co. Inc. Editor K-110 Projector Slide / Filmstrip
Keystone Camera Co. Inc. Editor 110 Projector Slide / Filmstrip
Keystone Camera Co. Inc. D Projector Slide / Filmstrip
Keystone Camera Co. Inc. B Projector Slide / Filmstrip
Keystone Camera Co. Inc. C Projector Slide / Filmstrip
L.E. Davidson Picture Service Mightier Midget Projector Slide / Filmstrip
Minolta Mini-35 Slide Projector
Projection Service Co. Talk Pix 6 35mm Sound Movie Projector
Projection Service Co. Talk Pix 5 35mm Sound Movie Projector
Projection Service Co. Talk Pix 7 35mm Sound Movie Projector
RCA RCA-Q Projector
Revere Camera Co. T-100 Projector Slide / Filmstrip
Revere Camera Co. Q Projector Slide / Filmstrip
Revere Camera Co. T-100Q Projector Slide / Filmstrip
Society for Visual Education (SVE) X-Ray Projector Slide / Filmstrip
Society for Visual Education (SVE) Tri-Purpose BB Projector Slide / Filmstrip
Society for Visual Education (SVE) Tri-Purpose CC Projector Slide / Filmstrip
Society for Visual Education (SVE) Jam Handy Picturol Q Projector Slide / Filmstrip
Society for Visual Education (SVE) Electro-Acoustic EAQ Projector Slide / Filmstrip
Society for Visual Education (SVE) Dental X-Ray Projector Slide / Filmstrip
Society for Visual Education (SVE) Fresco Dental X-Ray Projector Slide / Filmstrip
Society for Visual Education (SVE) Jam Handy Q Projector Slide / Filmstrip
Society for Visual Education (SVE) Miniature X-Ray RK Projector Slide / Filmstrip
Society for Visual Education (SVE) Picturol Q Projector Slide / Filmstrip
Viewlex BOP (120 Volts) Projector Slide / Filmstrip
Vokar, Inc. Vokar FT Filmstrip / Slide Projector
Vokar, Inc. Vokar C Filmstrip / Slide Projector
Vokar, Inc. Vokar D Filmstrip / Slide Projector
