CDJ ANSI Code

CDJ ANSI is a T8 lamp with a BA15d base operating at 100 watts and 120 volts. It has a color temperature of 2975 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CDJ lamps.

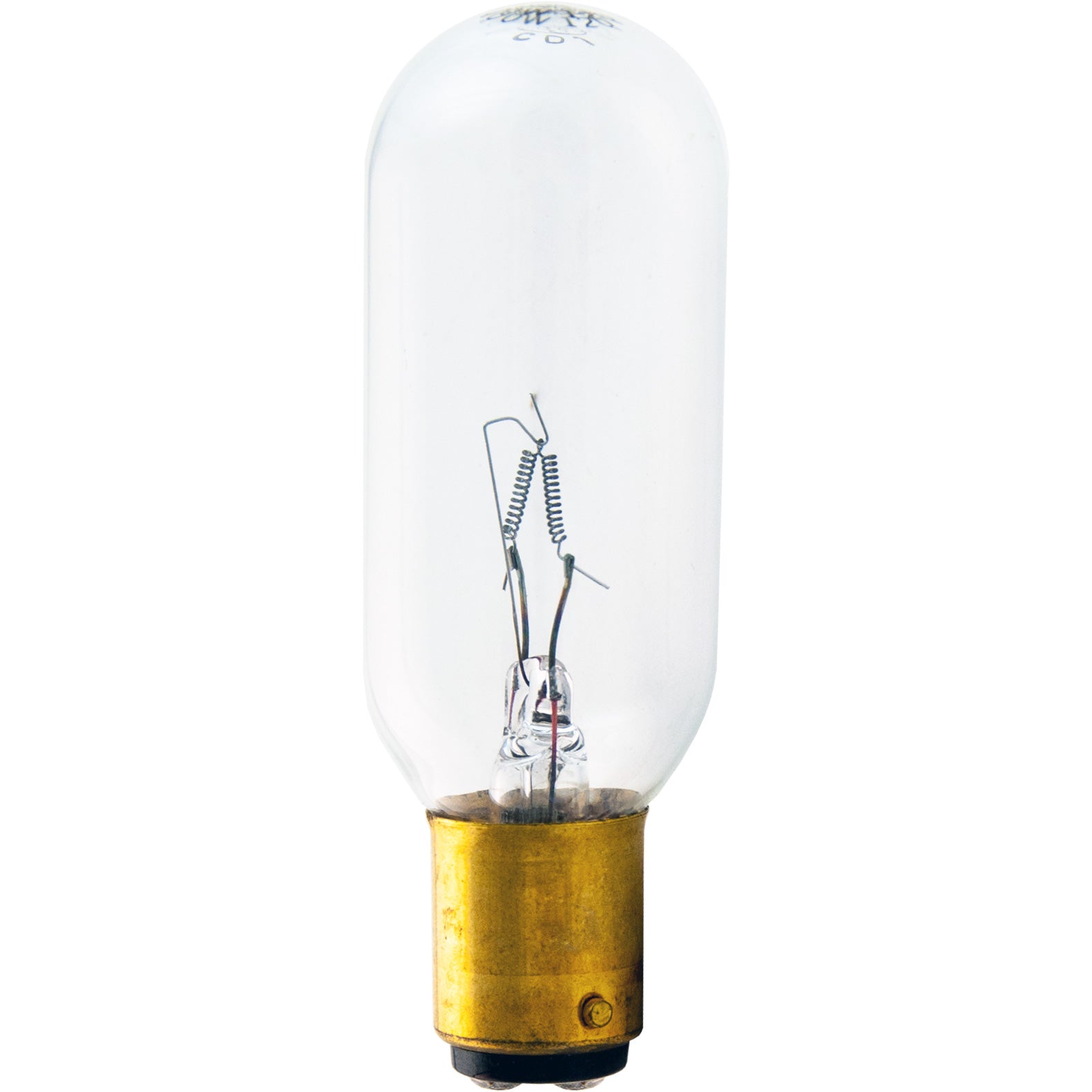

CDJ Photograph

CDJ

Electrical Specifications

Amps0.833
Volts120
Watts100

Photometrics

Candlepower160
Color Temperature2975
Light Center Length (LCL)1 3/8
Lumens2000

Physical Characteristics

BaseBA15d
Bulb ShapeT8
FilamentCC-2V
FinishClear
Max Overall Length (MOL)3 1/8

Operating Characteristics

Burn PositionVBD
Life Hours50

General Information
Lamp CodeCDJ
Code TypeANSI
Specification ReferenceANSI-SR24F2002

Substitution Notes
For 120W Version Use CEL

T8 Shape

T8
Diameter Designation8/8"
Glass Diameter 1" (1.0")
Shape CodeT
Shape ClassificationTubular

CC-2V Filament

CC-2V
Coil TypeCC - Coiled Coil

BA15d Base

BA15d

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsCDJ100W, 120V
Microlites120-100-03
Canimpex120-100-03

Equipment Used In

BrandModelType
Bausch & Lomb 71-71-48
Excel Movie Products Pekoscope D 16mm Movie Projector
GA Buttafarri Corp. Fer-Color 66

CDJ may also be listed as:
00740 EIKO00740 UPC00740 WIKO031293007407 EIKO
1000130 BLV1000130 USHIO100T8-108BA15D WESTINGHOUSE100T8-108BA15D120 GENERALELECTRIC
100T8-108BA15D120V GENERALELECTRIC100T8-108DC WESTINGHOUSE100T8-108DC120 GENERALELECTRIC100T8-108DC120V GENERALELECTRIC
100T8/108/DC GENERAL-ELECTRIC100W/T8/108/DC100WATT-T8-108-BA15D WESTINGHOUSE100WATT-T8-108-BA15D-120 VOLT GENERAL-ELECTRIC
2926629266 GENERAL-ELECTRIC29266 STANDARDPRO3129300740 WIKO
4316829266543168292665UPC STANDARDPRO6158-W PHILIPS6158-W-CDJ-CEL PHILIPS
6158W-CDJ/CEL BULB-DIRECT71-71-48 BAUSCH-LOMB71-71-48 BULB-DIRECT71-71-48/120 VOLT/100WATT BAUSCH-LOMB
71-71-48/120V/100W BAUSCH-LOMBBA15D-100W-CDJ-120V-T25MM-79.4MMMOL-34.9MMLCL-CC-2V-2000L-2975K-50H-BD-1000130 BLVBA15D-100W-CDJ-120V-T25MM-79.4MMMOL-34.9MMLCL-CC-2V-2000L-2975K-50H-BD-1000130 USHIOBW-CDJ
CDJ ANSICDJ ASACDJ EIKOCDJ GENERAL-ELECTRIC
CDJ INTERLIGHTCDJ LAMPTECHCDJ MICROLAMPCDJ PHILIPS
CDJ STANDARDPROCDJ USHIOCDJ WESTINGHOUSECDJ WIKO
CDJ-120 ANSICDJ-120 ASACDJ-120 VOLT ANSICDJ-120 VOLT ASA
CDJ-120V ANSICDJ-120V ASACDJ-120V-100WCDJ-120V-100W ANSI
CDJ-120V-100W ASACDJ-120V-100W-BA15D-T8-CC2V-CLEAR-2000L-2975K-50H-BD-3-1/8MOL-1-3/8LCL-I-SLIDE-PROJECTORCDJ-120V-T25MM-79.4MMMOL-34.9MMLCL-CC-2V-2000L-2975K-50H-BD-1000130 BLVCDJ-120V-T25MM-79.4MMMOL-34.9MMLCL-CC-2V-2000L-2975K-50H-BD-1000130 USHIO
CDJ-120V/120V/100W/BA15D ANSICDJ-CEL EIKOCDJ/120VCDJ/120V/100W/BA15D ANSI
CDJ/CEL BULB-DIRECTCDJ/CEL PHILIPSCDJ/T8-100W-120V-DC-BAYONET LAMPTECHI/120V/100W/BA15D/T8
I/120V/100W/BA15D/T8/CC2V/50HI/120V/100W/BA15D/T8/CC2V/50H/CDJI/120V/100W/BA15D/T8/CC2V/50H/CDJ-120VI/120V/100W/BA15D/T8/CL/50H/CDJ-120V
KP8-2KP8-2VDCV KONDOKP8-2VBA15D KONDOKP8-2VDC KONDOPH-100WATT-T8-108-BA15D WESTINGHOUSE
PH-100WATT-T8-108-BA15D-120 VOLT GENERAL-ELECTRICPH/100T8/108/DC GENERAL-ELECTRICPH/100W/T8/108/DCPH100T8-108BA15D WESTINGHOUSE
PH100T8-108BA15D120 GENERALELECTRICPH100T8-108BA15D120V GENERALELECTRICPH100T8-108DC WESTINGHOUSEPH100T8-108DC120 GENERALELECTRIC
PH100T8-108DC120V GENERALELECTRICPH100WT8-108BA15D WESTINGHOUSEPH100WT8-108BA15D120 GENERALELECTRICPH100WT8-108BA15D120V GENERALELECTRIC
PH100WT8-108DC WESTINGHOUSEPH100WT8-108DC120 GENERALELECTRICPH100WT8-108DC120V GENERALELECTRICSP100T8BA15DCC2V-120V
SP100T8BA15DCC2V120V-CDJ-120VSP100T8BA15DCL120V-CDJ-120VSP100T8DCCC2V-120VSP100T8DCCC2V120V-CDJ-120V
SP100T8DCCL120V-2000LSP100T8DCCL120V-CDJSP100T8DCCL120V-CDJ-120VT-8/100W/120V/BA15D/CDJ STANDARDPRO
