CDS ANSI Code

CDS ANSI is a T8 lamp with a BA15s base operating at 100 watts and 120 volts. It has a color temperature of 2900 Kelvin. It has a Obscured top finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CDS lamps.

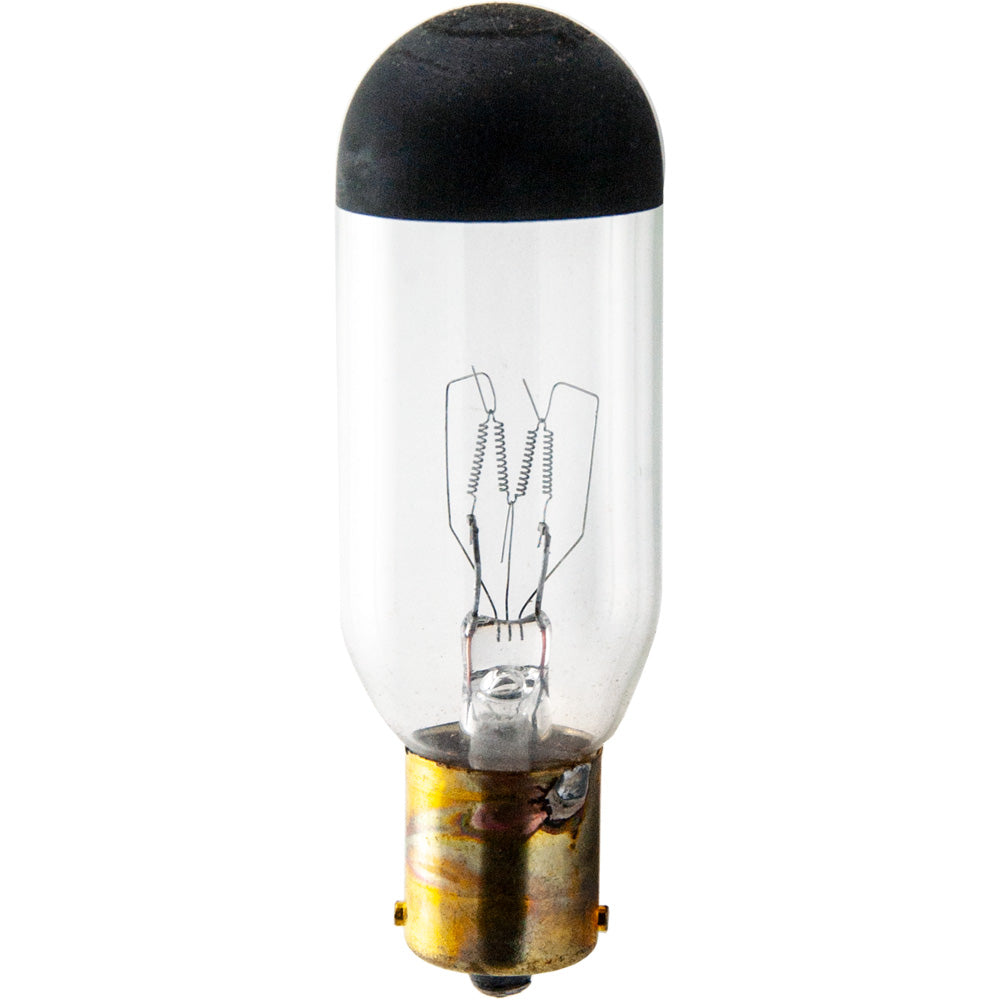

CDS Photograph

CDS

Electrical Specifications

Amps0.833
Volts120
Watts100

Photometrics

Candlepower140
Color Temperature2900
Light Center Length (LCL)1 3/8
Lumens1800

Physical Characteristics

BaseBA15s
Bulb ShapeT8
FilamentCC-13
FinishObscured top
Max Overall Length (MOL)3 1/8

Operating Characteristics

Burn PositionBase Down
Life Hours50

General Information
Lamp CodeCDS
Code TypeANSI
Specification ReferenceANSI-SR24F2002

Substitution Notes
Possible Substitution CDX
For 12V Use BXT
For 220V Use CJW
For 240V Use CJT

T8 Shape

T8
Diameter Designation8/8"
Glass Diameter 1" (1.0")
Shape CodeT
Shape ClassificationTubular

CC-13 Filament

CC-13
Coil TypeCC - Coiled Coil

BA15s Base

BA15s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsCDS100W, 115-125V
Microlites115-100-04W
Microlites120-100-04W
Canimpex115-100-04W
Canimpex120-100-04W

Equipment Used In

BrandModelType
AO Reichert MK-100
AO Reichert O
Accura 126 Slide Projector
Accura Portable Pocket Projector Slide Projector
Alpex (Allied Impex) Deluxe Portable Projector Slide / Filmstrip
Alpex (Allied Impex) Deluxe Portable Jr. Projector Slide / Filmstrip
Argus CP-1 Ceiling Projector Slide / Filmstrip
Argus PA-100 Microfilm Reader
Argus DP Projector Slide / Filmstrip
Argus A Projector Slide / Filmstrip
Argus B Projector Slide / Filmstrip
Argus CP Projector Slide / Filmstrip
Argus PB-150 Microfilm Reader
Argus PB-100 Projector Slide / Filmstrip
Argus PB-150 Ceiling Projector Slide / Filmstrip
Bausch & Lomb Balopticon 41-26-38
Bausch & Lomb 71-71-78
Bausch & Lomb POC 100 Watt
Beckman Densitometer
Bogen Linda Auto-Feed
Bogen Photo Auto-Feed
Bogen Photo Linda 35AL
Burton Medical X-Ray 300-D
Burton Medical All Purpose 300D
Burton Medical X-Ray C
Burton Medical X-Ray
Burton Medical X-Ray B
Dukane Automatic Flip Top 14A500E Projector
Dukane Cassette AV Matic 28A11A Projector
Dukane Response AV Matic 28A3 Projector
Dukane AV Matic 14A285C Projector
Dukane Manual Flip Top 14A533 Projector
Dukane Push Button Flip Top 14A543A Projector
Dukane Mite-E-Lite 14A395B Projector
Dukane AV Matic 14A285D Projector
Dukane Mite-E-Lite 14A395 Projector
Dukane AV Matic 14A285B Projector
Dukane Manual Flip Top 14A230 Projector
Dukane Manual Flip Top 14A533F Projector
Dukane Manual Flip Top 14A233 Projector
Dukane Manual Flip Top 14A233C Projector
Dukane Manual Flip Top 14A533C Projector
Dukane Cassette AV Matic 28A2 Projector
Dukane Push Button Flip Top 14A543C Projector
Dukane Manual Flip Top 14A533A Projector
Dukane Manual Flip Top 14A533B Projector
Dukane Flip Top 57648A Projector
Dukane Automatic Flip Top 14A500C Projector
Dukane Manual Flip Top 14A533D Projector
Dukane Push Button Flip Top 14A543D Projector
Dukane Cassette AV Matic 28A11 Projector
Dukane Automatic Flip Top 14A500D Projector
Dukane Push Button Flip Top 14A243 Projector
Dukane Manual Flip Top 14A230A Projector
Dukane AV Matic 14A285A Projector
Dukane Mite-E-Lite 14A395A Projector
Dukane Automatic Flip Top 14A500 Projector
Dukane Push Button Flip Top 14A240D Projector
Dukane Cassette Flip Top 28A25 Projector
Dukane Automatic Flip Top 14A500F Projector
Dukane Manual Flip Top 14A230D Projector
Dukane Push Button Flip Top 14A543B Projector
Dukane Automatic Flip Top 14A500A Projector
Dukane Manual Flip Top 14A230B Projector
Dukane Push Button Flip Top 14A240F Projector
Dukane Manual Flip Top 14A233B Projector
Dukane Push Button Flip Top 14A243C Projector
Dukane Push Button Flip Top 14A240E Projector
Dukane AV Matic 14A285E Projector
Dukane Push Button Flip Top 14A240 Projector
Dukane AV Matic 14A285G Projector
Dukane Flipview 57654A Projector
Dukane Push Button Flip Top 14A240C Projector
Dukane Manual Flip Top 14A233D Projector
Dukane AV Matic 14A285F Projector
Dukane Flipview 57648A Projector
Dukane Push Button Flip Top 14A543 Projector
Dukane Push Button Flip Top 14A543E Projector
Dukane Push Button Flip Top 14A243D Projector
Dukane Push Button Flip Top 14A243E Projector
Dukane Manual Flip Top 14A533E Projector
Dukane Manual Flip Top 14A233A Projector
Dukane Automatic Flip Top 14A500B Projector
Dukane Manual Flip Top 14A230C Projector
Dukane AV Matic 14A285 Projector
Dukane Cassette AV Matic 28A1 Projector
Eastman Kodak Kodatoy Universal
Eastman Kodak Kodascope Eight 20
Eastman Kodak Recordak Portable A
Eastman Kodak Kodascope Eight 20 Universal
Eastman Kodak Analyst
Eastman Kodak Kodascope Universal 8-20
Eastman Kodak Kodascope Eight 2
Eastman Kodak Recordak Junior A
Eastman Kodak Merit
Eastman Kodak Brightlight Modules Recordak Kodaslide 1A
Eastman Kodak Brightlight Modules Merit
Eastman Kodak Kodascope Eight 25
Eastman Kodak Recordak Kodaslide 2-A
Eastman Kodak Brightlight Modules Recordak Kodaslide 2A
Eastman Kodak Kodaslide Merit
Eastman Kodak Kodascope Eight Universal
Eastman Kodak Recordak Kodaslide 1-A
Emde Products, Inc. Emde 21
Federal Portable Reader-Projector Microfilm Reader
Graflex Jam-Handy Q Projector Slide / Filmstrip
Graflex Salesmaker Projector Filmstrip Sound
Graflex Junior Projector Filmstrip Sound
Hudson Photographic Industries (HPI) Square Theater 10 (120 Volt) Projector
Hudson Photographic Industries (HPI) 371 (120 Volt) Projector
Hudson Photographic Industries (HPI) Square Theater 370 (120 Volt) Projector
Hudson Photographic Industries (HPI) Theater 371 (120 Volt) Projector
Hudson Photographic Industries (HPI) Theater 373 (120 Volt) Projector
Hudson Photographic Industries (HPI) Theater (120 Volt) Projector
Hudson Photographic Industries (HPI) 370 (120 Volt) Projector
Hudson Photographic Industries (HPI) Square Theater 373 (120 Volt) Projector
Hudson Photographic Industries (HPI) Theater 370 (120 Volt) Projector
Hudson Photographic Industries (HPI) Theater 372 (120 Volt) Projector
Hudson Photographic Industries (HPI) Square Theater 372 (120 Volt) Projector
Hudson Photographic Industries (HPI) 372 (120 Volt) Projector
Hudson Photographic Industries (HPI) 373 (120 Volt) Projector
Hudson Photographic Industries (HPI) Square Theater 371 (120 Volt) Projector
Hudson Photographic Industries (HPI) Square (120 Volt) Projector
Hudson Photographic Industries (HPI) Mini Projector Projector
Hudson Photographic Industries (HPI) Mark I (120 Volt) Projector
Instructional Industries PAL
Keystone Camera Co. Inc. B Projector Slide / Filmstrip
Keystone Camera Co. Inc. C Projector Slide / Filmstrip
Keystone Camera Co. Inc. D Projector Slide / Filmstrip
L.E. Davidson Picture Service Mightier Midget Projector Slide / Filmstrip
LaBelle Industries Courier 16 (early models) Projector Slide / Filmstrip
Leitz Umena
Mast Development 132
Mast Development RW Projector Slide / Filmstrip
Mast Development Random Access 132 Projector Slide / Filmstrip
Minox Minox 30
Minox 30
Operadio Mfg. Co. Explainette 100 Projector Slide / Filmstrip
Operadio Mfg. Co. Explainette Automatic 14A90 Projector Slide / Filmstrip
Operadio Mfg. Co. Explainette 14A35 Projector Slide / Filmstrip
Ponder & Best Color Slide Projector
Prestoseal MGF 300X
RCA PG-38 Projector
RCA RCA-Q Projector
RCA PB-29 Projector
Reger Mfg. Co. 1601
Revere Camera Co. Q Projector Slide / Filmstrip
Revere Camera Co. T-100Q Projector Slide / Filmstrip
Revere Camera Co. T-100 Projector Slide / Filmstrip
Sawyer's Inc. Viewmaster Deluxe 300 Projector
Sawyer's Inc. Viewmaster Deluxe (older model) Projector
Sawyer's Inc. Deluxe (older model) Projector
Sawyer's Inc. Reel Projector Deluxe Projector
Singer Corporation Junior
Singer Corporation Salesmaker
Singer Corporation Illustravox Junior
Singer Corporation Illustravox Salesmaker
Society for Visual Education (SVE) X-Ray Projector Slide / Filmstrip
Society for Visual Education (SVE) Jam Handy Picturol Q Projector Slide / Filmstrip
Society for Visual Education (SVE) Fresco Dental X-Ray Projector Slide / Filmstrip
Society for Visual Education (SVE) Miniature X-Ray RK Projector Slide / Filmstrip
Society for Visual Education (SVE) Jam Handy Q Projector Slide / Filmstrip
Society for Visual Education (SVE) Tri-Purpose BB Projector Slide / Filmstrip
Society for Visual Education (SVE) Dental X-Ray Projector Slide / Filmstrip
Society for Visual Education (SVE) Electro-Acoustic EAQ Projector Slide / Filmstrip
Society for Visual Education (SVE) Model CC Projector Slide / Filmstrip
Society for Visual Education (SVE) Tri-Purpose CC Projector Slide / Filmstrip
Society for Visual Education (SVE) Skyline Slidette Projector Slide / Filmstrip
Society for Visual Education (SVE) Picturol Q-3 Projector Slide / Filmstrip
Soligor Deluxe Portable Jr.
Spindler & Sauppe Selectroslide 331 Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 332 Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 330 Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 322 Projector Slide / Filmstrip
Stellar 35mm Projector Slide
TM Visual Industries (TMC) 300 Microfilm
TM Visual Industries (TMC) Showmatic Projector Slide / Filmstrip
TM Visual Industries (TMC) TMC Projector Slide / Filmstrip
TM Visual Industries (TMC) Compact 150 Projector Slide / Filmstrip
TM Visual Industries (TMC) TMC Showoff 2010 Projector Slide / Filmstrip
Taylor Industries Merchant 300 XF
Taylor Industries Merchant 400
Videosonic Systems 600
Videosonic Systems 102-BR
Videosonic Systems BR
Videosonic Systems 102-B
Viewlex AP-1C Projector Slide / Filmstrip
Viewlex AP-3 Projector Slide / Filmstrip
Viewlex AP-2 Projector Slide / Filmstrip
Viewlex AP-1 Projector Slide / Filmstrip
Viewlex AP-5 Projector Slide / Filmstrip
Viewlex AP-2C Projector Slide / Filmstrip
Webster Company Projecto-Sell AP-42 35mm Sound Movie Projector
Webster Company Projecto-Sell AP-26 35mm Sound Movie Projector
Webster Company Projecto-Sell AP-45 35mm Sound Movie Projector
Webster Company AP-42 PROJECTO-SELL
Webster Company AP-32 PROJECTO-SELL
Webster Company AP-26 PROJECTO-SELL
Webster Company Projecto-Sell AP-32 35mm Sound Movie Projector
Webster Company AP-45 PROJECTO-SELL
Willoughbys Zett

CDS may also be listed as:
75000750 EIKO00750 UPC00750 WIKO
031293007506 EIKO048777108826 UPC100-T8-BA15S-115100-T8-BA15S-115V
100-T8-BA15S-C-115100-T8-BA15S-C-115V100-T8-BA15S-C-120100-T8-BA15S-C-120V
100-T8-BA15S-CL-115100-T8-BA15S-CL-115V100-T8-BA15S-CL-120100-T8-BA15S-CL-120V
100-T8-SC-115100-T8-SC-115V100-T8-SC-C-115100-T8-SC-C-115V
100-T8-SC-C-120100-T8-SC-C-120V100-T8-SC-CL-115100-T8-SC-CL-115V
100-T8-SC-CL-120100-T8-SC-CL-120V1000131 BLV1000131 USHIO
100WATT-T8-BA15S-CLEAR-120 VOLT130451 NARVA130451 ORBITEC130451/115V/100W NARVA
3129300750 WIKO456-4 DUKANE50350 NORELCO58-8175
58-8175/120V OSRAM58-8175/6158N/120V-PHILIPS OSRAM58-8192/120V OSRAM58-8192/6158N/120V-PHILIPS OSRAM
58.8175 OSRAM58.8175/120V OSRAM58.8175/6158N/120V-PHILIPS OSRAM58.8192/120V OSRAM
58.8192/6158N/120V-PHILIPS OSRAM588.1756158-C6158-N PHILIPS
6158-N-1156158-N-115V6158-N-120 VOLT PHILIPS6158-N-588.175 PHILIPS
6158-N-CDS-CDX6158N-120 PHILIPS6158N-120/120V/100W/B15S/T30MM/35MMLCL/OT/78MMMOL/25H PHILIPS6158N-120V PHILIPS
6158N/120V/100W6158N/120V/100W CONDOR6158N/120V/100W/1700L/BA15S/6X5.5A-FILAMENT/50H/OT/35MMLCL/25X78/TUBE/CC13M6158N/120V/100W/1700L/BA15S/6X5.5A-FILAMENT/50H/OT/35MMLCL/25X78/TUBE/CC13M CONDOR
6158N/120V/100W/BA15S/T30MM/35MMLCL/OT/78MMMOL/25H PHILIPS6158N/120V/100W/BA15S/T9.5/35MMLCL/OT/78MMMOL/25H PHILIPS6158N/58-8175/120V-OSRAM PHILIPS6158N/58-8192/120V-OSRAM PHILIPS
6158N/58.8175/120V-OSRAM PHILIPS6158N/58.8192/120V-OSRAM PHILIPS6158N/A1/21/120V-LIF PHILIPS6158N/CDS/120V-ANSI PHILIPS
6158NA1-21 PHILIPS71070 OSRAMA1-21 115A1-21 115V
A1-21-115 ATLASA1-21-115 LIFA1-21-115 THORNA1-21-115V ATLAS
A1-21-115V LIFA1-21-115V THORNA1-21-115VOLT ATLASA1-21-115VOLT LIF
A1-21-115VOLT THORNA1-21/120V LIFA1-21/6158N/120V-PHILIPS LIFA1/21 THORN
A1/21-115VOLTBA15S-100W-CDS/CDX-120V-T25MM-79.4MMMOL-34.9MMLCL-CC-13-1800L-2900K-50H-BD-1000131 BLVBA15S-100W-CDS/CDX-120V-T25MM-79.4MMMOL-34.9MMLCL-CC-13-1800L-2900K-50H-BD-1000131 USHIOBW-CDS
CDSCDS ANSICDS ASACDS BECKMAN-INSTRUMENTS
CDS GENERAL-ELECTRICCDS INTERLIGHTCDS MICROLAMPCDS USHIO
CDS WESTINGHOUSECDS WIKOCDS-115 ANSICDS-115 ASA
CDS-115V ANSICDS-115V ASACDS-115V-100W ANSICDS-115V-100W ASA
CDS-120 ANSICDS-120 ASACDS-120 VOLT ANSICDS-120 VOLT ASA
CDS-120VCDS-120V ANSICDS-120V ASACDS-120V-100W
CDS-120V-100W ANSICDS-120V-100W ASACDS-120V-100W-BA15S-T8-CC13-OBSCURED-TOP-1800L-2900K-50H-BD-3-1/8MOL-1-3/8LCL-I-FILM-STRIP-SLIDE-PROJECTORCDS-120V/120V/100W/BA15S ANSI
CDS-CDX ANSICDS-CDX ASACDS-CDX EIKOCDS-CDX SYLVANIA
CDS-CDX WESTINGHOUSECDS-CDX WIKOCDS-CDX/T8-120V-100W-SC-BAYONET LAMPTECHCDS/115V/100W BECKMAN-INSTRUMENTS
CDS/120CDS/120V/100W/BA15S ANSICDS/6158N/120V-PHILIPS ANSICDS/CDX
CDS/CDX BULB-DIRECTCDS/CDX INTERLIGHTCDS/CDX LAMPTECHCDS/CDX MICROLAMP
CDS/CDX ORBITECCDS/CDX OSRAMCDS/CDX USHIOCDS/CDX-100W-120V-BA15S USHIO
CDS/CDX-120V-100W-BA15S USHIOCDS/CDX-120V-T25MM-79.4MMMOL-34.9MMLCL-CC-13-1800L-2900K-50H-BD-1000131 BLVCDS/CDX-120V-T25MM-79.4MMMOL-34.9MMLCL-CC-13-1800L-2900K-50H-BD-1000131 USHIOCDS/CDX/115V ORBITEC
CDS/CDX/120V ANSICL70320 CARLEY-LAMPSDENSITOMETERDENSITOMETER BULB-DIRECT
DENSITOMETER/115V BECKMAN-INSTRUMENTSDENSITOMETER/120 VOLT/100WATT BECKMAN-INSTRUMENTSDENSITOMETER/120V BECKMAN-INSTRUMENTSDENSITOMETER/120V/100W BECKMAN-INSTRUMENTS
H-92776 ORBITECHLG-BP-540 ROYALI/120V/100W/BA15S/T25MM/2CC8/35MMLCL/1700L/68MMMOL/OT/50H/6158N-120V PHILIPSI/120V/100W/BA15S/T8/2CC8-OR-C13/OT/50H
I/120V/100W/BA15S/T8/2CC8-OR-C13/OT/50H/CDS-120VI/120V/100W/BA15S/T8/2CC8/35MMLCL/1700L/68MMMOL/OT/50H/6158N-120V PHILIPSI/120V/100W/BA15S/T8/2CC8/35MMLCL/OT/50H/6158N-120V PHILIPSI/120V/100W/BA15S/T8/2CC8/OT/50H
I/120V/100W/BA15S/T8/2CC8/OT/50H/CDSI/120V/100W/BA15S/T8/2CC8/OT/50H/CDS-120VI/120V/100W/BA15S/T8/C13/OT/50HI/120V/100W/BA15S/T8/C13/OT/50H/CDS
I/120V/100W/BA15S/T8/C13/OT/50H/CDS-120VI/120V/100W/BA15S/T8/OT/50HI/120V/100W/BA15S/T8/OT/50H/CDSI/120V/100W/BA15S/T8/OT/50H/CDS-120V
INC-120V-100W-CC13-50HR/120V/100W/BA15S/CDS/CDX USHIOINC-120V-100W-CC13-50HR/CDS/CDX USHIOKP-8-100-120 VOLT-100WATTKP8-100-115-100
KP8-100-115-100WKP8-100-115V100KP8-100-115V100WKP8-100-120-100
KP8-100-120-100WKP8-100-120V100KP8-100-120V100WPH-100-T8-BA15S-115
PH-100-T8-BA15S-115VPH-100-T8-BA15S-C-120PH-100-T8-BA15S-C-120VPH-100-T8-BA15S-CL-120
PH-100-T8-BA15S-CL-120VPH-100-T8-SC-115PH-100-T8-SC-115VPH-100-T8-SC-C-120
PH-100-T8-SC-C-120VPH-100-T8-SC-CL-120PH-100-T8-SC-CL-120VPH-100W-T8-BA15S-115
PH-100W-T8-BA15S-115VPH-100W-T8-BA15S-C-120PH-100W-T8-BA15S-C-120VPH-100W-T8-BA15S-CL-120
PH-100W-T8-BA15S-CL-120VPH-100W-T8-SC-115PH-100W-T8-SC-115VPH-100W-T8-SC-C-120
PH-100W-T8-SC-C-120VPH-100W-T8-SC-CL-120PH-100W-T8-SC-CL-120VPH-100WATT-T8-BA15S-OPAQUE-120 VOLT
SP100T8BA15S2CC8-OR-C13OT120VSP100T8BA15S2CC8-OR-C13OT120V-CDS-120VSP100T8BA15S2CC8-OR-OT120VSP100T8BA15S2CC8-OR-OT120V-CDS-120V
SP100T8BA15S2CC8OT120VSP100T8BA15S2CC8OT120V-CDS-120VSP100T8BA15SC13OT120VSP100T8BA15SC13OT120V-CDS-120V
SP100T8BA15SOT120VSP100T8BA15SOT120V-CDS-120VSP100T8SC2CC8-OR-C13OT120VSP100T8SC2CC8-OR-C13OT120V-CDS-120V
SP100T8SC2CC8-OR-OT120VSP100T8SC2CC8-OR-OT120V-CDS-120VSP100T8SC2CC8OT120VSP100T8SC2CC8OT120V-CDS
SP100T8SC2CC8OT120V-CDS-120VSP100T8SCC13OT120VSP100T8SCC13OT120V-CDSSP100T8SCC13OT120V-CDS-120V
SP100T8SCOT120VSP100T8SCOT120V-CDSSP100T8SCOT120V-CDS-120V
