CEB ANSI Code
CEB ANSI is a T8 lamp with a BA15d base operating at 100 watts and 120 volts. It has a color temperature of 2975 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CEB lamps.

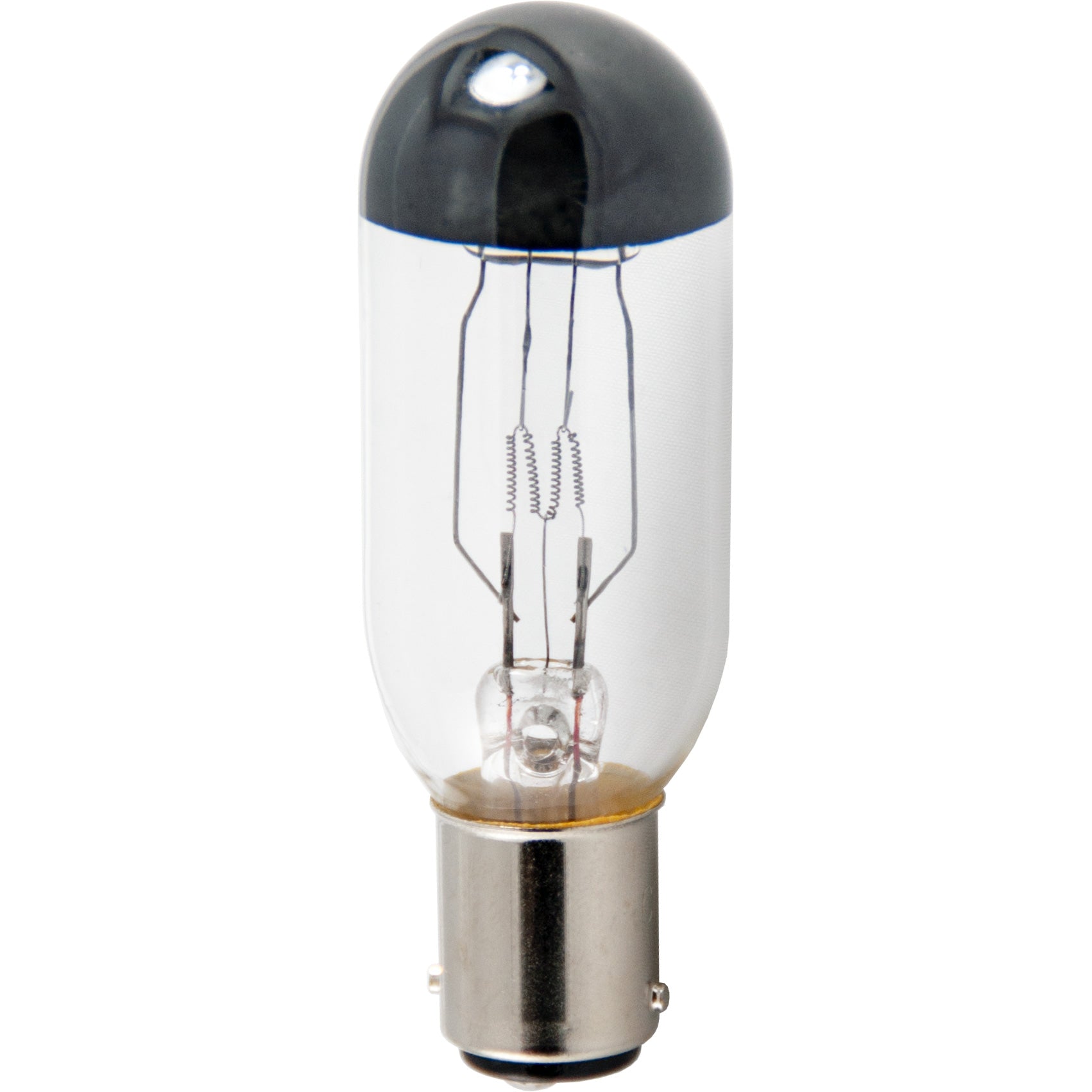

CEB Photograph |
 |
Electrical Specifications | |
| Amps | 0.833 |
|---|---|
| Volts | 120 |
| Watts | 100 |
Photometrics | |
| Candlepower | 150 |
|---|---|
| Color Temperature | 2975 |
| Light Center Length (LCL) | 1 3/8 |
| Lumens | 1850 |
Physical Characteristics | |
| Base | BA15d |
|---|---|
| Bulb Shape | T8 |
| Filament | CC-13 |
| Finish | Clear |
| Max Overall Length (MOL) | 3 1/8 |
Operating Characteristics | |
| Burn Position | VBD |
|---|---|
| Life Hours | 50 |
General Information | |
| Lamp Code | CEB |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
Substitution Notes | |
| Possible Substitution | CDK |
|---|---|
T8 Shape | |
 | |
| Diameter Designation | 8/8" |
|---|---|
| Glass Diameter | 1" (1.0") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-13 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
BA15d Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Norman Lamps | CEB | CEB | |
Equipment Used In | ||
| Brand | Model | Type |
| COC (Graflex) | Examiner | Projector Slide / Filmstrip |
| COC (Graflex) | Traveler | Projector Slide / Filmstrip |
| COC (Graflex) | Executive 89 | Projector Slide / Filmstrip |
| COC (Graflex) | Master 10-10 | Projector Slide / Filmstrip |
| COC (Graflex) | Executive 88 | Projector Slide / Filmstrip |
| COC (Graflex) | Communicator | Projector Slide / Filmstrip |
| F&B / Ceco Incorporated | 35mm Professional | 35mm Movie Projector |
| Singer Corporation | Communicator | |
CEB may also be listed as: | |||
| 100WATT-T8-BA15D WESTINGHOUSE | 100WATT-T8-BA15D-115VOLT WESTINGHOUSE | 100WATT-T8-BA15D-115VOLT-125VOLT WESTINGHOUSE | 100WATT-T8-BA15D-120 VOLT |
| 100WATT-T8-BA15D-125VOLT | 100WATT-T8-BA15D-CLEAR-120 VOLT | BW-CEB | CEB ANSI |
| CEB ASA | CEB BULB-DIRECT | CEB INTERLIGHT | CEB LAMPTECH |
| CEB MICROLAMP | CEB WESTINGHOUSE | CEB WIKO | CEB-120 VOLT ANSI |
| CEB-120 VOLT ASA | CEB-120V ANSI | CEB-120V ASA | CEB-120V-100W |
| CEB-120V-100W ANSI | CEB-120V-100W ASA | CEB-120V-100W-BA15D-T8-CC13-CLEAR-1850L-2975K-50H-BD-3-1/8MOL-1-3/8LCL-I-SLIDE-PROJECTOR | CEB-120V/120V/100W/BA15D ANSI |
| CEB-CDK WESTINGHOUSE | CEB-CDK-CEA WESTINGHOUSE | CEB-CEA ANSI | CEB-CEA ASA |
| CEB-CEA-CDK ANSI | CEB-CEA-CDK ASA | CEB/120V | CEB/120V/100W/BA15D ANSI |
| CEB/T8-120V-100W-DC-BAYONET LAMPTECH | I/120V/100W/BA15D/T8/CC13/50H | I/120V/100W/BA15D/T8/CC13/50H/CEB | I/120V/100W/BA15D/T8/CC13/50H/CEB-120V |
| I/120V/100W/BA15D/T8/CL/50H/CEB-120V | PH-100WATT-T8-BA15D WESTINGHOUSE | PH-100WATT-T8-BA15D-120 VOLT WESTINGHOUSE | SP100T8BA15DCC13-120V |
| SP100T8BA15DCC13120V-CEB-120V | SP100T8BA15DCL-120V | SP100T8BA15DCL120V-CEB-120V | SP100T8DCCC13-120V |
| SP100T8DCCC13120V-CEB-120V | SP100T8DCCL-120V | SP100T8DCCL120V-1850L | SP100T8DCCL120V-CEB |
| SP100T8DCCL120V-CEB-120V | |||
