CEW ANSI Code

CEW ANSI is a T8 lamp with a BA15s base operating at 150 watts and 120 volts. It has a color temperature of 3075 Kelvin. It has a Obscured top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CEW lamps.

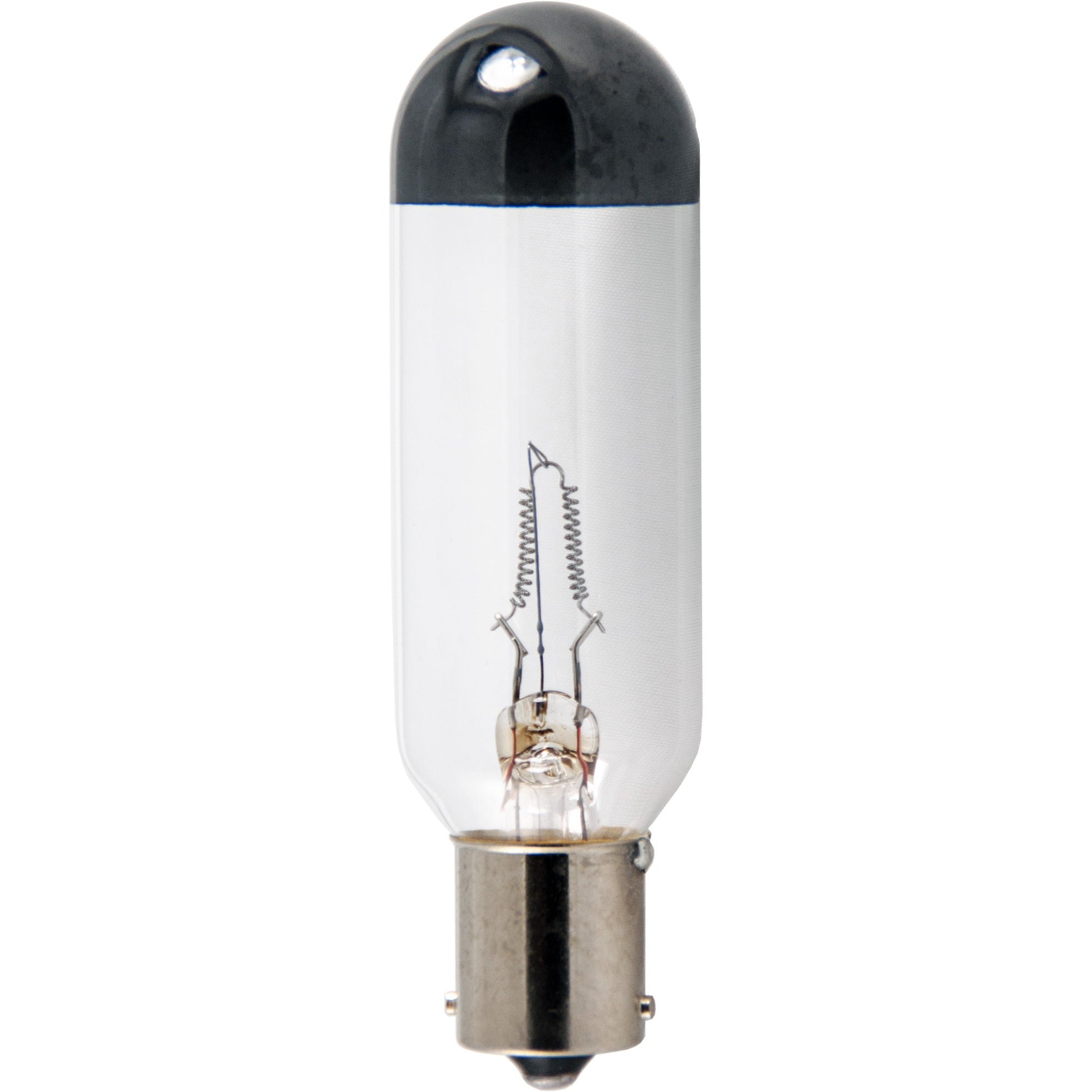

CEW Photograph

CEW

Electrical Specifications

Amps1.25
Volts120
Watts150

Photometrics

Candlepower280
Color Temperature3075
Light Center Length (LCL)1 3/8
Lumens3500

Physical Characteristics

BaseBA15s
Bulb ShapeT8
Filament2CC-8
FinishObscured top
Max Overall Length (MOL)3 5/8

Operating Characteristics

Burn PositionBase Down
Life Hours25

General Information
Lamp CodeCEW
Code TypeANSI
Specification ReferenceANSI-SR24F2002

Substitution Notes
Clear Top Variation CFC
For 220V Use CKK/220V/150W
For 230V Use CKK/230V/150W
For 240V Use CKK/240V/150W
For 250V Use CKK/250V/150W

T8 Shape

T8
Diameter Designation8/8"
Glass Diameter 1" (1.0")
Shape CodeT
Shape ClassificationTubular

2CC-8 Filament

2CC-8
Coil TypeCC - Coiled Coil

BA15s Base

BA15s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsCEW150W, 120-125V
Microlites110-150-04W
Microlites120-150-04W
Canimpex110-150-04W
Canimpex120-150-04W

Equipment Used In

BrandModelType
AO Reichert MK-150
AO Reichert Educator
AO Reichert Educator 150
AO Reichert Performer 150
AO Reichert 150
Argus CP-1 Ceiling Projector Slide / Filmstrip
Argus PAB-200 Microfilm Reader
Argus PB-200 Projector Slide / Filmstrip
Argus PA-200 Microfilm Reader
Argus PB-150 Microfilm Reader
Argus PB-150 Ceiling Projector Slide / Filmstrip
Argus PBB-200 Projector Slide / Filmstrip
Bausch & Lomb Balopticon 41-26-38
Bell and Howell TDC Standard 600-G
Bell and Howell Headliner Standard Slide
Bell and Howell TDC Vivid Deluxe Duo RN
Bell and Howell TDC Vivid Standard A-2
Bell and Howell Standard A3
Bell and Howell TDC Filmstrip AS
Bell and Howell Vivid Duo RN
Bell and Howell TDC Vivid Deluxe B
Bell and Howell TDC Standard 720-G
Bell and Howell TDC Vivid Standard A-3
Bell and Howell TDC Standard
Bell and Howell TDC Standard 300-G
Bell and Howell TDC Filmstrip 720-G
Bell and Howell Standard 300G
Bell and Howell TDC Standard 115-G
Bell and Howell Vivid Standard A2
Bell and Howell Standard 600G
Bell and Howell Standard 115G
Bell and Howell TDC Standard A-1
Bell and Howell Vivid Standard A3
Bell and Howell Vivid Headliner Standard
Bell and Howell Filmstrip 720-G
Bell and Howell Filmstrip 504-G
Bell and Howell Standard A1
Bell and Howell Filmstrip AS
Bell and Howell Standard 720G
Bell and Howell Headliner Standard
Bell and Howell Deluxe B
Bell and Howell Vivid Deluxe B
Brumberger 1500
Brumberger 1314 ROCKET
Calvin Company Movie-Mite 62 Projector
Calvin Company Movie-Mite 52 Projector
Calvin Company Movie-Mite 42 Projector
Dukane Mite-E-Lite 14A395A Projector
Dukane Manual 14A135 Projector
Dukane Manual 14A395 Projector
Dukane Manual 14A395C Projector
Dukane Manual 14A395B Projector
Dukane Mite-E-Lite 14A395B Projector
Eastman Kodak Recordak Kodaslide 2-A
Eastman Kodak Kodaslide Merit
Eastman Kodak Recordak Kodaslide 1-A
Elmo CS-2
Emde Products, Inc. Emde 21
Federal Portable Reader-Projector Microfilm Reader
GM Laboratories SP-203A SKAN
GM Laboratories SP-203A
GoldE Manufacturing Co. EZG-42
GoldE Manufacturing Co. Manumatic EZG-42
GoldE Manufacturing Co. Manumatic 300-P-1042 8mm Projector Movie Sound
GoldE Manufacturing Co. Cornet
GoldE Manufacturing Co. Manumatic 300-P-1043
GoldE Manufacturing Co. Manumatic 300-EZG-42
GoldE Manufacturing Co. Nu-Manumatic
GoldE Manufacturing Co. Air Flo 1043 8mm Projector Movie Sound
Keystone Camera Co. Inc. D-857 Projector Slide / Filmstrip
Keystone Camera Co. Inc. C-26 Projector Slide / Filmstrip
Keystone Camera Co. Inc. CU-26 Projector Slide / Filmstrip
Keystone Camera Co. Inc. D-757 Projector Slide / Filmstrip
Keystone Camera Co. Inc. S-222 Projector Slide / Filmstrip
Keystone Camera Co. Inc. C-28 Projector Slide / Filmstrip
Keystone Camera Co. Inc. C-10 Projector Slide / Filmstrip
Keystone Camera Co. Inc. D-759 Projector Slide / Filmstrip
Keystone Camera Co. Inc. C-19 Projector Slide / Filmstrip
Keystone Camera Co. Inc. C-8 Projector Slide / Filmstrip
Keystone Camera Co. Inc. C-16 Projector Slide / Filmstrip
L.E. Davidson Picture Service Mightiest Midget Projector Slide / Filmstrip
Mansfield Industries B-40 Viewer/Editing
Mast Development 132
Mast Development Random Access 132 Projector Slide / Filmstrip
Mast Development RW Projector Slide / Filmstrip
McClure Projectors L Projector
McClure Projectors L (old model) Projector
Moviola Mfg. Co. LVR 16mm Viewer/Editing
Operadio Mfg. Co. Explainette Automatic 14A90 Projector Slide / Filmstrip
RCA PG-38 Projector
RCA PB-29 Projector
Singer Corporation Illustravox 150-M
Society for Visual Education (SVE) Miniature DK Projector Slide / Filmstrip
Society for Visual Education (SVE) Skyline Slidette Projector Slide / Filmstrip
Society for Visual Education (SVE) Picturol Q-3 Projector Slide / Filmstrip
Society for Visual Education (SVE) Tri-Purpose DD Projector Slide / Filmstrip
Society for Visual Education (SVE) Slidette Projector Slide / Filmstrip
Society for Visual Education (SVE) Skyline Miniature DK Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 331 Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 330 Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 332 Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 322 Projector Slide / Filmstrip
TM Visual Industries (TMC) Compact 150 Projector Slide / Filmstrip
Taylor Industries Stereo D-52
Victor Animatograph Magnascope
Victor Animatograph 3 16mm Movie Projector
Viewlex AP-1C Projector Slide / Filmstrip
Viewlex V-2 (120 Volts)
Viewlex AP-1 Projector Slide / Filmstrip
Viewlex AP-5 Projector Slide / Filmstrip
Viewlex AP-3 Projector Slide / Filmstrip
Viewlex AP-2C Projector Slide / Filmstrip
Viewlex AP-2 Projector Slide / Filmstrip
Webster Company Projecto-Sell AP-42 35mm Sound Movie Projector
Webster Company AP-26 PROJECTO-SELL
Webster Company Projecto-Sell AP-26 35mm Sound Movie Projector
Webster Company Projecto-Sell AP-32 35mm Sound Movie Projector
Webster Company Projecto-Sell AP-45 35mm Sound Movie Projector
Webster Company AP-42 PROJECTO-SELL
Webster Company AP-32 PROJECTO-SELL
Webster Company AP-45 PROJECTO-SELL

Sources

  • "Sylvania Photolamps." Catalog. GTE Sylvania, .
  • "GE Rolodex Projector Cross Reference." Rolodex. Photo Lamp Department General Electric Co. & Popular Photography Magazine, .
  • "Technical Manual: Photolamp Division." Manual. Sylvania Electric Products Inc., .
