CGD ANSI Code
CGD ANSI is a T8 lamp with a P15d30 base operating at 150 watts and 120 volts. It has a color temperature of 3075 Kelvin. It has a Clear finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CGD lamps.

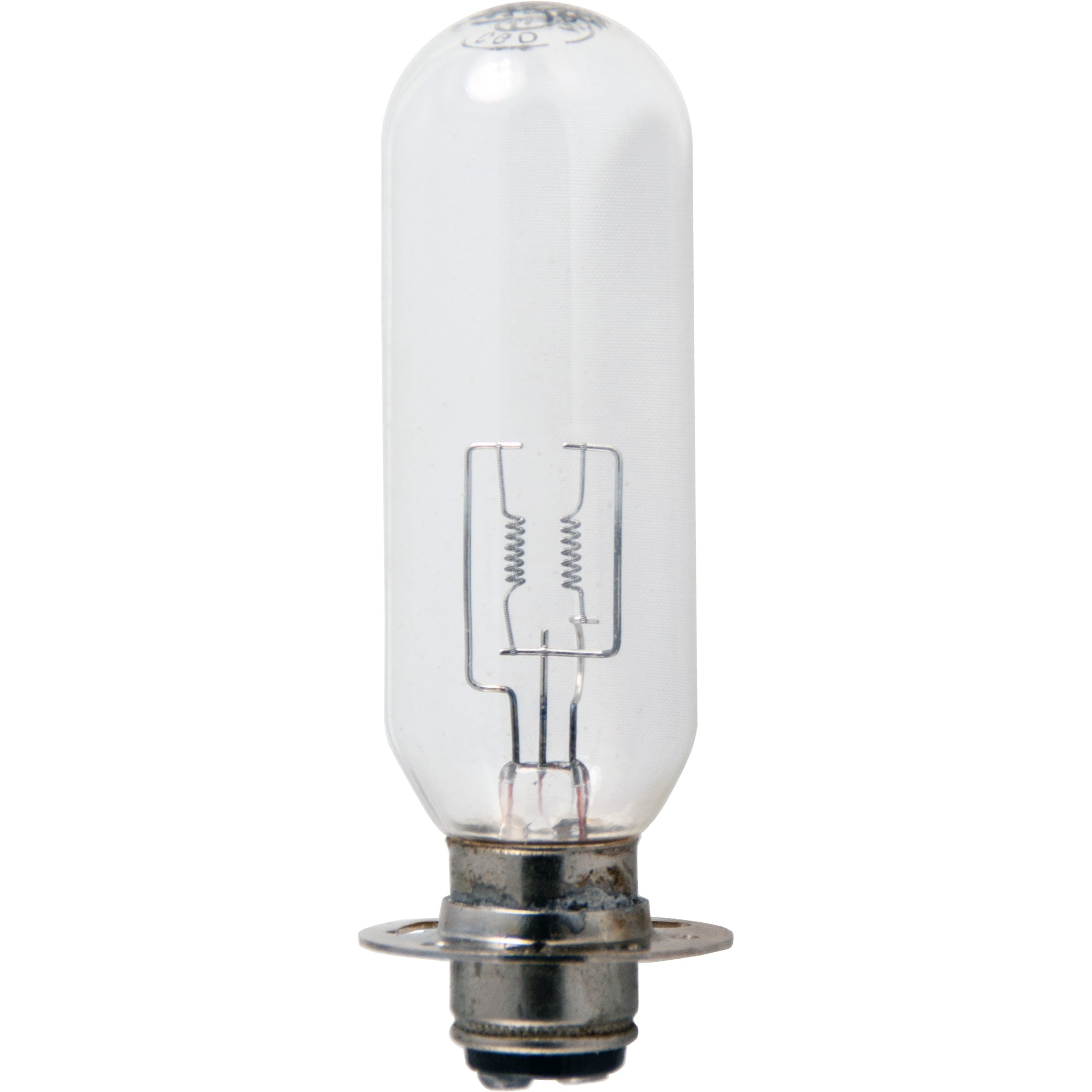

CGD Photograph |
 |
Electrical Specifications | |
| Amps | 1.25 |
|---|---|
| Volts | 120 |
| Watts | 150 |
Photometrics | |
| Color Temperature | 3075 |
|---|---|
| Light Center Length (LCL) | 1 1/4 |
| Lumens | 3500 |
Physical Characteristics | |
| Base | P15d30 |
|---|---|
| Bulb Shape | T8 |
| Filament | 2CC-8 |
| Finish | Clear |
| Max Overall Length (MOL) | 3 5/8 |
Operating Characteristics | |
| Burn Position | Base Down |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | CGD |
|---|---|
| Code Type | ANSI |
T8 Shape | |
 | |
| Diameter Designation | 8/8" |
|---|---|
| Glass Diameter | 1" (1.0") |
| Shape Code | T |
| Shape Classification | Tubular |
2CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| ANSI | CGD | ||
Equipment Used In | ||
| Brand | Model | Type |
| Eastman Kodak | Recordak JB | |
| Eastman Kodak | Recordak JC-1 | |
| Eastman Kodak | Recordak Junior JC | |
| Eastman Kodak | Recordak Junior JC-1 | |
| Eastman Kodak | Recordak JD | |
| Eastman Kodak | Recordak JA | |
| Eastman Kodak | Recordak Junior JD | |
| Eastman Kodak | Recordak JC | |
| Universal Camera Corp. | Univex PU8 | |
| Universal Camera Corp. | Univex | |
| Universal Camera Corp. | Univex PU300 | |
CGD may also be listed as: | |||
| 150T8-60 WESTINGHOUSE | 150T8-60-115 | 150T8-60-115V | 150T8-60-120 WESTINGHOUSE |
| 150T8-60-120V WESTINGHOUSE | 150T8-60-125 | 150T8-60-125V | 150T8/60 GENERAL-ELECTRIC |
| 150W/T8/60 | 150W/T8/P15D30/CL/120 VOLT | CGD ANSI | CGD ASA |
| CGD GENERAL-ELECTRIC | CGD INTERLIGHT | CGD WESTINGHOUSE | CGD-115 ANSI |
| CGD-115 ASA | CGD-115V ANSI | CGD-115V ASA | CGD-115V-150W ANSI |
| CGD-115V-150W ASA | CGD-120 ANSI | CGD-120 ASA | CGD-120V ANSI |
| CGD-120V ASA | CGD-120V-150W ANSI | CGD-120V-150W ASA | CGD-125 ANSI |
| CGD-125 ASA | CGD-125V ANSI | CGD-125V ASA | CGD-125V-150W ANSI |
| CGD-125V-150W ASA | PH/150T8/60 GENERAL-ELECTRIC | PH/150T8/60-120V GENERAL-ELECTRIC | PH150T8-60 WESTINGHOUSE |
| PH150T8-60-115 | PH150T8-60-115V | PH150T8-60-120 WESTINGHOUSE | PH150T8-60-120V WESTINGHOUSE |
| PH150T8-60-125 | PH150T8-60-125V | PH150WT8-60 WESTINGHOUSE | PH150WT8-60-115 |
| PH150WT8-60-115V | PH150WT8-60-120 WESTINGHOUSE | PH150WT8-60-120V WESTINGHOUSE | PH150WT8-60-125 |
| PH150WT8-60-125V | |||
