CGP ANSI Code
CGP ANSI is a T8 lamp with a BA15d base operating at 150 watts and 120 volts. It has a color temperature of 3075 Kelvin. It has a Obscured top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CGP lamps.

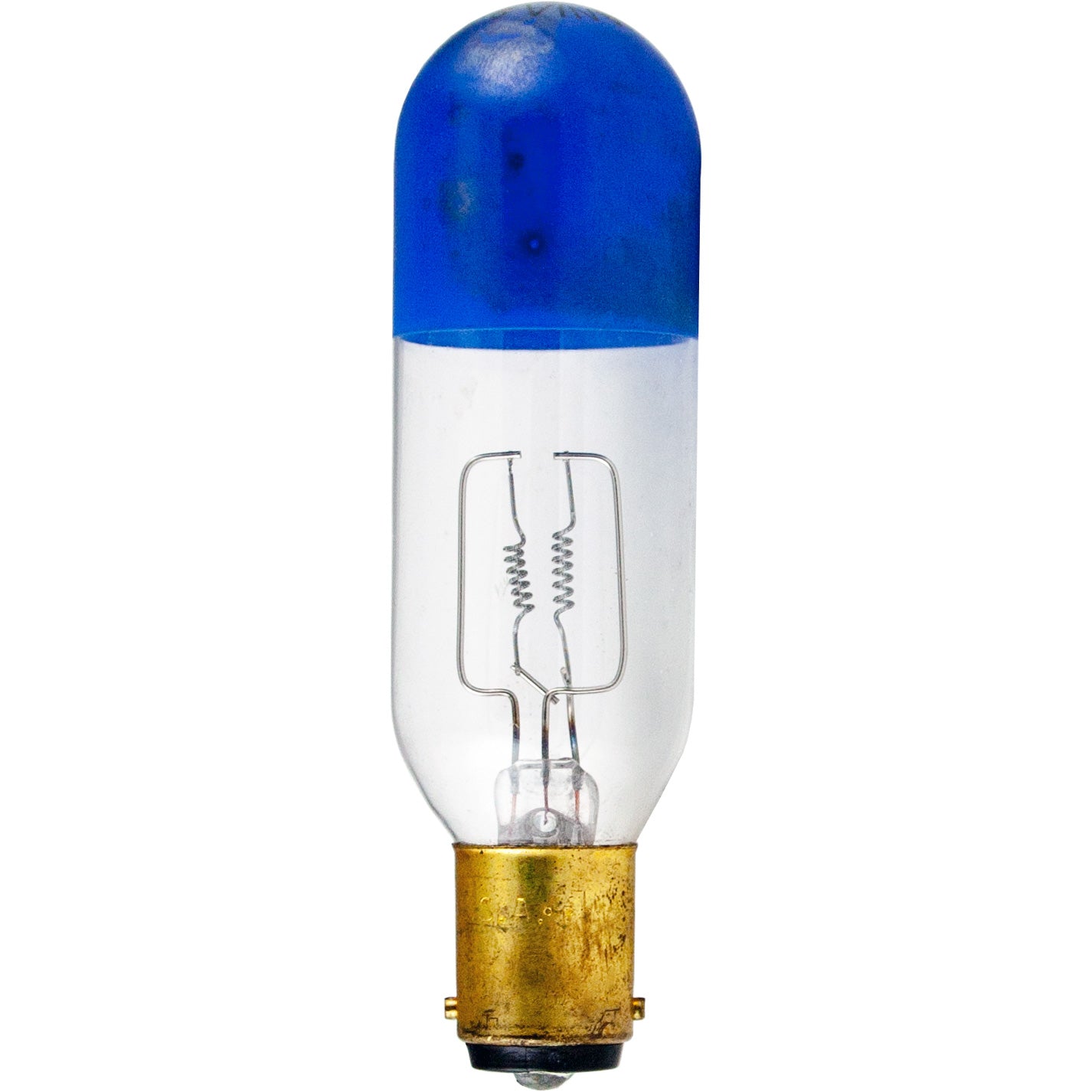

CGP Photograph |
 |
Electrical Specifications | |
| Amps | 1.25 |
|---|---|
| Volts | 120 |
| Watts | 150 |
Photometrics | |
| Candlepower | 280 |
|---|---|
| Color Temperature | 3075 |
| Light Center Length (LCL) | 1 3/8 |
| Lumens | 3500 |
Physical Characteristics | |
| Base | BA15d |
|---|---|
| Bulb Shape | T8 |
| Filament | 2CC-8 |
| Finish | Obscured top |
| Max Overall Length (MOL) | 3 5/8 |
Operating Characteristics | |
| Burn Position | VBD ± 30° |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | CGP |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
Substitution Notes | |
| Possible Substitution | CFK |
|---|---|
| Clear Top Variation | CFK |
| Possible Substitution | CGF |
| For 240V Use | CKS |
T8 Shape | |
 | |
| Diameter Designation | 8/8" |
|---|---|
| Glass Diameter | 1" (1.0") |
| Shape Code | T |
| Shape Classification | Tubular |
2CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
BA15d Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Norman Lamps | CGP | 150W, 120V | |
| Eiko | CGP (WIKO) | ||
| Microlites | 120-150-03 | ||
| Canimpex | 120-150-03 | ||
Equipment Used In | ||
| Brand | Model | Type |
| Davidson Optronics | All Star D 120 | |
| Excel Movie Products | Pekoscope D | 16mm Movie Projector |
| Helene Curtis Industries | Star D-120 | Medical |
| Radiant-Pathe | Pathe-Noris Reader | |
| Radiant-Pathe | Film Reader | |
| Viewlex | V-4 | |
| Viewlex | V-2 | |
| Viewlex | WR-2 | |
| Viewlex | WR-3 | |
| Viewlex | V-5 | |
| Viewlex | V-2C | |
| Viewlex | WR-4 | |
| Viewlex | V-4S | |
| Viewlex | WR-23 | |
| Viewlex | Superviewer V-3 | Viewer/Editing |
| Viewlex | V-3 | |
| Weimet Film Co. | Weimet A Deluxe | |
| Weimet Film Co. | Weimet A | |
Sources
- "Projection Lamp and Equipment Guide." Guide. GE Lighting, 1990.
- "Sylvania Photolamps." Catalog. GTE Sylvania, 1974.
- "GE Rolodex Projector Cross Reference." Rolodex. Photo Lamp Department General Electric Co. & Popular Photography Magazine, 1970s.
- "Technical Manual: Photolamp Division." Manual. Sylvania Electric Products Inc., 1954.
