CGW ANSI Code

CGW ANSI is a T8 lamp with a BA15s base operating at 200 watts and 120 volts. It has a color temperature of 3150 Kelvin. It has a Obscured top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CGW lamps.

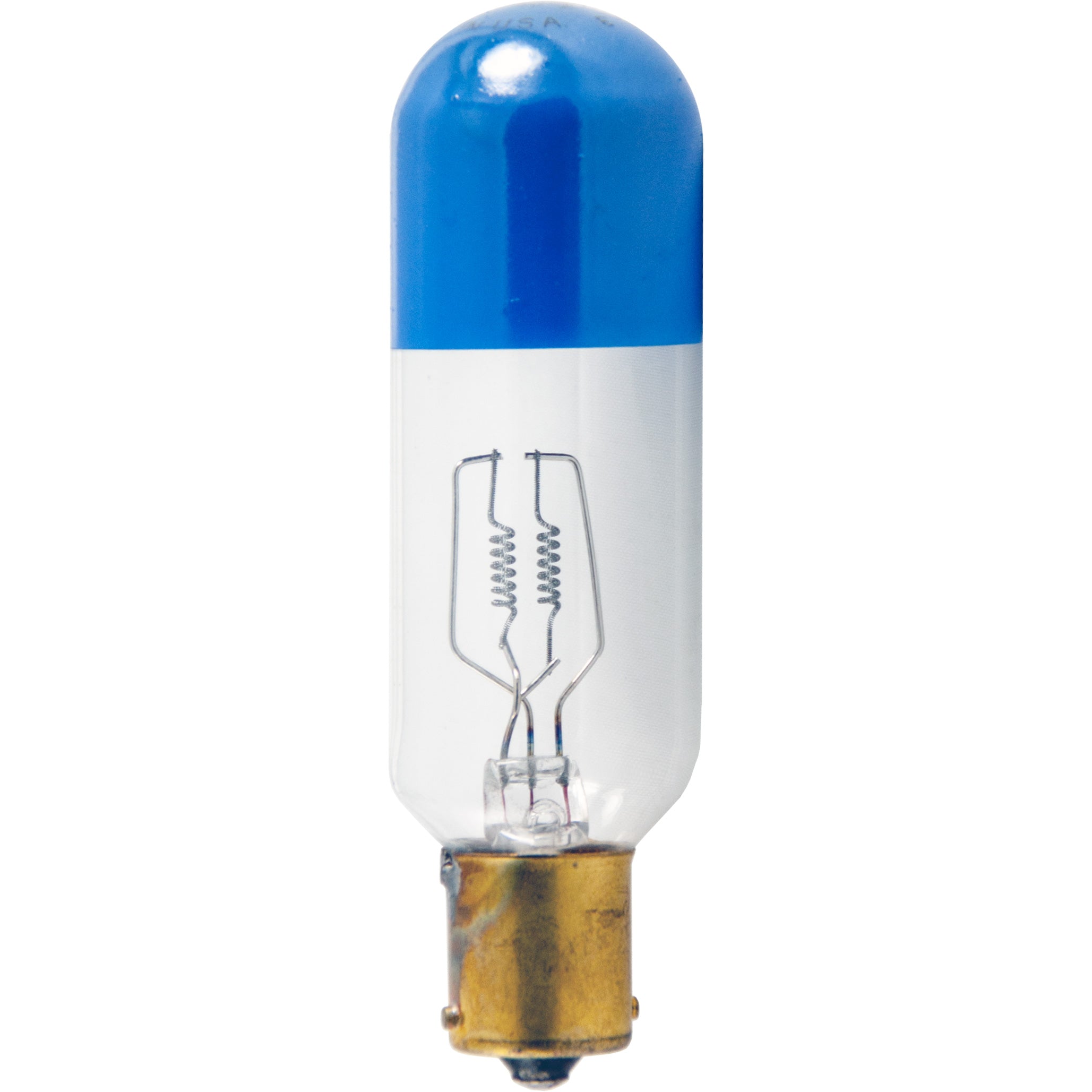

CGW Photograph

CGW

Electrical Specifications

Amps1.67
Volts120
Watts200

Photometrics

Candlepower350
Color Temperature3150
Light Center Length (LCL)1 3/8
Lumens4700

Physical Characteristics

BaseBA15s
Bulb ShapeT8
Filament2CC-8
FinishObscured top
Max Overall Length (MOL)3 5/8

Operating Characteristics

Burn PositionBase Down
Life Hours25

General Information
Lamp CodeCGW
Code TypeANSI
Specification ReferenceANSI-SR24F2002

Substitution Notes
Possible Substitution CGT
Clear Top Variation CGT
For 240V Use A1-26/240V/200W

T8 Shape

T8
Diameter Designation8/8"
Glass Diameter 1" (1.0")
Shape CodeT
Shape ClassificationTubular

2CC-8 Filament

2CC-8
Coil TypeCC - Coiled Coil

BA15s Base

BA15s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites115-200-04
Microlites120V-200-04
Canimpex115-200-04
Canimpex120V-200-04

Equipment Used In

BrandModelType
Argus PAB-200 Microfilm Reader
Argus PB-200 Projector Slide / Filmstrip
Argus PA-200 Microfilm Reader
Argus 300 35mm Projector
Argus PBB-200 Projector Slide / Filmstrip
Bell and Howell Filmstrip 215-G
Bell and Howell Headliner Standard Slide
Bell and Howell TDC Vivid Deluxe Duo RN
Bell and Howell TDC Vivid Standard A-2
Bell and Howell TDC Vivid Headliner Standard
Bell and Howell Standard A3
Bell and Howell Vivid Duo RN
Bell and Howell TDC Vivid Deluxe B
Bell and Howell TDC Filmstrip 204-G
Bell and Howell TDC Vivid Standard A-3
Bell and Howell TDC Filmstrip BGC
Bell and Howell Filmstrip 225-G
Bell and Howell Filmstrip 225
Bell and Howell Vivid Standard A2
Bell and Howell Filmstrip 204-G
Bell and Howell Filmstrip 315-G
Bell and Howell TDC Vivid Deluxe Duo
Bell and Howell Filmstrip 761-G
Bell and Howell Vivid Standard A3
Bell and Howell Vivid Headliner Standard
Bell and Howell Filmstrip BSC
Bell and Howell Filmstrip 761-A
Bell and Howell Headliner Standard
Bell and Howell Deluxe B
Bell and Howell Vivid Deluxe B
Bell and Howell Filmstrip 225-B
Brumberger 1314 ROCKET
Calvin Company Movie-Mite 62 Projector
Calvin Company Movie-Mite 52 Projector
Calvin Company Movie-Mite 42 Projector
Eastman Kodak Kodaslide Hilux 3
Eastman Kodak Hilux 2
Eastman Kodak Kodaslide Hilux 2
Eastman Kodak Hilux 3
GM Laboratories SP-203A SKAN
GM Laboratories SP-203A
GoldE Manufacturing Co. EZG-42
GoldE Manufacturing Co. Manumatic 300-P-1042 8mm Projector Movie Sound
GoldE Manufacturing Co. Manumatic EZG-42
GoldE Manufacturing Co. Cornet
GoldE Manufacturing Co. Manumatic 300-P-1043
GoldE Manufacturing Co. Manumatic 300-EZG-42
GoldE Manufacturing Co. Nu-Manumatic
GoldE Manufacturing Co. Air Flo 1043 8mm Projector Movie Sound
Harwald Company Movie Mite 42-52-62 Projector
Keystone Camera Co. Inc. D-857 Projector Slide / Filmstrip
Keystone Camera Co. Inc. C-26 Projector Slide / Filmstrip
Keystone Camera Co. Inc. CU-26 Projector Slide / Filmstrip
Keystone Camera Co. Inc. D-757 Projector Slide / Filmstrip
Keystone Camera Co. Inc. S-222 Projector Slide / Filmstrip
Keystone Camera Co. Inc. C-28 Projector Slide / Filmstrip
Keystone Camera Co. Inc. D-759 Projector Slide / Filmstrip
Keystone Camera Co. Inc. C-19 Projector Slide / Filmstrip
Keystone Camera Co. Inc. C-8 Projector Slide / Filmstrip
Keystone Camera Co. Inc. C-16 Projector Slide / Filmstrip
Keystone Camera Co. Inc. C-10 Projector Slide / Filmstrip
Mansfield Industries B-40 Viewer/Editing
Mast Development 132
Mast Development Random Access 132 Projector Slide / Filmstrip
Mast Development RW Projector Slide / Filmstrip
Society for Visual Education (SVE) Skyline 200-B Projector Slide / Filmstrip
Society for Visual Education (SVE) Skyline A Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 331 Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 330 Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 332 Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 322 Projector Slide / Filmstrip
Taylor Industries Stereo D-52
Victor Animatograph Magnascope
Victor Animatograph 3 16mm Movie Projector

CGW may also be listed as:
00810 EIKO00810 UPC00810 WIKO031293008107 EIKO
200-B-1 SYLVANIA200T8-113 SYLVANIA200T8-113 WESTINGHOUSE200T8-113-120 SYLVANIA
200T8-113-120V SYLVANIA200T8/113 GENERAL-ELECTRIC200W/T8/113200WATT-B-1 SYLVANIA
200WATT-T8-113 SYLVANIA200WATT-T8-113 WESTINGHOUSE200WATT-T8-113-120 VOLT SYLVANIA3129300810 WIKO
58-837158.8371 OSRAM58.8371-120 OSRAM58.8371-120 VOLT OSRAM
58.8371-120V OSRAM6166-N PHILIPS6166-N-1106166-N-110V
6166-N-120 PHILIPS6166-N-120 VOLT PHILIPS6166-N-CGT PHILIPS6166-N-CGW PHILIPS
6166N-05 PHILIPS6166N-120V PHILIPS6166N-99 PHILIPS6166N05-120V PHILIPS
6166N99-120V PHILIPS6166NA1-26 PHILIPSA1-26 ATLASA1-26 LIF
A1-26 THORNA1-26-120V-200W-BA15S LIFA1-26/120V LIFBW-CGW-CGT
CGW ANSICGW ASACGW BULB-DIRECTCGW GENERAL-ELECTRIC
CGW INTERLIGHTCGW LAMPTECHCGW MICROLAMPCGW SYLVANIA
CGW WESTINGHOUSECGW WIKOCGW-110 ANSICGW-110 ASA
CGW-110V ANSICGW-110V ASACGW-110V-200W ANSICGW-110V-200W ASA
CGW-115 ANSICGW-115 ASACGW-115V ANSICGW-115V ASA
CGW-115V-200W ANSICGW-115V-200W ASACGW-120 ANSICGW-120 ASA
CGW-120 VOLT ANSICGW-120 VOLT ASACGW-120V ANSICGW-120V ASA
CGW-120V-200WCGW-120V-200W ANSICGW-120V-200W ASACGW-120V-200W-BA15S-T8-2CC8-OBSCURED-TOP-4700L-3150K-25H-BD-3-5/8MOL-1-3/8LCL-I-PROJECTION-CLEAR-BULB-LUMENS-MODERATE
CGW-120V/120V/200W/BA15S ANSICGW-CGT ANSICGW-CGT ASACGW-CGT EIKO
CGW-CGT WIKOCGW-CGT/PROJECTION-LAMP LAMPTECHCGW/120VCGW/120V/200W/BA15S ANSI
CGW/125V ANSICGW/125V GENERAL-ELECTRICCGW/125V/200W ANSICGW/CGT INTERLIGHT
CGW/CGT LAMPTECHCGW/CGT MICROLAMPCGW/CGT SYLVANIACGW/CGT/125V GENERAL-ELECTRIC
CGW/T8-120V-200W-SC-BAY LAMPTECHI/120V/200W/BA15S/T25MM/2CC8/35MMLCL/4400L/90MMMOL/OT/25H/6166N-120V PHILIPSI/120V/200W/BA15S/T8/2CC8/35MMLCL/4400L/90MMMOL/OT/25H/6166N-120V PHILIPSI/120V/200W/BA15S/T8/2CC8/35MMLCL/OT/25H/6166N-120V PHILIPS
I/120V/200W/BA15S/T8/2CC8/OT/25HI/120V/200W/BA15S/T8/2CC8/OT/25H/CGW-120VI/120V/200W/BA15S/T8/OT/25HI/120V/200W/BA15S/T8/OT/25H/CGW
I/120V/200W/BA15S/T8/OT/25H/CGW-120VI/120V/200W/BA15S/T9/CC13/OT/25H/A1-26-120V-200W-BA15S LIFPH-200WATT-T8-113 WESTINGHOUSEPH-200WATT-T8-113-120 VOLT WESTINGHOUSE
PH/200T8/113 GENERAL-ELECTRICPH/200W/T8/113PH200T8-113 WESTINGHOUSEPH200T8-113-110 WESTINGHOUSE
PH200T8-113-110V WESTINGHOUSEPH200T8-113-115 WESTINGHOUSEPH200T8-113-115V WESTINGHOUSEPH200T8-113-120 WESTINGHOUSE
PH200T8-113-120V WESTINGHOUSEPH200WT8-113 WESTINGHOUSEPH200WT8-113-110 WESTINGHOUSEPH200WT8-113-110V WESTINGHOUSE
PH200WT8-113-115 WESTINGHOUSEPH200WT8-113-115V WESTINGHOUSEPH200WT8-113-120 WESTINGHOUSEPH200WT8-113-120V WESTINGHOUSE
SP200T8BA15S2CC8OT120VSP200T8BA15S2CC8OT120V-CGW-120VSP200T8BA15SOT120VSP200T8BA15SOT120V-CGW-120V
SP200T8SC2CC8OT120VSP200T8SC2CC8OT120V-CGW-120VSP200T8SCOT120VSP200T8SCOT120V-CGW-120V
