CHY ANSI Code

CHY ANSI is a T8 lamp with a BA15d base operating at 50 watts and 230 volts. It has a color temperature of 2550 Kelvin. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CHY lamps.

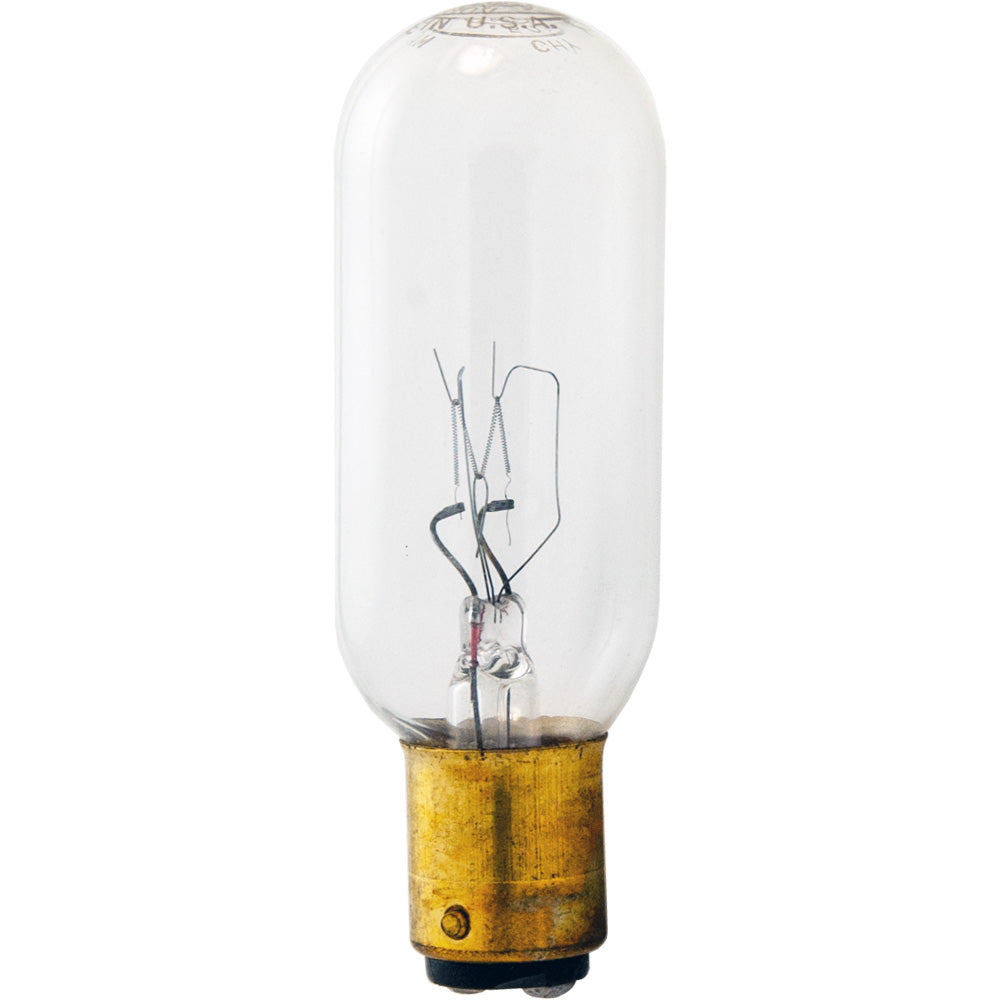

CHY Photograph

CHY

Electrical Specifications

Amps0.217
Volts230
Watts50

Photometrics

Candlepower52
Color Temperature2550
Light Center Length (LCL)1 3/8
Lumens650

Physical Characteristics

BaseBA15d
Bulb ShapeT8
FilamentCC-13
FinishClear
Max Overall Length (MOL)3 1/8

Operating Characteristics

Burn PositionVBD
Life Hours50

General Information
Lamp CodeCHY
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T8 Shape

T8
Diameter Designation8/8"
Glass Diameter 1" (1.0")
Shape CodeT
Shape ClassificationTubular

CC-13 Filament

CC-13
Coil TypeCC - Coiled Coil

BA15d Base

BA15d

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites230-050-03Y
Canimpex230-050-03Y

Equipment Used In

BrandModelType
AO Reichert Project-O-Chart 1215 (230V)
AO Reichert Project-O-Chart 11082 (230V)
AO Reichert Project-O-Chart 1217 (230V)
Hudson Photographic Industries (HPI) Mini Projector 348 Projector
Hudson Photographic Industries (HPI) Mini Projector 347 Projector
