CLC ANSI Code
CLC ANSI is a T8.5 lamp with a E26 base operating at 100 watts and 120 volts. It has a Clear finish. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CLC lamps.

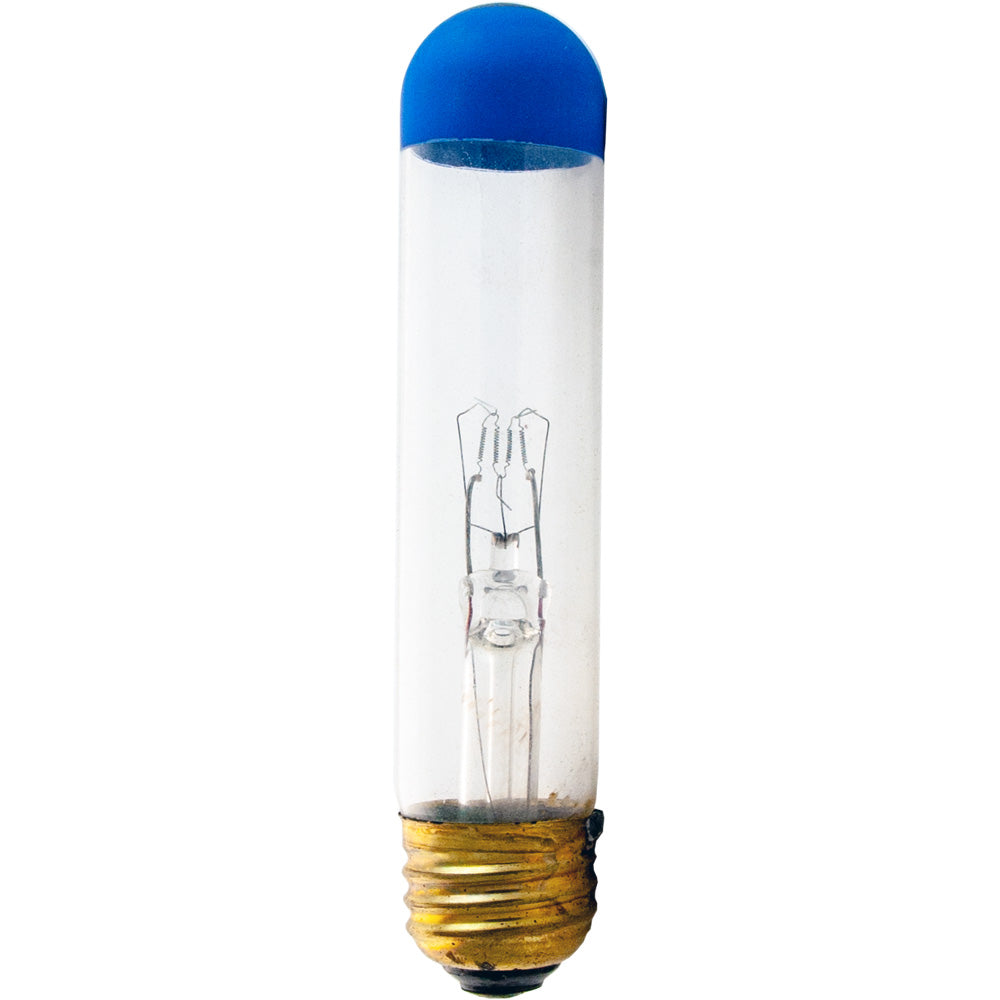

CLC Photograph |
 |
Electrical Specifications | |
| Volts | 120 |
|---|---|
| Watts | 100 |
Photometrics | |
| Beam Spread | Omnidirectional |
|---|---|
| Light Center Length (LCL) | 75 mm |
Physical Characteristics | |
| Base | E26 |
|---|---|
| Bulb Shape | T8.5 |
| Filament | CC-13 |
| Finish | Clear |
| Max Overall Length (MOL) | 5.25" |
Operating Characteristics | |
| Burn Position | Base Down |
|---|---|
General Information | |
| Lamp Code | CLC |
|---|---|
| Code Type | ANSI |
| Related Categories | Halogen Capsule Screw Base |
T8.5 Shape | |
 | |
| Diameter Designation | 8.5/8" |
|---|---|
| Glass Diameter | 1 1/16" (1.0625") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-13 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
E26 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Westinghouse | CLC | ||
