CLD ANSI Code
CLD ANSI is a T8.5 lamp with a P28s base operating at 100 watts and 120 volts. It has a Clear finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CLD lamps.

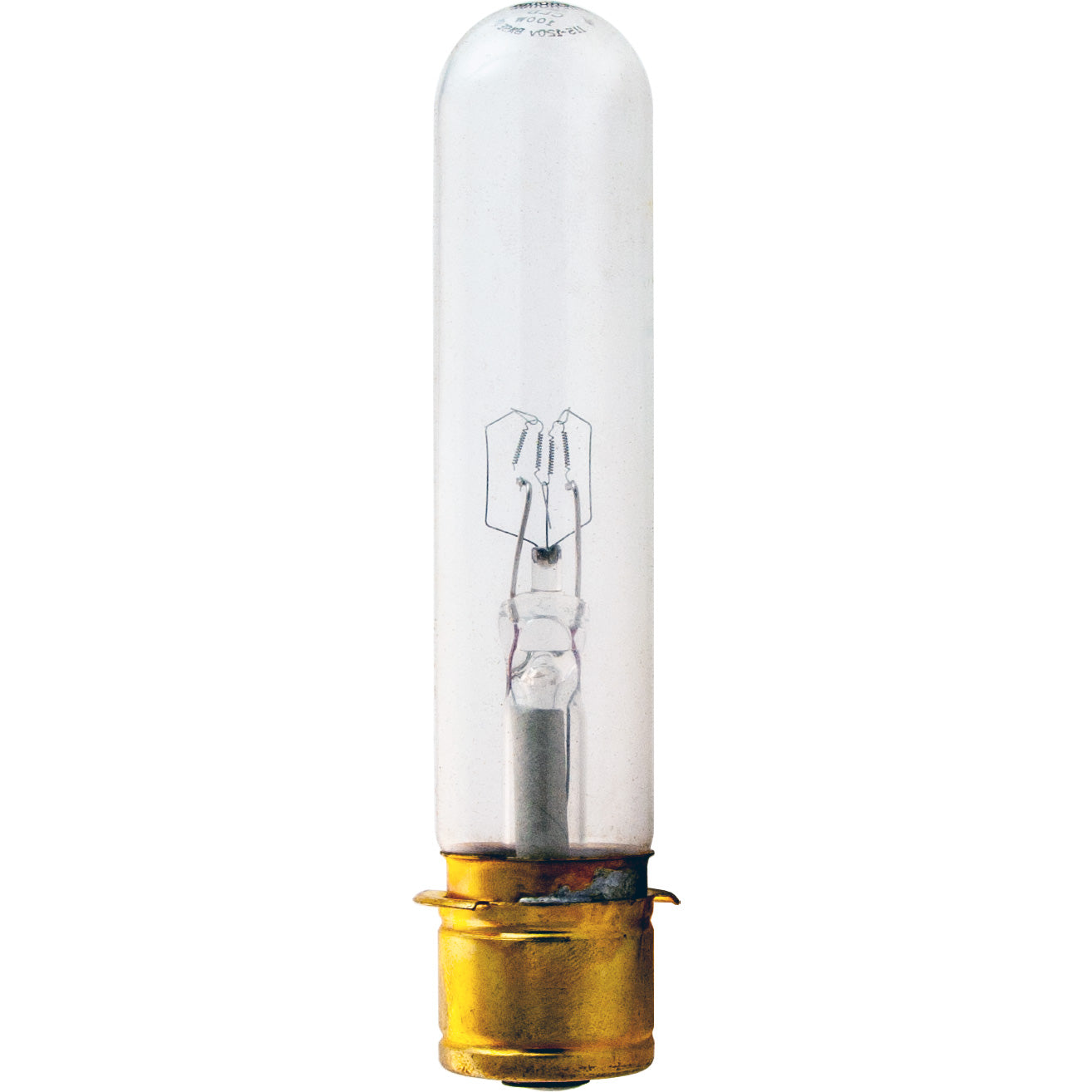

CLD Photograph |
 |
Electrical Specifications | |
| Volts | 120 |
|---|---|
| Watts | 100 |
Photometrics | |
| Light Center Length (LCL) | 2 3/16 |
|---|---|
| Lumens | 1920 |
Physical Characteristics | |
| Base | P28s |
|---|---|
| Bulb Shape | T8.5 |
| Filament | CC-13 |
| Finish | Clear |
| Max Overall Length (MOL) | 5 5/8 |
Operating Characteristics | |
| Burn Position | VBD |
|---|---|
| Life Hours | 50 |
General Information | |
| Lamp Code | CLD |
|---|---|
| Code Type | ANSI |
T8.5 Shape | |
 | |
| Diameter Designation | 8.5/8" |
|---|---|
| Glass Diameter | 1 1/16" (1.0625") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-13 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
P28s Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| ANSI | CLD | ||
