CLX ANSI Code

CLX ANSI is a T8.5 lamp with a BA15d base operating at 300 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Obscured top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CLX lamps.

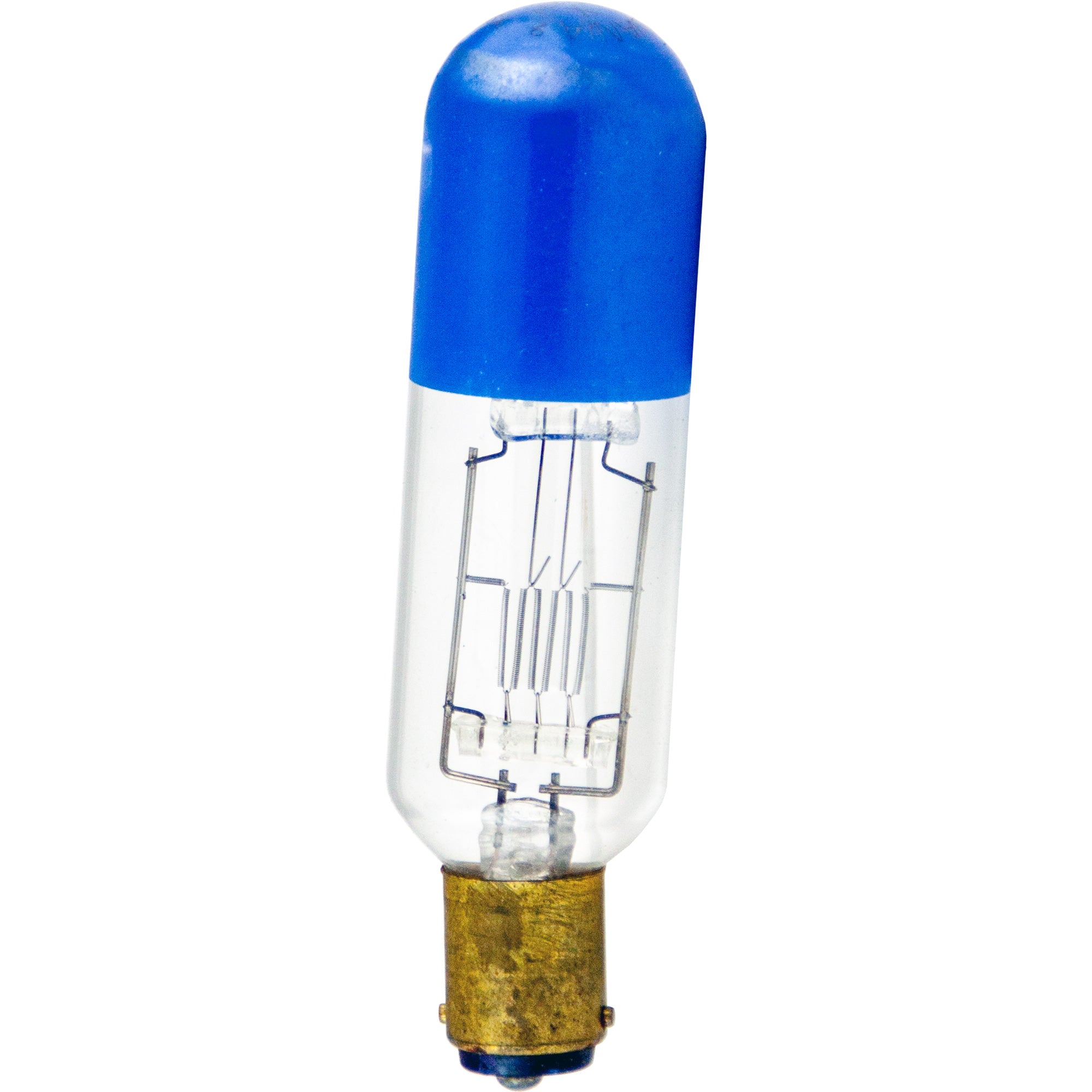

CLX Photograph

CLX

Electrical Specifications

Amps2.5
Volts120
Watts300

Photometrics

Candlepower600
Color Temperature3200
Light Center Length (LCL)1 3/8
Lumens7600

Physical Characteristics

BaseBA15d
Bulb ShapeT8.5
FilamentC-13
FinishObscured top
Max Overall Length (MOL)4 1/8

Operating Characteristics

Burn PositionVBD
Life Hours25

General Information
Lamp CodeCLX
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T8.5 Shape

T8.5
Diameter Designation8.5/8"
Glass Diameter 1 1/16" (1.0625")
Shape CodeT
Shape ClassificationTubular

C-13 Filament

C-13
Coil TypeC - Single Coil

BA15d Base

BA15d

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsCLX300W, 120-125V
Microlites120-300-03
Canimpex120-300-03

Equipment Used In

BrandModelType
Brumberger 1405 FLEETWOOD
Brumberger 1363 AUTOMAT
Brumberger 1307 BEL-AIR
Brumberger 1422 RIVIERA
Brumberger 1405 VERSATILE
Viewlex V-22 Viewer/Editing
Viewlex V-44
Viewlex Project-O-Matic Viewer/Editing
Viewlex Project-O-Matic 300 Viewer/Editing
Viewlex WRA-22
Viewlex WRA-22 Sight
Viewlex WR-22C
Viewlex VT-22
Viewlex VTA-22R Viewer/Editing
Viewlex V-44S
Viewlex V-53
Viewlex WR-33
Viewlex V-22C Viewer/Editing
Viewlex WRA-22 Sound
Viewlex V-33

CLX may also be listed as:
00840 EIKO00840 UPC00840 WIKO031293008404 EIKO
1000138 BLV1000138 USHIO11988 STANDARDPRO300-8.5-12
300-D-3 SYLVANIA300T8-1/2-120V PM-LAMP300T8-1/2/12300T8.5-120V PM-LAMP
300T8.5/12 GENERAL-ELECTRIC300T81/2/12 GENERAL-ELECTRIC300W/T8.5/12300WATT-D-3 SYLVANIA
300WATT-T8-BA15D-120 VOLT300WATT-T8-BA15D-CLEAR-120 VOLT300WATT-T8.5-12 SYLVANIA300WATT-T8.5-12 WESTINGHOUSE
300WATT-T8.5-12-120 VOLT SYLVANIA300WATT-T8.5-BA15D-120 VOLT300WATT-T8.5-BA15D-CLEAR-120 VOLT3129300840 WIKO
6954911988869549119888UPC STANDARDPRO7212-W PHILIPSBA15D-300W-CLX/CMB-120V-T27MM-104.8MMMOL-34.9MMLCL-C-13-7600L-3200K-25H-BD-1000138 BLV
BA15D-300W-CLX/CMB-120V-T27MM-104.8MMMOL-34.9MMLCL-C-13-7600L-3200K-25H-BD-1000138 USHIOCLX ANSICLX ASACLX GENERAL-ELECTRIC
CLX INTERLIGHTCLX LAMPTECHCLX MICROLAMPCLX SYLVANIA
CLX USHIOCLX WESTINGHOUSECLX WIKOCLX-120 VOLT ANSI
CLX-120 VOLT ASACLX-120V ANSICLX-120V ASACLX-120V-300W
CLX-120V-300W ANSICLX-120V-300W ASACLX-120V-300W-BA15D-T8-C13-OBSCURED-TOP-7600L-3200K-25H-BD-4-1/8MOL-1-3/8LCL-I-SLIDE-PROJECTOR-CLEAR-BULB-LUMENS-MODERATECLX-120V/120V/300W/BA15D ANSI
CLX-CMB ANSICLX-CMB ASACLX-CMB EIKOCLX-CMB SYLVANIA
CLX-CMB WESTINGHOUSECLX-CMB WIKOCLX/120VCLX/120V/300W/BA15D ANSI
CLX/CMB BULB-DIRECTCLX/CMB GENERAL-ELECTRICCLX/CMB INTERLIGHTCLX/CMB LITE-SOURCE
CLX/CMB MICROLAMPCLX/CMB STANDARDPROCLX/CMB-120V-T27MM-104.8MMMOL-34.9MMLCL-C-13-7600L-3200K-25H-BD-1000138 BLVCLX/CMB-120V-T27MM-104.8MMMOL-34.9MMLCL-C-13-7600L-3200K-25H-BD-1000138 USHIO
CLX/CMB-GE-300W/125V-PROJECTOR-BULB LITE-SOURCECLX/CMB/300W/125VCLX/T8-1-2-120V-300W-DC-BAY LAMPTECHI/120V/300W/BA15D/T8.5/2CC8/OT/25H
I/120V/300W/BA15D/T8.5/C13/OT/25HI/120V/300W/BA15D/T8.5/C13/OT/25H/CLX-120VI/120V/300W/BA15D/T8.5/OT/25H/CLXI/120V/300W/BA15D/T8.5/OT/25H/CLX-120V
I/120V/300W/BA15D/T8.5/OT/PHOTOKP-8.5-BA15D KONDOKP-8.5-BA15D-120 VOLT KONDOKP-8.5-BA15D-120 VOLT-300WATT KONDO
PH-300WATT-T8-BA15D-120 VOLTPH-300WATT-T8-BA15D-CLEAR-120 VOLTPH-300WATT-T8.5-12 GENERAL-ELECTRICPH-300WATT-T8.5-12 WESTINGHOUSE
PH-300WATT-T8.5-12-120 VOLT WESTINGHOUSEPH-300WATT-T8.5-BA15D-120 VOLTPH-300WATT-T8.5-BA15D-CLEAR-120 VOLTPH/300T8.5/12 GENERAL-ELECTRIC
PH/300T81/2/12 GENERAL-ELECTRICPH/300W/T8.5/12SP300T8.5BA15DC13OT120VSP300T8.5BA15DC13OT120V-CLX-120V
SP300T8.5BA15DOT120VSP300T8.5BA15DOT120V-CLX-120VSP300T8.5DC2CC8OT120VSP300T8.5DCC13OT120V
SP300T8.5DCC13OT120V-CLXSP300T8.5DCC13OT120V-CLX-120VSP300T8.5DCOT120VSP300T8.5DCOT120V-CLX
SP300T8.5DCOT120V-CLX-120VT8.5/300W120-125VBA15D/CLX/CMB STANDARDPRO
