CMA ANSI Code
CMA ANSI is a T8 lamp with a P30d base operating at 300 watts . It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CMA lamps.

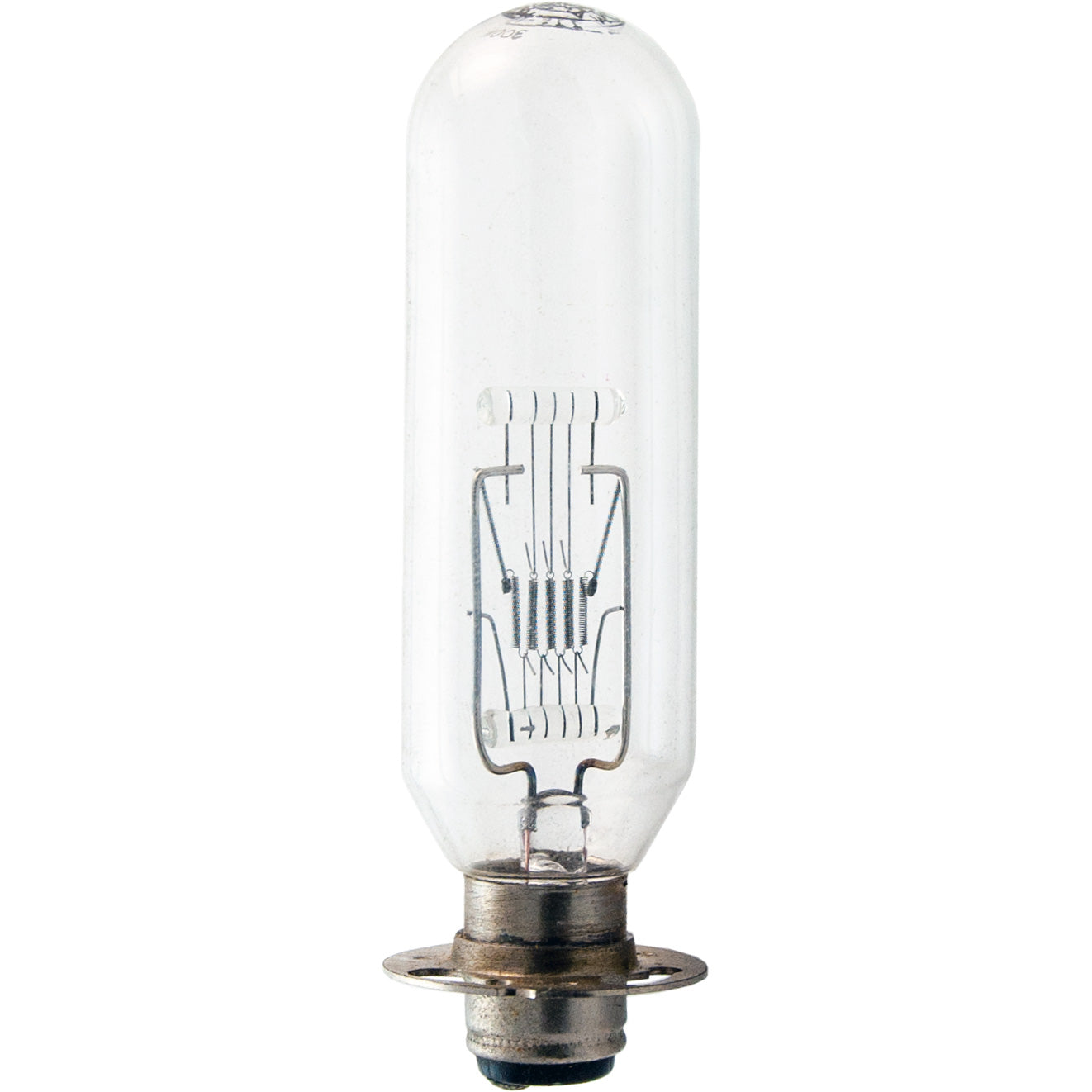

CMA Photograph |
 |
Electrical Specifications | |
| Watts | 300 |
|---|---|
Photometrics | |
| Color Temperature | 3200 |
|---|---|
| Light Center Length (LCL) | 1 1/4 |
| Lumens | 7600 |
Physical Characteristics | |
| Base | P30d |
|---|---|
| Bulb Shape | T8 |
| Filament | C-13D |
| Finish | Clear |
| Max Overall Length (MOL) | 4 5/8 |
Operating Characteristics | |
| Burn Position | Base Down |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | CMA |
|---|---|
| Code Type | ANSI |
T8 Shape | |
 | |
| Diameter Designation | 8/8" |
|---|---|
| Glass Diameter | 1" (1.0") |
| Shape Code | T |
| Shape Classification | Tubular |
C-13D Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| ANSI | CMA | ||
