CMV ANSI Code

CMV ANSI is a T8.5 lamp with a BA15s base operating at 300 watts and 120 volts. It has a color temperature of 3100 Kelvin. It has a Obscured top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CMV lamps.

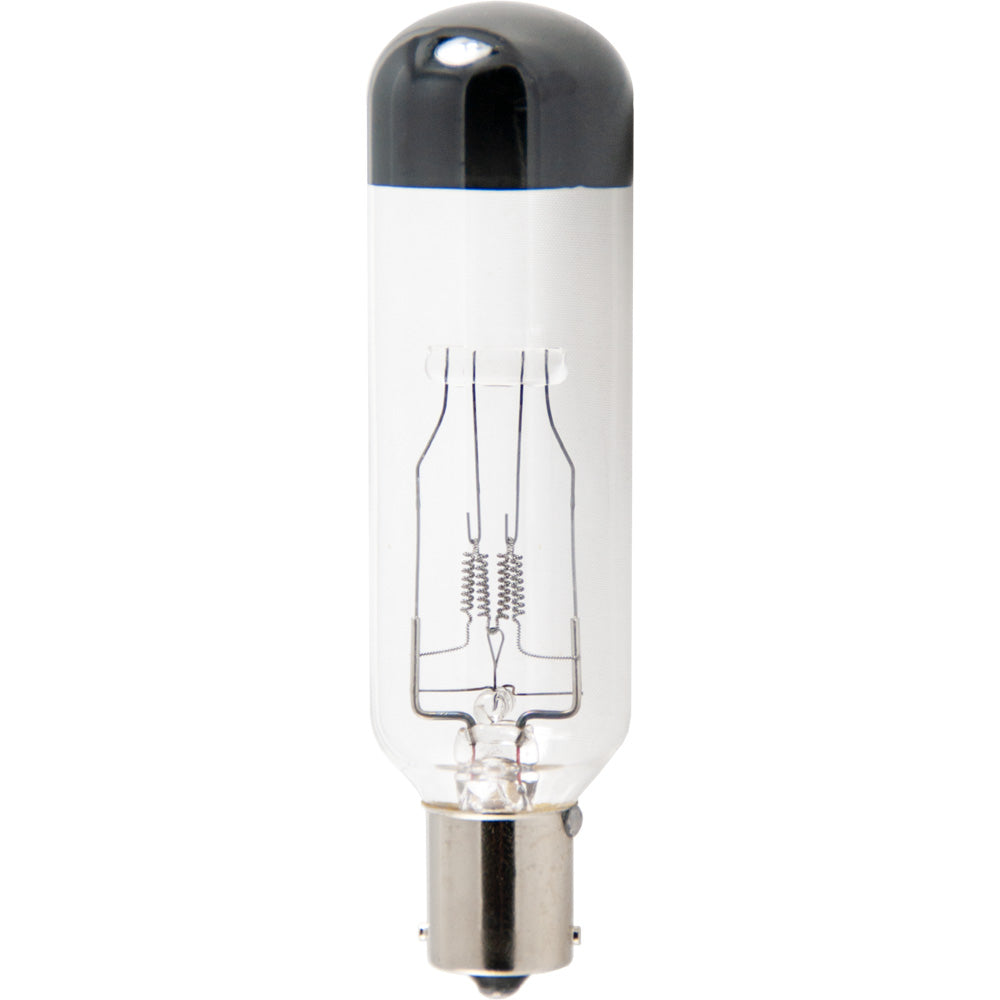

CMV Photograph

CMV

Electrical Specifications

Amps2.5
Volts120
Watts300

Photometrics

Candlepower580
Color Temperature3100
Light Center Length (LCL)1 3/8
Lumens7300

Physical Characteristics

BaseBA15s
Bulb ShapeT8.5
FilamentC-13D
FinishObscured top
Max Overall Length (MOL)4 1/8

Operating Characteristics

Burn PositionBase Down
Life Hours25

General Information
Lamp CodeCMV
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T8.5 Shape

T8.5
Diameter Designation8.5/8"
Glass Diameter 1 1/16" (1.0625")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

BA15s Base

BA15s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites115-300-04V
Microlites120-300-04V
Microlites125-300-04V
Canimpex115-300-04V
Canimpex120-300-04V
Canimpex125-300-04V

Equipment Used In

BrandModelType
AO Reichert Skat
AO Reichert Executive 300
AO Reichert AO-300
Agfa-Gevaert Diamator S-300
Agfa-Gevaert Diamator S
Argus 300 35mm Projector
Bell and Howell Vivid Deluxe 304-G
Bell and Howell TDC Filmstrip MS
Bell and Howell TDC Headliner 425-G-4
Bell and Howell Project-Or-View Stereo 732-G
Bell and Howell Vivid Deluxe 732-G
Bell and Howell Vivid Streamliner Deluxe 351-G-2
Bell and Howell Headliner 35
Bell and Howell Specialist 300
Bell and Howell Filmstrip MS
Bell and Howell Streamliner Duo 300
Bell and Howell TDC Vivid Deluxe 100-G
Bell and Howell Specialist 224-G
Bell and Howell TDC Filmstrip 320
Bell and Howell Filmstrip 304-G
Bell and Howell Vivid Streamliner 351G2
Bell and Howell Show Pak 300
Bell and Howell TDC Specialist 224-G
Bell and Howell TDC Filmstrip DSC
Bell and Howell Vivid Show Pak 300
Bell and Howell Vivid Deluxe 251-G-2
Bell and Howell Vivid Deluxe D Series 3
Bell and Howell Vivid Deluxe 320-G
Bell and Howell Vivid Mainliner Deluxe 300
Bell and Howell Headliner 303
Bell and Howell Streamliner 351-G-2
Bell and Howell Deluxe 304-G
Bell and Howell TDC Headliner 303
Bell and Howell Vivid Deluxe 773-G
Bell and Howell Vivid Deluxe 340-G
Bell and Howell Vivid Duo 300
Bell and Howell Vivid Deluxe 123-G
Bell and Howell Vivid Deluxe 325-G
Bell and Howell Filmstrip DSC
Bell and Howell Vivid 100-G
Bell and Howell Headliner Standard Slide
Bell and Howell Vivid Deluxe Stereo D-3
Bell and Howell Vivid Mainliner 300
Bell and Howell Vivid Deluxe 425-G
Bell and Howell TDC Vivid Deluxe 773-G
Bell and Howell Deluxe 732-G
Bell and Howell Mainliner 300
Bell and Howell Headliner 425-G4
Bell and Howell TDC Project-Or-View Stereo 732-G
Bell and Howell Headliner 325-G3
Bell and Howell Deluxe 300
Bell and Howell Streamliner 300
Bell and Howell Vivid 773-G
Bell and Howell TDC Vivid Show Pak 300
Bell and Howell TDC Specialist 300
Bell and Howell Vivid Deluxe D-3
Bell and Howell TDC Headliner 325-G-3
Bell and Howell Filmstrip 320
Bell and Howell Vivid Deluxe 415-G
Bell and Howell TDC Headliner 35
Bell and Howell TDC Filmstrip 304-G
Brumberger 1363 AUTOMAT
Brumberger 1405 VERSATILE
Brumberger 1405 FLEETWOOD
Brumberger 1422 RIVIERA
Brumberger 1307 BEL-AIR
Brumberger 1503
Busch Film & Equipment Cinesalesman 5
Calvin Company Movie-Mite 63-LM Projector
Calvin Company Movie-Mite 63-L Projector
Calvin Company Movie-Mite 16mm Projector
Calvin Company Movie-Mite Supreme C-55 Projector
Calvin Company Movie-Mate CV-4 Projector
Calvin Company Movie-Mite 63-LMB Projector
Calvin Company Movie-Mite Supreme S-53 Projector
Calvin Company Movie-Mate CV-1 Projector
Calvin Company Movie-Mite C-400 Projector
Calvin Company Movie-Mate CV-2 Projector
Calvin Company Movie-Mite Supreme LMB Projector
Calvin Company Movie-Mate CV-3 Projector
Calvin Company Movie-Mite 63-LD Projector
Dukane Micromatic 14A390 Projector
Dukane Micromatic 14A390B1 Projector
Dukane Automatic 14A190 Projector
Dukane Micromatic 14A290A Projector
Dukane Micromatic II 14A335 Projector
Dukane Micromatic 14A190A Projector
Dukane Manual Matic 14A335 Projector
Dukane Micromatic 14A390B Projector
Dukane Remote Control 576-47 Projector
Dukane Micromatic 14A290B1 Projector
Dukane Micromatic 14A290B Projector
Dukane Micromatic 14A190 Projector
Dukane Micromatic 14A290C Projector
Dukane Micromatic C14A390 Projector
Dukane Micromatic 14A290 Projector
Eastman Kodak Brightlight Modules Hilux 3
Eastman Kodak Signet 300 A
Eastman Kodak Kodaslide Hilux 2
Eastman Kodak 300 Model A
Eastman Kodak Filmstrip 2-F
Eastman Kodak Brownie 300
Eastman Kodak Brightlight Modules Signet 300 Filmstrip Model 2-F
Eastman Kodak Brightlight Modules Hilux 2
Eastman Kodak Kodaslide Hilux 3
Eastman Kodak Hilux 2
Eastman Kodak Signet 300 2-F
Eastman Kodak Brightlight Modules Signet 300 Model A
Eastman Kodak Hilux 3
Eastman Kodak 300 Model 2F
Elmo Cromatic 300
Elmo Reflex C-71
Elmo Filmatic C-59
GM Laboratories SP-300C
GM Laboratories SP-300X
GM Laboratories SP-300
GM Laboratories SP-300 SKAN
General Photographic Supply Aldis Star 300
GoldE Manufacturing Co. Reflex 349
Harwald Company Movie Mate Projector
Harwald Company Movie Mite 63-LBM Projector
Harwald Company MM Supreme S-53 Projector
Harwald Company Movie Mite 63-L Projector
Harwald Company Movie Mite 63-LM Projector
Harwald Company Movie Mite Supreme Projector
Harwald Company C-55 Projector
Honeywell Heiland Filmatic C-59
Honeywell Heiland Reflex C-71
Honeywell Heiland Cromatic 300
Kalart Victor Moviematic TM-3
Kalart Victor Moviematic STM-3
Kalart Victor Moviematic TM-3-C
Kalart Victor Moviematic STM-3-C
Keystone Camera Co. Inc. 300 Projector Slide / Filmstrip
Keystone Camera Co. Inc. R-37 Projector Slide / Filmstrip
Keystone Camera Co. Inc. M-8 Projector Slide / Filmstrip
Keystone Camera Co. Inc. J-8 Projector Slide / Filmstrip
Keystone Camera Co. Inc. CC-8 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 310 Projector Slide / Filmstrip
Keystone Camera Co. Inc. CC-16 Projector Slide / Filmstrip
Keystone Camera Co. Inc. C-18 Projector Slide / Filmstrip
Mansfield Industries B-50 Viewer/Editing
Mansfield Industries Midway 8mm Projector Movie
Naren Industries Polarama N-301-P Graphic Arts
Naren Industries Polarama N-301 Graphic Arts
Revere Camera Co. 553 Projector Slide / Filmstrip
Revere Camera Co. 503 Projector Slide / Filmstrip
Singer Corporation Illustravox 300-RM
Singer Corporation Illustravox 300-RE
Singer Corporation Illustravox 300-A
Society for Visual Education (SVE) Schoolmaster 300 Projector Slide / Filmstrip
Spiratone Sight-n-Sound
Standard Projector & Equipment 300 Projector Opaque / Transparency
Technical Service Inc. (TSI) Moviematic TM-3C Projector
Technical Service Inc. (TSI) Moviematic STM-3C Projector
Technical Service Inc. (TSI) Duolite ST-3 Projector
Technical Service Inc. (TSI) Moviematic TM-3 Projector
Technical Service Inc. (TSI) Moviematic STM-3 Projector
Viewlex AP-22C Projector Slide / Filmstrip
Viewlex AP-33 Projector Slide / Filmstrip
Viewlex AP-55 Projector Slide / Filmstrip

CMV may also be listed as:
00850 EIKO00850 UPC00850 WIKO031293008503 EIKO
048777109380 UPC1000139 BLV1000139 USHIO3-LMB
300-C-1 SYLVANIA300T8-1/2-1BA15S115300T8-1/2-1BA15S115V300T8-1/2-1BA15S125
300T8-1/2-1BA15S125V300T8-1/2-1SC115300T8-1/2-1SC115V300T8-1/2-1SC125
300T8-1/2-1SC125V300T8-1/2-2BA15S SYLVANIA300T8-1/2-2BA15S115300T8-1/2-2BA15S115V
300T8-1/2-2BA15S120 SYLVANIA300T8-1/2-2BA15S120V SYLVANIA300T8-1/2-2BA15S125300T8-1/2-2BA15S125V
300T8-1/2-2SC SYLVANIA300T8-1/2-2SC115300T8-1/2-2SC115V300T8-1/2-2SC120 SYLVANIA
300T8-1/2-2SC120V SYLVANIA300T8-1/2-2SC125300T8-1/2-2SC125V300T8-1/2/1SC-115V PM-LAMP
300T8.5-1BA15S115300T8.5-1BA15S115V300T8.5-1BA15S125300T8.5-1BA15S125V
300T8.5-1SC115300T8.5-1SC115V300T8.5-1SC125300T8.5-1SC125V
300T8.5-2BA15S SYLVANIA300T8.5-2BA15S115300T8.5-2BA15S115V300T8.5-2BA15S120 SYLVANIA
300T8.5-2BA15S120V SYLVANIA300T8.5-2BA15S125300T8.5-2BA15S125V300T8.5-2SC SYLVANIA
300T8.5-2SC115300T8.5-2SC115V300T8.5-2SC120 SYLVANIA300T8.5-2SC120V SYLVANIA
300T8.5-2SC125300T8.5-2SC125V300T8.5/1SC-115V PM-LAMP300T8.5/2SC GENERAL-ELECTRIC
300T81/2/2SC GENERAL-ELECTRIC300W/T8.5/2/SC300WATT-C-1 SYLVANIA300WATT-T8.5-1-BA15S-115VOLT-OT
300WATT-T8.5-2-BA15S SYLVANIA300WATT-T8.5-2-BA15S-115VOLT-OT300WATT-T8.5-2-BA15S-120 VOLT SYLVANIA3129300850 WIKO
7066N-115V PHILIPSA1-137 ATLASA1-137 LIFA1-137 THORN
BA15S-300W-CMV/CMT-120V-T27MM-104.8MMMOL-34.9MMLCL-C-13D-7300L-3100K-25H-BD-1000139 BLVBA15S-300W-CMV/CMT-120V-T27MM-104.8MMMOL-34.9MMLCL-C-13D-7300L-3100K-25H-BD-1000139 USHIOCMV ANSICMV ASA
CMV GENERAL-ELECTRICCMV INTERLIGHTCMV MICROLAMPCMV SYLVANIA
CMV USHIOCMV WIKOCMV-115 ANSICMV-115 ASA
CMV-115V ANSICMV-115V ASACMV-115V-300W ANSICMV-115V-300W ASA
CMV-115V/115V/300W/BA15S ANSICMV-115VOLT ANSICMV-115VOLT ASACMV-120 ANSI
CMV-120 ASACMV-120 VOLT ANSICMV-120 VOLT ASACMV-120V ANSI
CMV-120V ASACMV-120V-300WCMV-120V-300W ANSICMV-120V-300W ASA
CMV-120V-300W-BA15S USHIOCMV-120V-300W-BA15S-T8-C13D-OBSCURED-TOP-7300L-3100K-25H-BD-4-1/8MOL-1-3/8LCL-I-FILM-STRIP-SLIDE-PROJECTOR-CLEAR-BULB-LUMENS-MODERATECMV-120V/120V/300W/BA15S ANSICMV-125 ANSI
CMV-125 ASACMV-125V ANSICMV-125V ASACMV-125V-300W ANSI
CMV-125V-300W ASACMV-300W-120V-BA15S USHIOCMV-CMT ANSICMV-CMT ASA
CMV-CMT EIKOCMV-CMT SYLVANIACMV-CMT WIKOCMV/115V/300W/BA15S ANSI
CMV/120VCMV/120V/300W/BA15S ANSICMV/125V GENERAL-ELECTRICCMV/CMT BULB-DIRECT
CMV/CMT INTERLIGHTCMV/CMT MICROLAMPCMV/CMT USHIOCMV/CMT-120V-300W-BA15S USHIO
CMV/CMT-120V-T27MM-104.8MMMOL-34.9MMLCL-C-13D-7300L-3100K-25H-BD-1000139 BLVCMV/CMT-120V-T27MM-104.8MMMOL-34.9MMLCL-C-13D-7300L-3100K-25H-BD-1000139 USHIOCMV/CMT-300W-120V-BA15S USHIOCMV/CMT/125V GENERAL-ELECTRIC
I/115V/250W/E26/T20/OT/50HI/115V/300W/BA15S/25H/7066N-115V PHILIPSI/115V/300W/BA15S/OT/25H/7066N-115V PHILIPSI/115V/300W/BA15S/T8.5/C13D/OT/25H
I/115V/300W/BA15S/T8.5/C13D/OT/25H/CMV-115VI/115V/300W/BA15S/T8.5/OT/25H/CMVI/115V/300W/BA15S/T8.5/OT/25H/CMV-115VI/115V/300W/BA15S/T8.5/OT/25H/SP300T8.5SCOT115V
I/120V/300W/BA15S/T8.5/C13D/OTI/120V/300W/BA15S/T8.5/C13D/OT/25HI/120V/300W/BA15S/T8.5/C13D/OT/25H/CMV-120VI/120V/300W/BA15S/T8.5/OT/25H/CMV
I/120V/300W/BA15S/T8.5/OT/25H/CMV-120VINC-120V-300W-C13D-25HR USHIOINC-120V-300W-C13D-25HR/120V/300W/BA15S USHIOINC-120V-300W-C13D-25HR/120V/300W/BA15S/CMV/CMT USHIO
INC-120V-300W-C13D-25HR/CMV/CMT USHIOKP-8-DKP-8.5-D-115V-300KP-8.5-D-115V-300W
KP-8.5-D-115VOLT-300WATTKP-8.5-D-120 VOLT-300WATTKP-8.5-D-120V-300KP-8.5-D-120V-300W
KP-8.5-D-125V-300KP-8.5-D-125V-300WKP8-1/2D115-300KP8-1/2D115-300W
KP8-1/2D115V300KP8-1/2D115V300WKP8-1/2D120-300KP8-1/2D120-300W
KP8-1/2D120V300KP8-1/2D120V300WKP8-1/2D125-300KP8-1/2D125-300W
KP8-1/2D125V300KP8-1/2D125V300WKP8.5D115-300KP8.5D115-300W
KP8.5D120-300KP8.5D120-300WKP8.5D125-300KP8.5D125-300W
PH-300WATT-T8.5-1-BA15S-115VOLT-OTPH/300T8.5/2SC GENERAL-ELECTRICPH/300T81/2/2SC GENERAL-ELECTRICPH/300W/T8.5/2/SC
PH300T8-1/2-1BA15S115PH300T8-1/2-1BA15S115VPH300T8-1/2-1BA15S125PH300T8-1/2-1BA15S125V
PH300T8-1/2-1SC115PH300T8-1/2-1SC115VPH300T8-1/2-1SC125PH300T8-1/2-1SC125V
PH300T8.5-1BA15S115PH300T8.5-1BA15S115VPH300T8.5-1BA15S125PH300T8.5-1BA15S125V
PH300T8.5-1SC115PH300T8.5-1SC115VPH300T8.5-1SC125PH300T8.5-1SC125V
PH300WT8-1/2-1BA15S115PH300WT8-1/2-1BA15S115VPH300WT8-1/2-1BA15S125PH300WT8-1/2-1BA15S125V
PH300WT8-1/2-1SC115PH300WT8-1/2-1SC115VPH300WT8-1/2-1SC125PH300WT8-1/2-1SC125V
PH300WT8.5-1BA15S115PH300WT8.5-1BA15S115VPH300WT8.5-1BA15S125PH300WT8.5-1BA15S125V
PH300WT8.5-1SC115PH300WT8.5-1SC115VPH300WT8.5-1SC125PH300WT8.5-1SC125V
PXDA RADIANTSP300T8.5BA15SC13DOT115VSP300T8.5BA15SC13DOT115V-CMV-115VSP300T8.5BA15SC13DOT120V
SP300T8.5BA15SC13DOT120V-CMV-120VSP300T8.5BA15SOT115V-CMV-115VSP300T8.5BA15SOT120V-CMV-120VSP300T8.5SC13DCOT115V
SP300T8.5SCC13DOT115VSP300T8.5SCC13DOT115V-CMVSP300T8.5SCC13DOT115V-CMV-115VSP300T8.5SCC13DOT120V
SP300T8.5SCC13DOT120V-CMVSP300T8.5SCC13DOT120V-CMV-120VSP300T8.5SCLCOT115VSP300T8.5SCOT115V
SP300T8.5SCOT115V-CMVSP300T8.5SCOT115V-CMV-115VSP300T8.5SCOT120V-CMVSP300T8.5SCOT120V-CMV-120V
