CP/40-240 LIF Code
CP/40-240 LIF is a T23 lamp with a G22 base operating at 1000 watts and 240 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF CP/40-240 lamps.
Electrical Specifications | |
| Volts | 240 |
|---|---|
| Watts | 1000 |
Photometrics | |
| Color Temperature | 3200 |
|---|---|
| Light Center Length (LCL) | 63.5 |
| Lumens | 26000 |
Physical Characteristics | |
| Base | G22 |
|---|---|
| Bulb Shape | T23 |
| Filament | C-13 |
| Finish | Clear |
| Max Overall Length (MOL) | 140 |
Operating Characteristics | |
| Burn Position | VBD ± 90 |
|---|---|
| Life Hours | 200 |
General Information | |
| Lamp Code | CP/40-240 |
|---|---|
| Code Type | LIF |
| Specification Reference | Class CP - Color Photography |
| Equivalents | FKJ |
C-13 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|

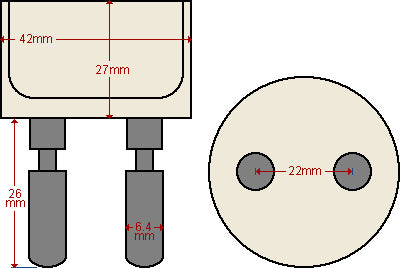

G22 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Osram Sylvania | 54669 | FKJ 64747 CP/71 1000W 230V | Available |
Equipment Used In | ||
| Brand | Model | Type |
| Strand Lighting | Bambino 12-63 1KW | Stage / Studio |
