CP/82-120 LIF is a T25 lamp with a GY9.5 base operating at 500 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 180 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for LIF CP/82-120 lamps.

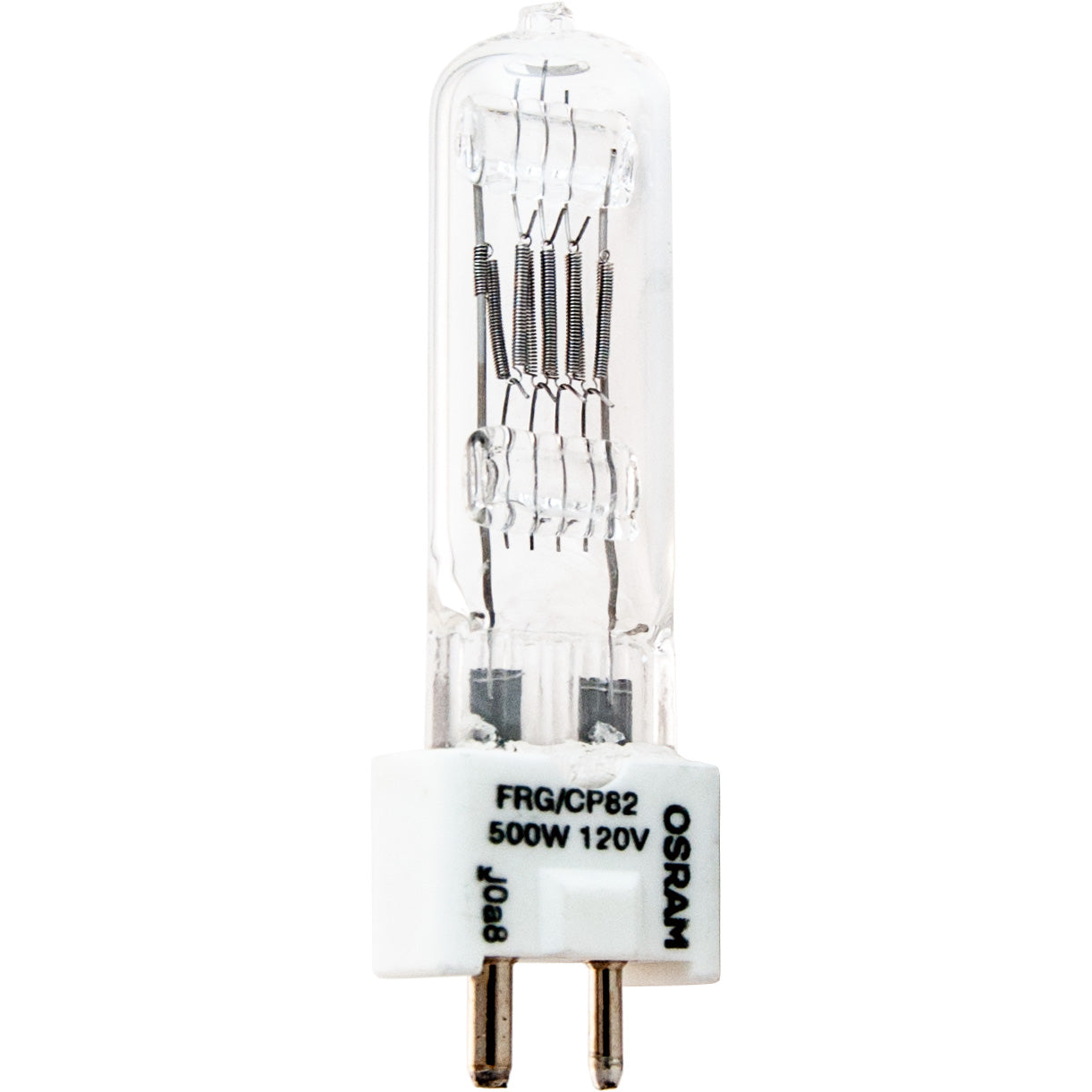

CP/82-120 Photograph |
 |
Electrical Specifications | |
| Volts | 120 |
|---|---|
| Watts | 500 |
Photometrics | |
| Color Temperature | 3200 |
|---|---|
| Light Center Length (LCL) | 46.5 |
| Lumens | 13000 |
Physical Characteristics | |
| Base | GY9.5 |
|---|---|
| Bulb Shape | T25 |
| Filament | C-13 |
| Finish | Clear |
| Max Overall Length (MOL) | 90 |
Operating Characteristics | |
| Burn Position | VBD ± 90 |
|---|---|
| Life Hours | 180 |
General Information | |
| Lamp Code | CP/82-120 |
|---|---|
| Code Type | LIF |
| Specification Reference | Class CP - Color Photography |
| Equivalents | FRG |
T25 Shape | |
 | |
| Diameter Designation | 25/8" |
|---|---|
| Glass Diameter | 3 1/8" (3.125") |
| Shape Code | T |
| Shape Classification | Tubular |
C-13 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
GY9.5 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Atlas/Thorn | CP/82 (120V) | ||
| General Electric | 39623 | FRG-Q500T8 | |
| Osram Sylvania | 54629 | FRG | Available |
| Ushio | 1000603 | FRG, JCS120V-500WC1 | Available |
| General Electric | 88467 | FRG-Q500T8 120 | |
Equipment Used In | ||
| Brand | Model | Type |
| ARRI | Plus Fresnel | Stage / Studio |
| Altman Lighting | 650L 4 1/2 Fresnel | |
| Lowel | Fren-L System 650 | Stage / Studio |
| Strand Lighting | Bambino 200W-500W | Stage / Studio |
