CPF ANSI Code
CPF ANSI is a T10 lamp with a 17q-d24 base operating at 300 watts . It has a Frosted band finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CPF lamps.

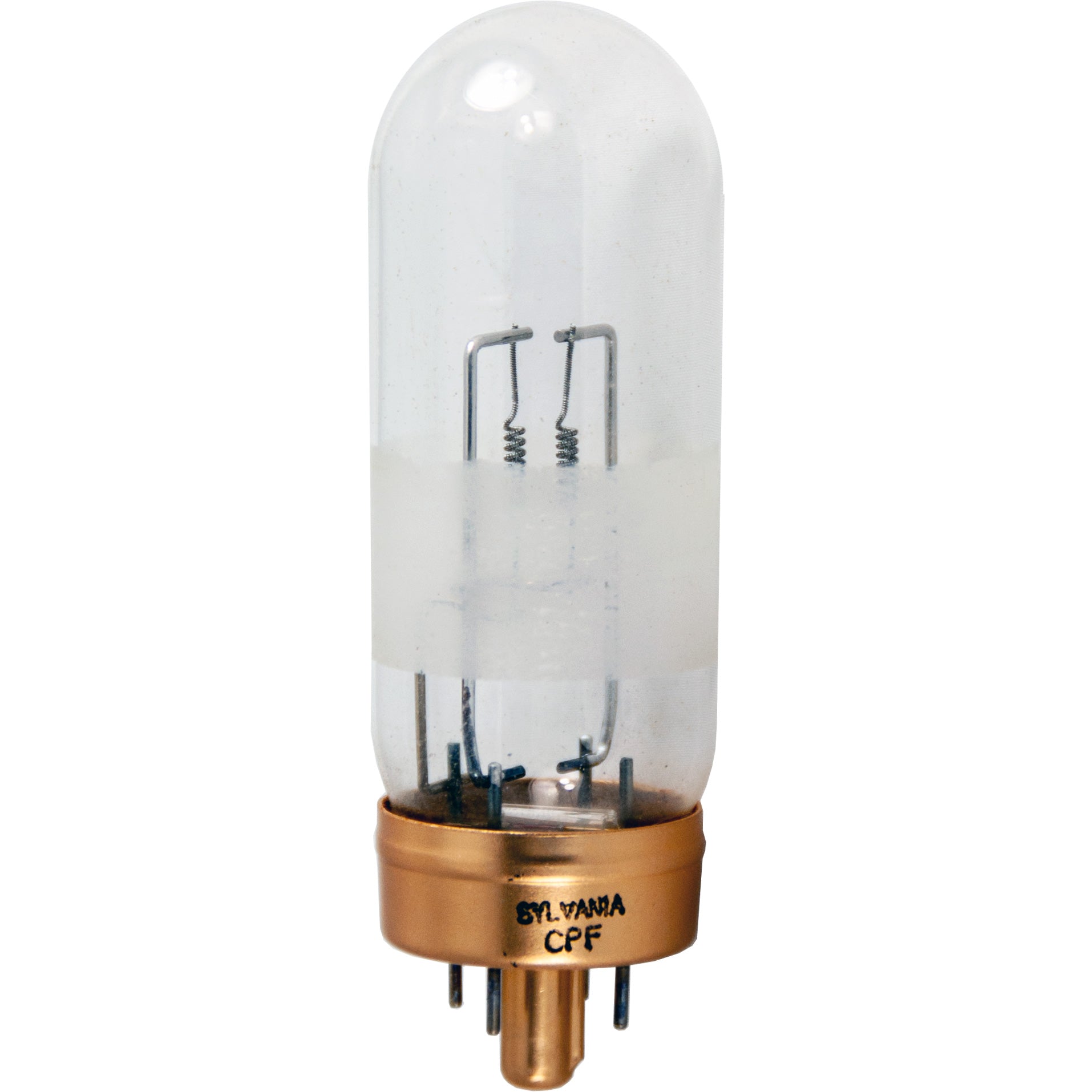

CPF Photograph |
 |
Electrical Specifications | |
| Watts | 300 |
|---|---|
Photometrics | |
| Light Center Length (LCL) | 1 3/4 |
|---|---|
Physical Characteristics | |
| Base | 17q-d24 |
|---|---|
| Bulb Shape | T10 |
| Filament | 2CC-8 |
| Finish | Frosted band |
| Max Overall Length (MOL) | 4 |
Operating Characteristics | |
| Burn Position | Base Down |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | CPF |
|---|---|
| Code Type | ANSI |
T10 Shape | |
 | |
| Diameter Designation | 10/8" |
|---|---|
| Glass Diameter | 1 1/4" (1.25") |
| Shape Code | T |
| Shape Classification | Tubular |
2CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Osram Sylvania | CPF | ||
