CRA ANSI Code
CRA ANSI is a T10 lamp with a G17q-A4A base operating at 300 watts and 120 volts. It has a color temperature of 3150 Kelvin. It has a Obscured Top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CRA lamps.

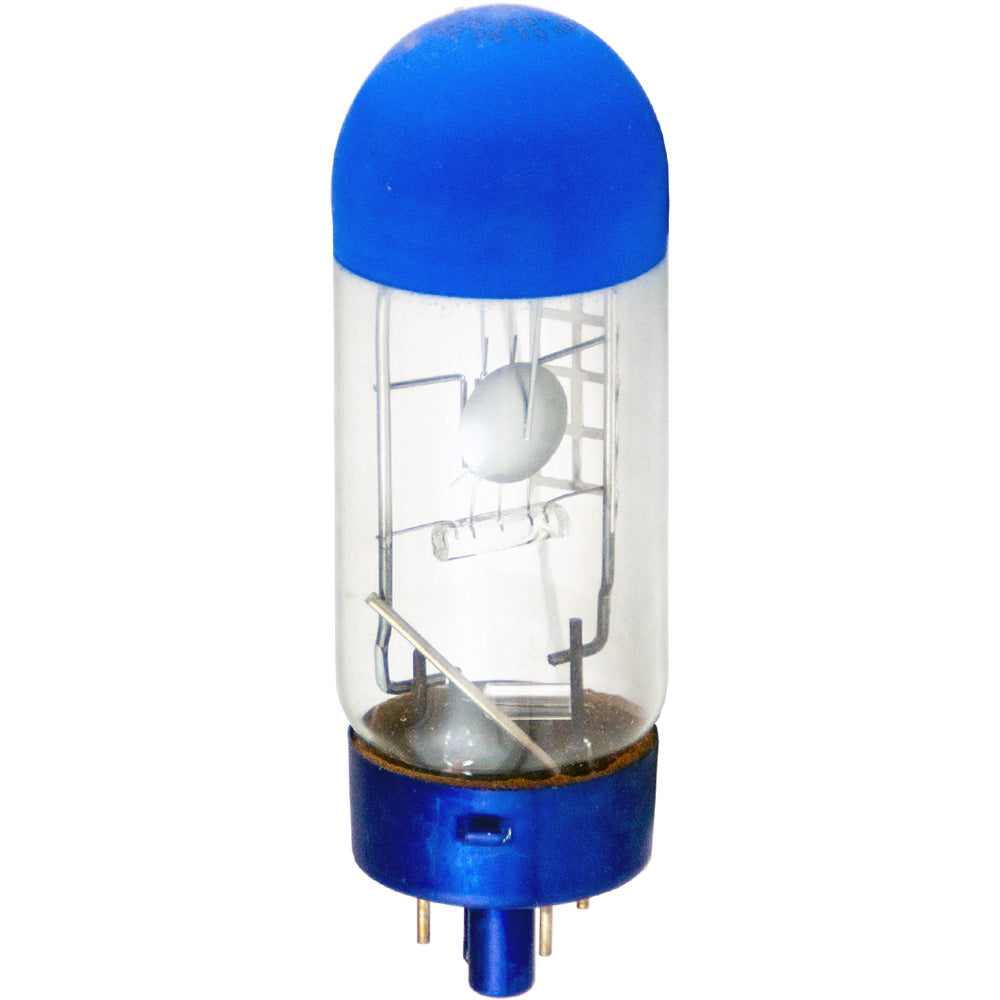

CRA Photograph |
 |
Electrical Specifications | |
| Amps | 2.5 |
|---|---|
| Volts | 120 |
| Watts | 300 |
Photometrics | |
| Color Temperature | 3150 |
|---|---|
| Light Center Length (LCL) | 1 3/4 |
| Lumens | 7000 |
Physical Characteristics | |
| Base | G17q-A4A |
|---|---|
| Bulb Shape | T10 |
| Filament | C-13 |
| Finish | Obscured Top |
| Max Overall Length (MOL) | 4 |
Operating Characteristics | |
| Burn Position | H / V |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | CRA |
|---|---|
| Code Type | ANSI |
T10 Shape | |
 | |
| Diameter Designation | 10/8" |
|---|---|
| Glass Diameter | 1 1/4" (1.25") |
| Shape Code | T |
| Shape Classification | Tubular |
C-13 Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Eiko | CRA (WIKO) | ||
Equipment Used In | ||
| Brand | Model | Type |
| Bell and Howell | Explorer 742 | |
| Bell and Howell | Explorer 744 | |
| Bell and Howell | Explorer 764 | |
| GAF (Ansco) | Dualet | Projector Slide / Filmstrip |
| Optics Manufacturing Corp. | Opta-Matic 950 | Projector |
| Optics Manufacturing Corp. | Opta-Matic 910 | Projector |
| Optics Manufacturing Corp. | Custom 950 | Projector |
| Quick-Set | 300 Super | |
| Realist | 620 Deluxe | |
| Sears Roebuck | 9871 TOWER | Projector Slide / Filmstrip |
| Sears Roebuck | 9830 SEARS | Projector Slide / Filmstrip |
| Sears Roebuck | 1830 SEARS | Projector Slide / Filmstrip |
| Sears Roebuck | 9871 SEARS | Projector Slide / Filmstrip |
CRA may also be listed as: | |||
| 300-T10-G17Q-3 SYLVANIA | 300-T10-TF-3 SYLVANIA | 300-T10-TRUE-FOCUS-3 SYLVANIA | 300WATT-T10-G17Q-3 SYLVANIA |
| CRA ANSI | CRA ASA | CRA GENERAL-ELECTRIC | CRA INTERLIGHT |
| CRA SYLVANIA | CRA-120 ANSI | CRA-120 ASA | CRA-120 VOLT ANSI |
| CRA-120 VOLT ASA | CRA-120V ANSI | CRA-120V ASA | CRA-120V-300W |
| CRA-120V-300W ANSI | CRA-120V-300W ASA | CRA-120V-300W-G17Q-T-10-C-13-GOLD/BLUE-TOP-7000L-3150K-25H-H-OR-V-4MOL-1-3/4LCL-I-FILM-STRIP-PROJECTOR-PROXIMITY-REFL.-CLEAR-BULB-LUMENS | CRA-120V-300W-G17Q-T10-C13-GOLD/BLUE-TOP-7000L-3150K-25H-ANY-4MOL-1-3/4LCL-I-FILM-STRIP-PROJECTOR-PROXIMITY-REFL-CLEAR-BULB-LUMENS |
| CRA-120V/120V/300W/G17Q ANSI | CRA/120V GENERAL-ELECTRIC | CRA/120V/300W/G17Q ANSI | I/120V/300W/G17Q-A4A/T10/C13/OT/25H |
| I/120V/300W/G17Q-A4A/T10/C13/OT/25H/CRA | I/120V/300W/G17Q-A4A/T10/OT/25H | I/120V/300W/G17Q-A4A/T10/OT/25H/CRA | I/120V/300W/G17Q/T10/C13/OT/25H/CRA |
| I/120V/300W/G17Q/T10/OT/25H/CRA | SP300T10G17Q-A4AC13OT120V | SP300T10G17Q-A4AOT120V | SP300T10G17QA4AC13OT120V-CRA |
| SP300T10G17QA4AOT120V-CRA | SP300T10G17QC13OT120V-CRA | SP300T10G17QOT120V-CRA | |
