CRT ANSI Code
CRT ANSI is a T10 lamp with a G17q-A2B base operating at 300 watts and 120 volts. It has a color temperature of 2900 Kelvin. It has a Obscured Top finish. The average rated life is 500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CRT lamps.

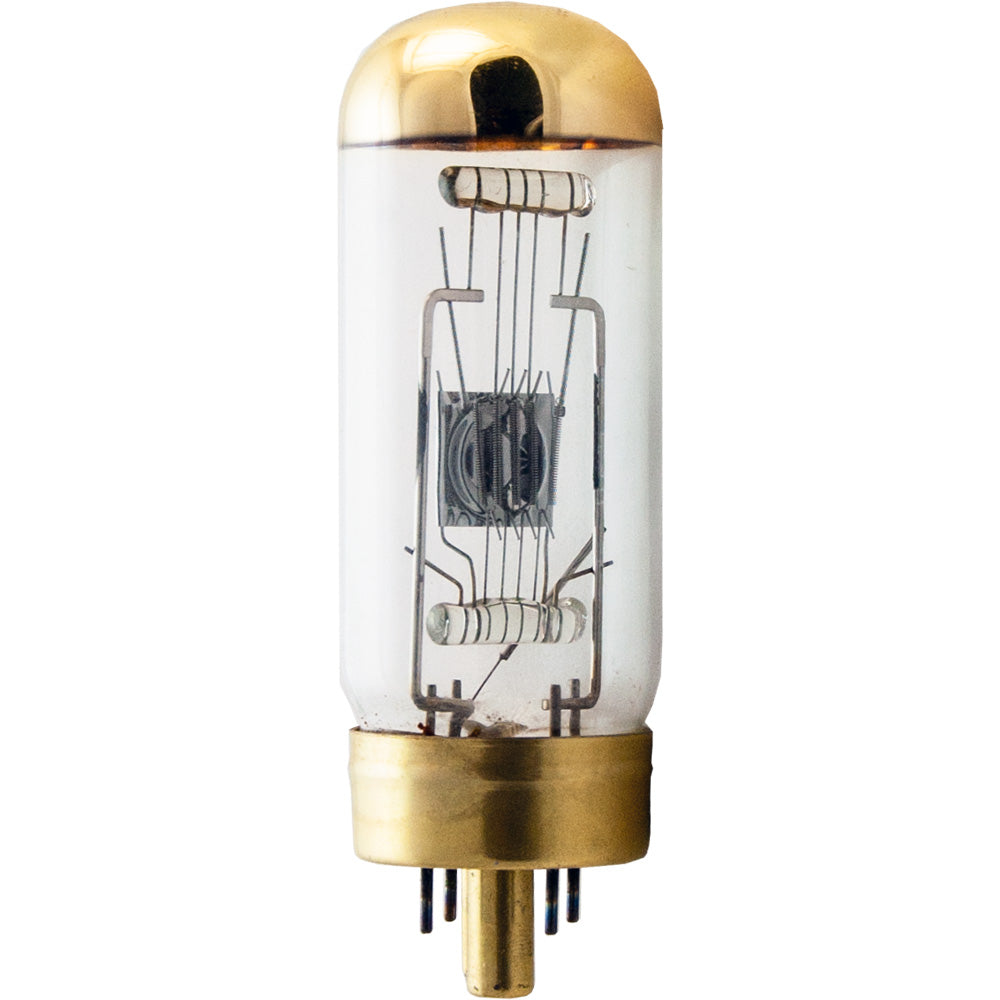

CRT Photograph |
 |
Electrical Specifications | |
| Amps | 2.5 |
|---|---|
| Volts | 120 |
| Watts | 300 |
Photometrics | |
| Color Temperature | 2900 |
|---|---|
| Light Center Length (LCL) | 1 9/16 |
Physical Characteristics | |
| Base | G17q-A2B |
|---|---|
| Bulb Shape | T10 |
| Filament | C-13D |
| Finish | Obscured Top |
| Max Overall Length (MOL) | 4 |
Operating Characteristics | |
| Burn Position | Base Down |
|---|---|
| Life Hours | 500 |
General Information | |
| Lamp Code | CRT |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T10 Shape | |
 | |
| Diameter Designation | 10/8" |
|---|---|
| Glass Diameter | 1 1/4" (1.25") |
| Shape Code | T |
| Shape Classification | Tubular |
C-13D Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Microlites | 120-300-31T | ||
| Canimpex | 120-300-31T | ||
Equipment Used In | ||
| Brand | Model | Type |
| 3M | 625-BGF | |
| AV Concepts | FS-300 | |
| AV Concepts | SFS-300 | |
| Bell and Howell | Headliner Microfilm | |
| Bell and Howell | Microfiche | |
| Bell and Howell | Headliner | |
| Dukane | Micromatic 14A390E | Projector |
| Dukane | Manual Matic 14A335F | Projector |
| Dukane | Micromatic II 14A335E | Projector |
| Dukane | Micromatic II 14A335G | Projector |
| Dukane | Silent 28A34 | Projector |
| Dukane | Micromatic 14A390G | Projector |
| Dukane | Manual Matic 14A335E | Projector |
| Dukane | Micromatic 14A390F | Projector |
| Dukane | Manual Matic 14A335G | Projector |
| Dukane | Micromatic 28A34 | Projector |
| Dukane | Micromatic II 14A335F | Projector |
| Sawyer's Inc. | Projection Display Kit DS-43 | Projector |
| Sawyer's Inc. | Rotoshow | Projector |
| Sawyer's Inc. | Projection Display Kit DS-42 | Projector |
| Thomas Publishing | TM-C Reader | |
| Viewlex | V-832L | |
| Viewlex | V-833L | |
CRT may also be listed as: | |||
| 00860 WIKO | 1000140 USHIO | 29700 GENERAL-ELECTRIC | 78-8006-3073 3M |
| CRT ANSI | CRT ASA | CRT GENERAL-ELECTRIC | CRT INTERLIGHT |
| CRT LAMPTECH | CRT MICROLAMP | CRT USHIO | CRT WIKO |
| CRT-120 VOLT ANSI | CRT-120 VOLT ASA | CRT-120V ANSI | CRT-120V ASA |
| CRT-120V-300W | CRT-120V-300W ANSI | CRT-120V-300W ASA | CRT-120V-300W-G17Q-T10-C13D-GOLD-TOP-2900K-500H-BD-4MOL-1-9/16LCL-I-FILM-STRIP-PROJECTOR-PROXIMITY-REFLECTOR |
| CRT-120V/120V/300W/G17Q ANSI | CRT/120V GENERAL-ELECTRIC | CRT/120V-300W LAMPTECH | CRT/120V/300W/G17Q ANSI |
| I/120V/300W/G17Q-A2B/T10/C13D/OT/500H | I/120V/300W/G17Q-A2B/T10/C13D/OT/500H/CRT | I/120V/300W/G17Q-A2B/T10/OT/500H | I/120V/300W/G17Q-A2B/T10/OT/500H/CRT |
| I/120V/300W/G17Q/T10/C13D/OT/500H | I/120V/300W/G17Q/T10/C13D/OT/500H/CRT | I/120V/300W/G17Q/T10/OT/500H | I/120V/300W/G17Q/T10/OT/500H/CRT |
| KP-TFM-10-H-5 KONDO | SP300T10G17Q-A2BC13DOT120V | SP300T10G17QA2BC13DOT120V-CRT | SP300T10G17QA2BOT120V-CRT |
| SP300T10G17QC13DOT120V-CRT | SP300T10G17QOT120V-CRT | ||
