CTR ANSI Code

CTR ANSI is a T10 lamp with a E26 base operating at 120/140 watts and 120 volts. It has a color temperature of 3125 Kelvin. It has a Clear finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CTR lamps.

Electrical Specifications

Amps1.17
Volts120
Watts120/140

Photometrics

Candlepower270
Color Temperature3125
Light Center Length (LCL)3 5/8
Lumens3350

Physical Characteristics

BaseE26
Bulb ShapeT10
FilamentC-9
FinishClear
Max Overall Length (MOL)5 1/8

Operating Characteristics

Burn PositionBase Down
Life Hours25

General Information
Lamp CodeCTR
Code TypeANSI

T10 Shape

T10
Diameter Designation10/8"
Glass Diameter 1 1/4" (1.25")
Shape CodeT
Shape ClassificationTubular

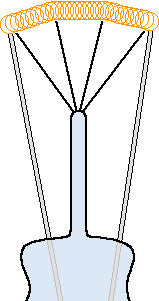

C-9 Filament

C-9
Coil TypeC - Single Coil

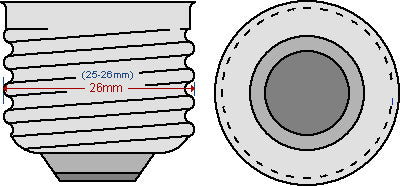

E26 Base

E26

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSICTR

Equipment Used In

BrandModelType
Excel Movie Products Excel P-36
Excel Movie Products Excel P-56
Keystone Camera Co. Inc. E-847 Projector Slide / Filmstrip
Keystone Camera Co. Inc. E-829 Projector Slide / Filmstrip
Keystone Camera Co. Inc. E-893 Projector Slide / Filmstrip
Keystone Camera Co. Inc. E-746 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 431 Projector Slide / Filmstrip
Keystone Camera Co. Inc. E-853 Projector Slide / Filmstrip
Keystone Camera Co. Inc. D-896 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-441 Projector Slide / Filmstrip
Keystone Camera Co. Inc. L-751 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 441 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 754 Projector Slide / Filmstrip
Keystone Camera Co. Inc. L-951 Projector Slide / Filmstrip
Keystone Camera Co. Inc. D-891 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 411 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-411 Projector Slide / Filmstrip
Keystone Camera Co. Inc. E-839 Projector Slide / Filmstrip
Keystone Camera Co. Inc. E-741 Projector Slide / Filmstrip
Keystone Camera Co. Inc. D-754 Projector Slide / Filmstrip
Keystone Camera Co. Inc. D-898 Projector Slide / Filmstrip
Keystone Camera Co. Inc. L-742 Projector Slide / Filmstrip
Keystone Camera Co. Inc. D-885 Projector Slide / Filmstrip
Keystone Camera Co. Inc. D-889 Projector Slide / Filmstrip
Keystone Camera Co. Inc. D-752 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 421 Projector Slide / Filmstrip
Keystone Camera Co. Inc. E-848 Projector Slide / Filmstrip
Keystone Camera Co. Inc. E-943 Projector Slide / Filmstrip
Keystone Camera Co. Inc. D-854 Projector Slide / Filmstrip
Keystone Camera Co. Inc. E-743 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-421 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-431 Projector Slide / Filmstrip
Keystone Camera Co. Inc. L-942 Projector Slide / Filmstrip

CTR may also be listed as:
140-T10-69 WESTINGHOUSE140-T10-69-120 VOLT WESTINGHOUSE140T10/69 GENERAL-ELECTRIC140W/T10/69
140W/T10/E26/CL/120VCTRCTR ANSICTR ASA
CTR GENERAL-ELECTRICCTR INTERLIGHTCTR WESTINGHOUSECTR-120 VOLT ANSI
CTR-120 VOLT ASACTR-120V ANSICTR-120V ASACTR-120V-140W ANSI
CTR-120V-140W ASACTR-120V/120V/140W/E26 ANSICTR/120VCTR/120V/140W/E26 ANSI
I/120V/140W/E26/T10/C9/25HI/120V/140W/E26/T10/C9/25H/CTR-120VI/120V/140W/E26/T10/CL/25HI/120V/140W/E26/T10/CL/25H/CTR-120V
PH-140WATT-T10-69 WESTINGHOUSEPH-140WATT-T10-69-120 VOLT WESTINGHOUSEPH/140T10/69 GENERAL-ELECTRICPH/140W/T10/69
SP140T10E26C9-120VSP140T10E26C9120V-CTR-120VSP140T10MC9-120VSP140T10MC9120V-CTR-120V
