CTT ANSI Code

CTT ANSI is a T12 lamp with a G17q-A2A base operating at 1000 watts and 120 volts. It has a color temperature of 3300 Kelvin. It has a Obscured Top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CTT lamps.

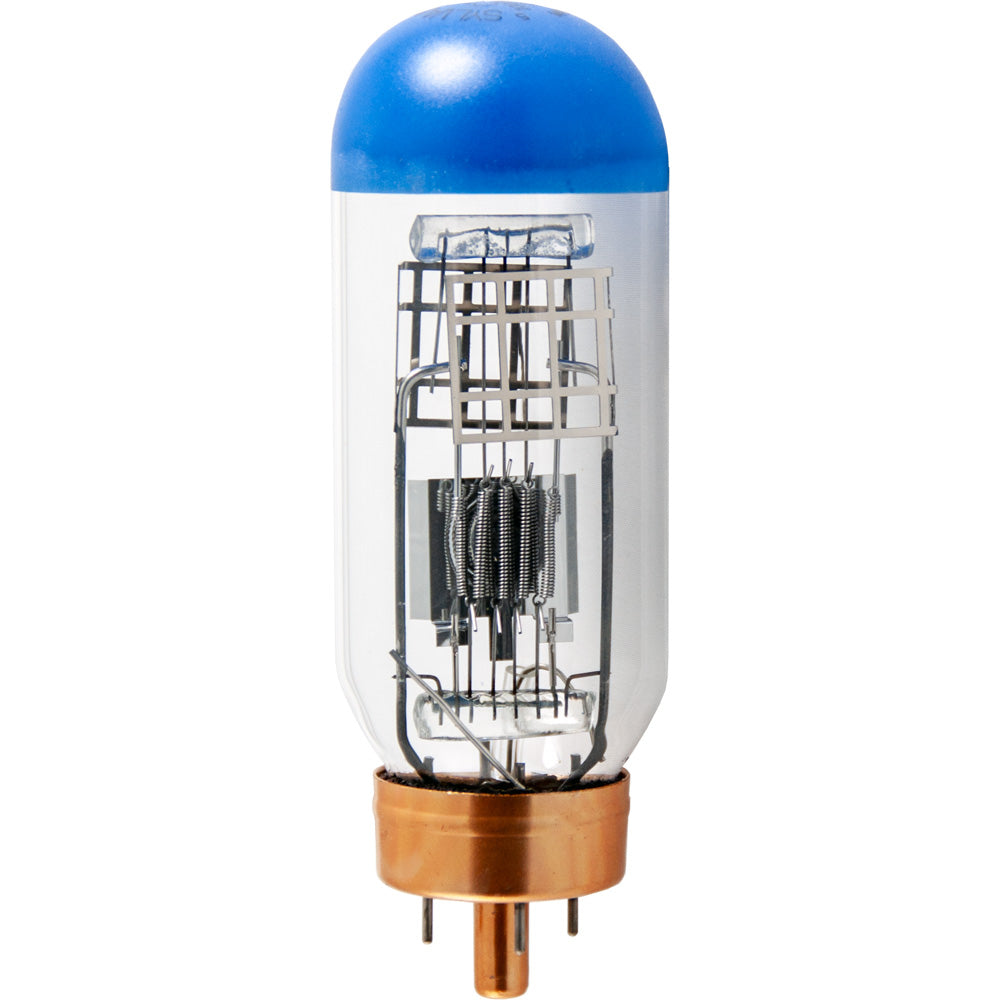

CTT Photograph

CTT

Electrical Specifications

Amps8.33
Volts120
Watts1000

Photometrics

Color Temperature3300
Light Center Length (LCL)1 9/16
Lumens25200

Physical Characteristics

BaseG17q-A2A
Bulb ShapeT12
FilamentC-13D
FinishObscured Top
Max Overall Length (MOL)4 5/8

Operating Characteristics

Burn PositionBase Down
Life Hours25

General Information
Lamp CodeCTT
Code TypeANSI
Specification ReferenceANSI-SR24F2002

Substitution Notes
Possible Substitution DAX
For 240V Use A1-207/240V/1000W

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsCTT1000W, 115-125V
Eiko00870CTT-DAX
Microlites120-1000-31
Canimpex120-1000-31

Equipment Used In

BrandModelType
Applied Sciences Adaptalab Overhead Projector
Applied Sciences Overview / Overviewer Overhead Projector
Applied Sciences Adaptadesk Overhead Projector
Bell and Howell Filmosound Specialist 552
Bell and Howell Filmosound Specialist 554
Bell and Howell Filmosound Specialist T
Bell and Howell Filmosound Specialist 540
Bell and Howell Filmosound Specialist 556
Bell and Howell Filmosound Specialist 545-T
Bell and Howell Filmosound Specialist 546
Bell and Howell Filmosound Specialist 553
Bell and Howell Filmosound Specialist 550-T
Bell and Howell Filmosound Specialist 551
Bell and Howell Filmosound Specialist 556-T
Bell and Howell Filmosound Specialist 561
Bell and Howell Filmosound Specialist 552-EXT
Bell and Howell Filmosound Specialist 562
Bell and Howell Filmosound Specialist 552-T
Bell and Howell Filmosound Specialist 535-T
Bell and Howell Filmosound Specialist 550
Bell and Howell Filmosound Specialist 541
Bell and Howell Filmosound Specialist 545-EXT
Bell and Howell Filmosound Specialist 537
Bell and Howell Filmosound Specialist 535
Bell and Howell Filmosound Specialist 541-T
Bell and Howell Filmosound Specialist 544
Bell and Howell Filmosound Specialist 545
Bell and Howell Filmosound Specialist 542
Bell and Howell Filmosound Specialist 555
Bell and Howell Filmosound Specialist 535-Y
Beseler Photo Marketing (Charles Beseler) Luma-Scribe 30015 Overhead Projector
Beseler Photo Marketing (Charles Beseler) Luma-Scribe 30000 Overhead Projector
Beseler Photo Marketing (Charles Beseler) Luma-Scribe 30010 Overhead Projector
EIKI ST-1
EIKI ST-3
EIKI ST-0
EIKI ST-2
Hoover Brothers Da-Master Mark IV
Hoover Brothers Mark IV
Hoover Brothers Da-Master
Hoppman Corp. Teleshow 1-NP34M Overhead Projector
Hoppman Corp. CP-2 Overhead Projector
Hoppman Corp. HC-34-FR Overhead Projector
Ingenuics Invision IN552
International Audio Visual Ltd. Royal ST-0 Projector Slide / Filmstrip
International Audio Visual Ltd. Royal ST-3 Projector Slide / Filmstrip
International Audio Visual Ltd. Royal ST-1 Projector Slide / Filmstrip
International Audio Visual Ltd. Royal ST-2 Projector Slide / Filmstrip
McClure Projectors Educator Projector
Ozalid Porta-Lite 100 Projector Opaque / Transparency
RCA 1600 Projector
Spindler & Sauppe Selectroslide 766 Ultrabright Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 766 Projector Slide / Filmstrip
Terminal Data Corp. VMI 16/105

CTT may also be listed as:
00870 UPC00870 WIKO1000141 USHIO29939 GENERAL-ELECTRIC
3129300870 WIKO50460 NORELCO6286C PHILIPS6296-C PHILIPS
74620 SYLVANIAA1-207 ATLASA1-207 LIFA1-207 THORN
A1-207-115V-1000W ATLASA1-207-115V-1000W LIFA1-207-115V-1000W THORNA1-207-120 ATLAS
A1-207-120 LIFA1-207-120 THORNA1-207-120 VOLT ATLASA1-207-120 VOLT LIF
A1-207-120 VOLT THORNA1-207-120V ATLASA1-207-120V LIFA1-207-120V THORN
A1-207/115V LIFA1-207/115V/1000WA1-207/120VA1/207-115V-1000W-G17Q-T38-C13D-OBSCURED-TOP-25H-VBD-118MMMOL-39.7MMLCL-I-PROXIMITY-REFLECTOR-FORCED-COOLING-NECESSARY
A1/207-115V-1000W-TRUFOCUS-G17Q ATLASA1/207-G17Q-115V-1000W ATLASA1/207-G17Q-115V-1000W THORNA1/207/115V
BW-CTTCTT ANSICTT ASACTT HIDSI
CTT INTERLIGHTCTT USHIOCTT WESTINGHOUSECTT WIKO
CTT-115VCTT-115V/115V/1000W/G17Q ANSICTT-120 ANSICTT-120 ASA
CTT-120 VOLT ANSICTT-120 VOLT ASACTT-120V ANSICTT-120V ASA
CTT-120V-1000WCTT-120V-1000W ANSICTT-120V-1000W ASACTT-120V-1000W-G17Q-T12-C13D-GOLD-TOP-25200L-3300K-25H-BD-4-5/8MOL-1-9/16LCL-I-16MM-MOVIE-PROJECTOR-PROXIMITY-REFLECTOR-COLLECTOR-GRID
CTT-120V/120V/1000W/G17Q ANSICTT-DAX ANSICTT-DAX ASACTT-DAX SYLVANIA
CTT-DAX WIKOCTT-DAX-120 ANSICTT-DAX-120 ASACTT-DAX-120 VOLT ANSI
CTT-DAX-120 VOLT ASACTT-DAX-120V ANSICTT-DAX-120V ASACTT-DAX/120V-1000W-G17Q7 LAMPTECH
CTT/115V/1000W ANSICTT/115V/1000W/G17Q ANSICTT/120VCTT/120V/1000W/G17Q ANSI
CTT/DAX BULB-DIRECTCTT/DAX INTERLIGHTCTT/DAX LAMPTECHDAX/CTT ANSI
DAZEQ-A1/207/115V ELECTROQUIPG17Q-115V-1000W-PROJECTION ELECTROQUIPH003 HYBEC
I/115V/1000W/G17Q-A2A/T12/C13D/OT/25HI/115V/1000W/G17Q-A2A/T12/C13D/OT/25H/CTT-115VI/115V/1000W/G17Q-A2A/T12/OT/25HI/115V/1000W/G17Q-A2A/T12/OT/25H/CTT-115V
I/115V/1000W/G17Q/T12/C13D/OT/25HI/115V/1000W/G17Q/T12/C13D/OT/25H/CTT-115VI/115V/1000W/G17Q/T12/OT/25HI/115V/1000W/G17Q/T12/OT/25H/CTT-115V
I/120V/1000W/G17Q-A2A/T12/C13D/OT/25H/CTT-120VI/120V/1000W/G17Q-A2A/T12/OT/25H/CTT-120VI/120V/1000W/G17Q/T12/C13D/OT/25H/CTT-120VI/120V/1000W/G17Q/T12/OT/25H/CTT-120V
IL-4125KP-TFM-12-1000WATT KONDOKP-TFM-12-120 VOLT-1000WATTKPTFM12-1000 KONDO
KPTFM12-1000W KONDOKPTFM12-120-1000KPTFM12-120-1000WKPTFM12-120V1000
KPTFM12-120V1000WPROJECTION/115V/1000W/G17Q/25H/39X118MM ELECTROQUIPSP1000T12G17Q-A2AC13DOT115VSP1000T12G17Q-A2AOT115V
SP1000T12G17QA2AC13DOT115V-CTT-115VSP1000T12G17QA2AC13DOT120V-CTT-120VSP1000T12G17QA2AOT115V-CTT-115VSP1000T12G17QA2AOT120V-CTT-120V
SP1000T12G17QC13DOT115VSP1000T12G17QC13DOT115V-CTT-115VSP1000T12G17QC13DOT120V-CTT-120VSP1000T12G17QOT115V
SP1000T12G17QOT115V-CTT-115VSP1000T12G17QOT120V-CTT-120V
