CVX ANSI Code

CVX ANSI is a T10 lamp with a P28s base operating at 200 watts and 115 volts. It has a color temperature of 3100 Kelvin. It has a Obscured Top finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CVX lamps.

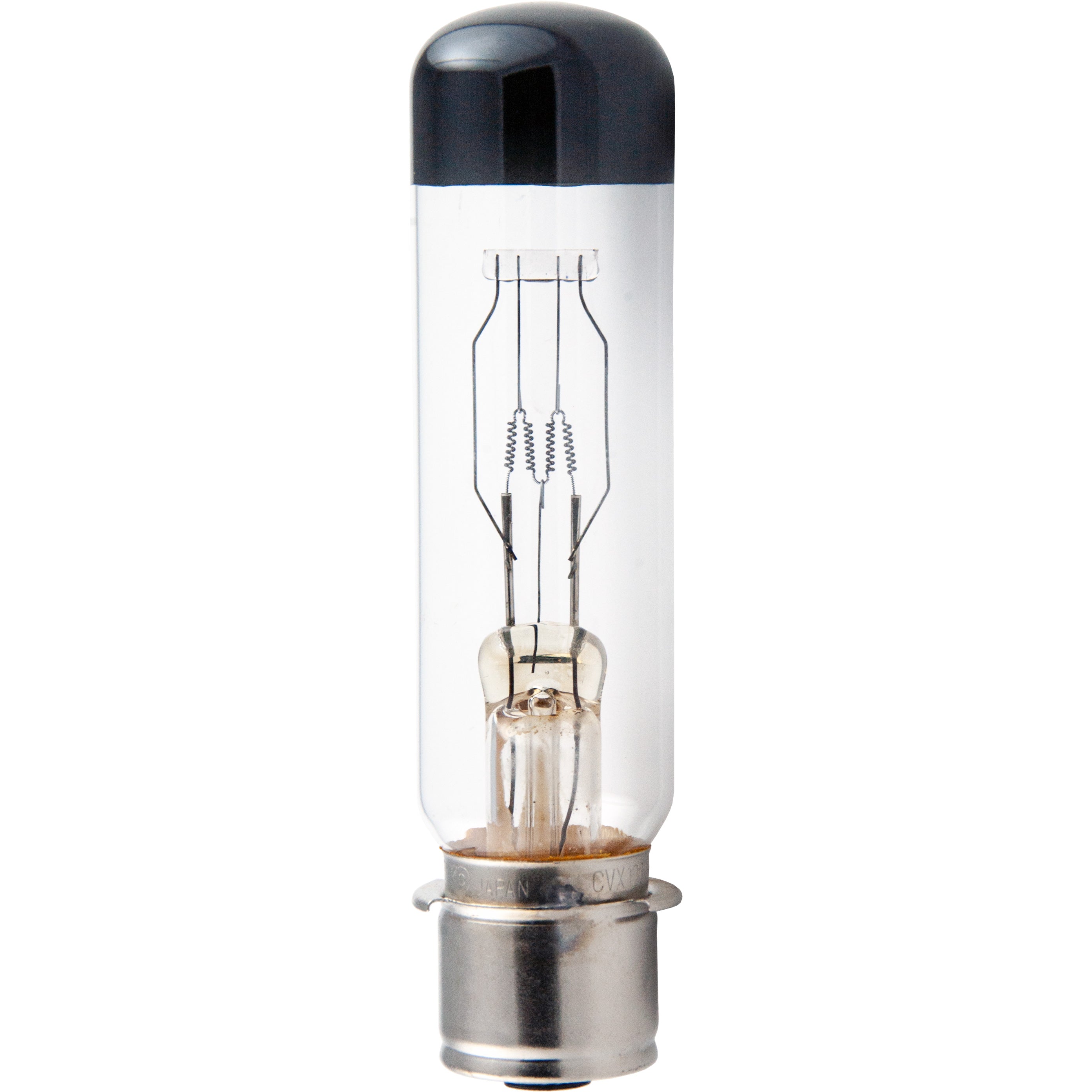

CVX Photograph

CVX

Electrical Specifications

Amps1.74
Volts115
Watts200

Photometrics

Candlepower340
Color Temperature3100
Light Center Length (LCL)2 3/16
Lumens4250

Physical Characteristics

BaseP28s
Bulb ShapeT10
FilamentC-13
FinishObscured Top
Max Overall Length (MOL)5 3/4

Operating Characteristics

Burn PositionVBD
Life Hours50

General Information
Lamp CodeCVX
Code TypeANSI

T10 Shape

T10
Diameter Designation10/8"
Glass Diameter 1 1/4" (1.25")
Shape CodeT
Shape ClassificationTubular

C-13 Filament

C-13
Coil TypeC - Single Coil

P28s Base

P28s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSICVX

Equipment Used In

BrandModelType
Eastman Kodak Kodascope Eight 50
Spindler & Sauppe Selectroslide J-10 Projector Slide / Filmstrip

CVX may also be listed as:
88000880 WIKO200/E2 SYLVANIA200T10/87
200T10/87 SYLVANIA200W/115V/T10/PROJ RADIANT200W/115V/T10/PROJ. RADIANT20T10P/C120 GENERAL-ELECTRIC
20T10P/C120V GENERAL-ELECTRIC20T10P/CL120 GENERAL-ELECTRIC20T10P/CL120V GENERAL-ELECTRIC20T10P28S/C120 GENERAL-ELECTRIC
20T10P28S/C120V GENERAL-ELECTRIC20T10P28S/CL120 GENERAL-ELECTRIC20T10P28S/CL120V GENERAL-ELECTRIC20T10PF/C120 GENERAL-ELECTRIC
20T10PF/C120V GENERAL-ELECTRIC20T10PF/CL120 GENERAL-ELECTRIC20T10PF/CL120V GENERAL-ELECTRIC20T10PREFOCUS/C120 GENERAL-ELECTRIC
20T10PREFOCUS/C120V GENERAL-ELECTRIC20T10PREFOCUS/CL120 GENERAL-ELECTRIC20T10PREFOCUS/CL120V GENERAL-ELECTRICA1-13/115V ATLAS
A1-13/115V THORNCVXCVX ANSICVX ASA
CVX SYLVANIACVX USHIOCVX WESTINGHOUSECVX WIKO
CVX-115 ANSICVX-115 ASACVX-115V ANSICVX-115V ASA
CVX-115V-200W ANSICVX-115V-200W ASACVX-120VCVX-120V ANSI
CVX-120V ASACVX-120V-200WCVX-120V-200W ANSICVX-120V-200W ASA
CVX/120CVX/120 ANSICVX/120 ASACVX/CVS
CVX/CVS ANSICVX/CVS ASACVX/CVS EIKOCVX/CVS SYLVANIA
CVX/CVS WIKOPXAR NORELCOPXAR RADIANTPXAR/115V NORELCO
PXAR/115V RADIANT
