CWA ANSI Code

CWA ANSI is a T12 lamp with a G17q-A2A base operating at 750 watts and 120 volts. It has a color temperature of 3250 Kelvin. It has a Obscured Top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CWA lamps.

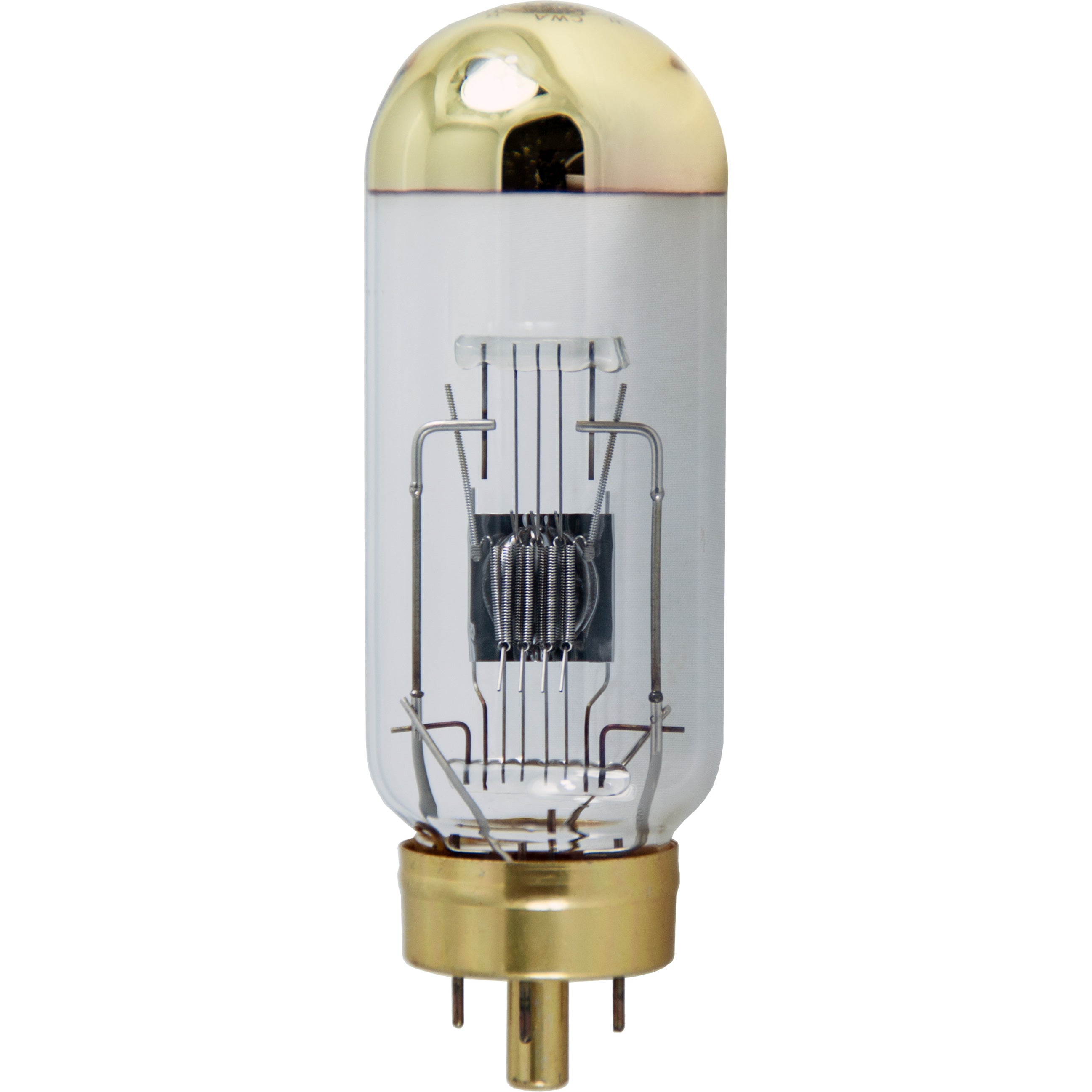

CWA Photograph

CWA

Electrical Specifications

Amps6.25
Volts120
Watts750

Photometrics

Color Temperature3250
Light Center Length (LCL)1 9/16
Lumens18000

Physical Characteristics

BaseG17q-A2A
Bulb ShapeT12
FilamentC-13D
FinishObscured Top
Max Overall Length (MOL)4 5/8

Operating Characteristics

Burn PositionBase Down
Life Hours25

General Information
Lamp CodeCWA
Code TypeANSI
Specification ReferenceANSI-SR24F2002

Substitution Notes
For 240V Use A1-206/240V/750W

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

G17q-A2A Base

G17q-A2A

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsCWA750W, 120V
Eiko00890CWA
Microlites120-750-31
Microlites120-750-31/CWA
Canimpex120-750-31
Canimpex120-750-31/CWA
Orbitec130438H 67206

Equipment Used In

BrandModelType
AV Concepts FS-750
AV Concepts FS-700
Apollo Lumen Master V25
Applied Sciences Adaptadesk Overhead Projector
Applied Sciences Overview / Overviewer Overhead Projector
Applied Sciences Adaptalab Overhead Projector
Bell and Howell Filmosound Specialist 551
Bell and Howell Filmosound Specialist 554
Bell and Howell Filmosound Specialist 562
Bell and Howell Specialist Autoload 745C
Bell and Howell Filmosound Specialist 537
Bell and Howell Filmosound Specialist 545-T
Bell and Howell Specialist Autoload 745-S
Bell and Howell Filmosound Specialist 545-EXT
Bell and Howell Filmosound Specialist 553
Bell and Howell Filmosound Specialist 552-T
Bell and Howell Specialist Autoload 745B
Bell and Howell Filmosound Specialist 556-T
Bell and Howell Filmosound Specialist 546
Bell and Howell Filmosound Specialist 556
Bell and Howell Filmosound Specialist 550
Bell and Howell Filmosound Specialist 555
Bell and Howell Specialist Autoload 745
Bell and Howell Filmosound Specialist 535-Y
Bell and Howell Specialist Autoload 745A
Bell and Howell Filmosound Specialist 542
Bell and Howell Autoload Filmchain 562-A
Bell and Howell Filmosound Specialist 545
Bell and Howell Filmosound Specialist 522-EXT
Bell and Howell Filmosound Specialist 552
Bell and Howell Filmosound Specialist 552-EXT
Bell and Howell Filmosound Specialist 535-T
Bell and Howell Filmosound Specialist 535
Bell and Howell Filmosound Specialist 544
Bell and Howell Filmosound Specialist 541-T
Bell and Howell Autoload Filmchain 561-A
Bell and Howell Filmosound Specialist 561
Bell and Howell Filmosound Specialist 550-T
Bell and Howell Filmosound Specialist 541
Bell and Howell Filmosound Specialist 540
Beseler Photo Marketing (Charles Beseler) Luma-Scribe 30000 Overhead Projector
Beseler Photo Marketing (Charles Beseler) Luma-Scribe 30015 Overhead Projector
Beseler Photo Marketing (Charles Beseler) Luma-Scribe 30010 Overhead Projector
Hoover Brothers Da-Master Mark IV
Hoover Brothers Da-Master
Hoover Brothers Mark IV
Ozalid Porta-Lite 100 Projector Opaque / Transparency
Photronix Scan Executive 10/40
RCA 1600 Projector
Singer Corporation School Master 750-RC
Singer Corporation School Master 750
Spindler & Sauppe Selectroslide Spectrum 96 Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 96 Projector Slide / Filmstrip
Spindler & Sauppe Spectrum 96 Projector Slide / Filmstrip
Standard Projector & Equipment 750 Automatic
Standard Projector & Equipment AB
Standard Projector & Equipment 750-AB
Viewlex V-27
Viewlex Lumen Master V-25 Viewer/Editing
Viewlex VH-27
Viewlex VHA-27R

Sources

  • "Sylvania Photolamps." Catalog. GTE Sylvania, .
  • "Lampes Orbitec." Catalog. ORBITEC, .
  • "GE Rolodex Projector Cross Reference." Rolodex. Photo Lamp Department General Electric Co. & Popular Photography Magazine, .
