CWG ANSI Code
CWG ANSI is a T8 lamp with a B15d base operating at 200 watts . It has a color temperature of 3075 Kelvin. It has a Clear finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CWG lamps.

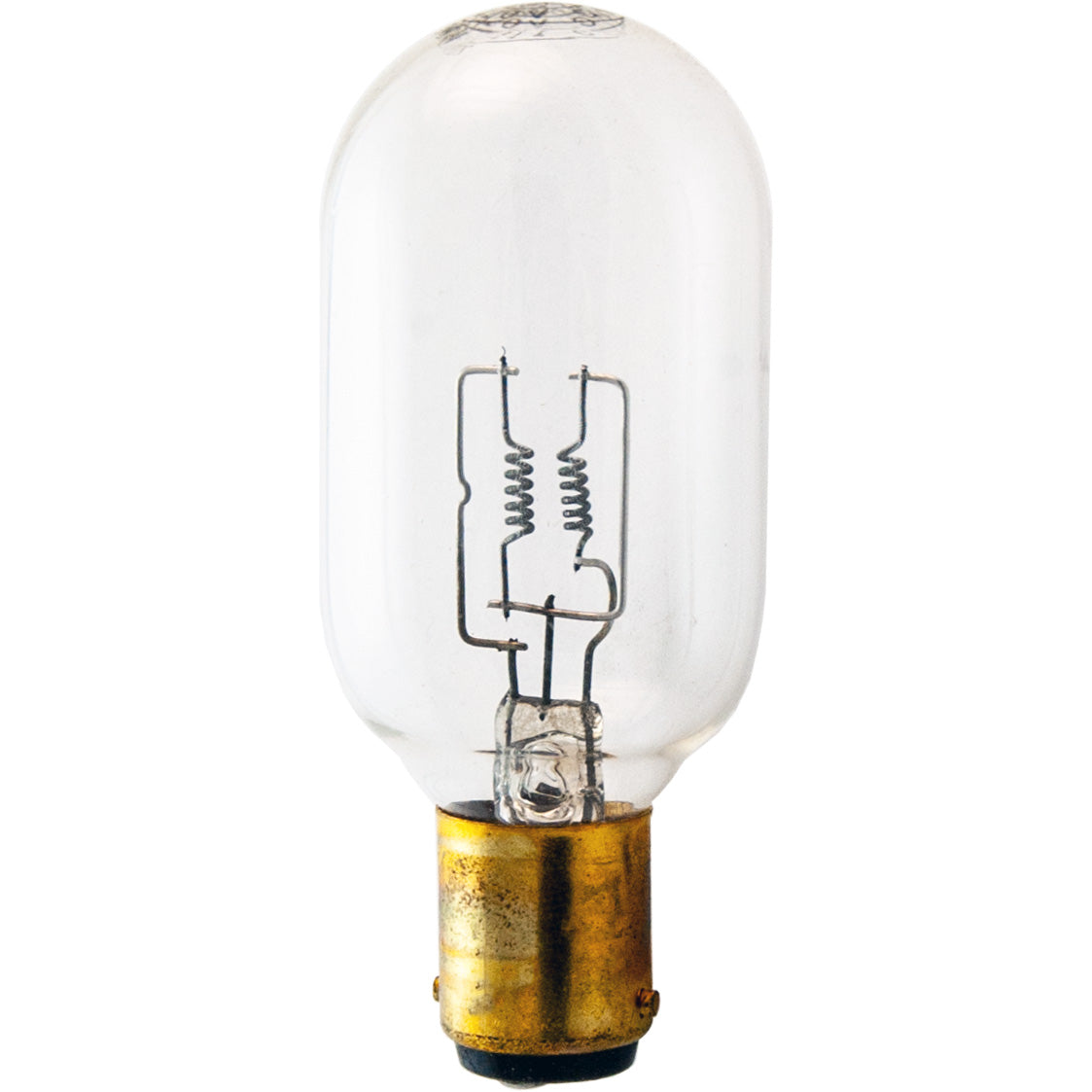

CWG Photograph |
 |
Electrical Specifications | |
| Watts | 200 |
|---|---|
Photometrics | |
| Color Temperature | 3075 |
|---|---|
| Light Center Length (LCL) | 1 3/8 |
| Lumens | 4600 |
Physical Characteristics | |
| Base | B15d |
|---|---|
| Bulb Shape | T8 |
| Filament | 2CC-8 |
| Finish | Clear |
| Max Overall Length (MOL) | 3 |
Operating Characteristics | |
| Burn Position | VBD |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | CWG |
|---|---|
| Code Type | ANSI |
T8 Shape | |
 | |
| Diameter Designation | 8/8" |
|---|---|
| Glass Diameter | 1" (1.0") |
| Shape Code | T |
| Shape Classification | Tubular |
2CC-8 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| ANSI | CWG | ||
