CXG ANSI Code
CXG ANSI is a T10 lamp with a G17q-A2 base operating at 150 watts . It has a Obscured Top finish. The average rated life is 15 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CXG lamps.

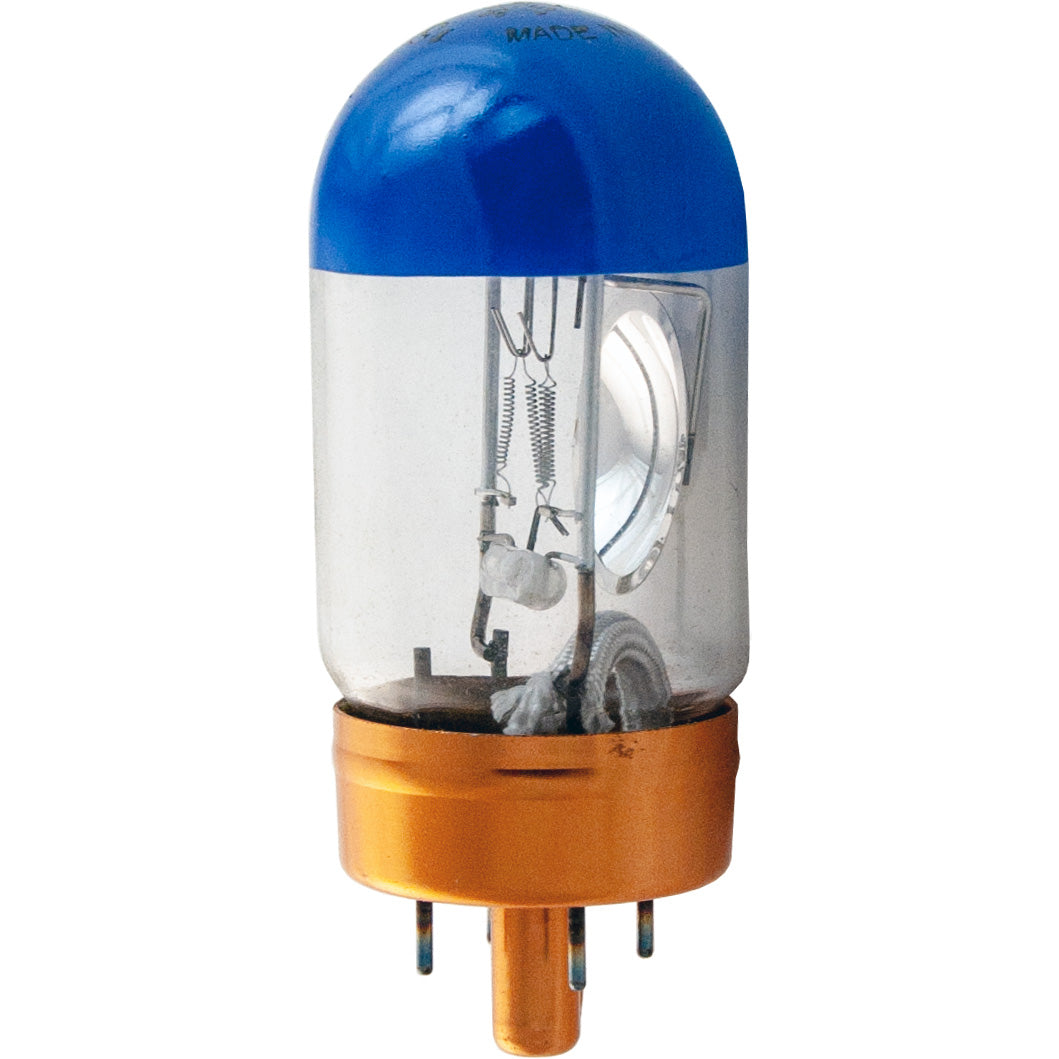

CXG Photograph |
 |
Electrical Specifications | |
| Watts | 150 |
|---|---|
Photometrics | |
| Light Center Length (LCL) | 1 5/16 |
|---|---|
Physical Characteristics | |
| Base | G17q-A2 |
|---|---|
| Bulb Shape | T10 |
| Filament | CC-13 |
| Finish | Obscured Top |
| Max Overall Length (MOL) | 3 1/8 |
Operating Characteristics | |
| Burn Position | VBD |
|---|---|
| Life Hours | 15 |
General Information | |
| Lamp Code | CXG |
|---|---|
| Code Type | ANSI |
T10 Shape | |
 | |
| Diameter Designation | 10/8" |
|---|---|
| Glass Diameter | 1 1/4" (1.25") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-13 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| ANSI | CXG | ||
