CXL ANSI Code

CXL ANSI is a T9.5 lamp with a P15s30A base operating at 50 watts and 8 volts. It has a color temperature of 3200 Kelvin. It has a Obscured top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CXL lamps.

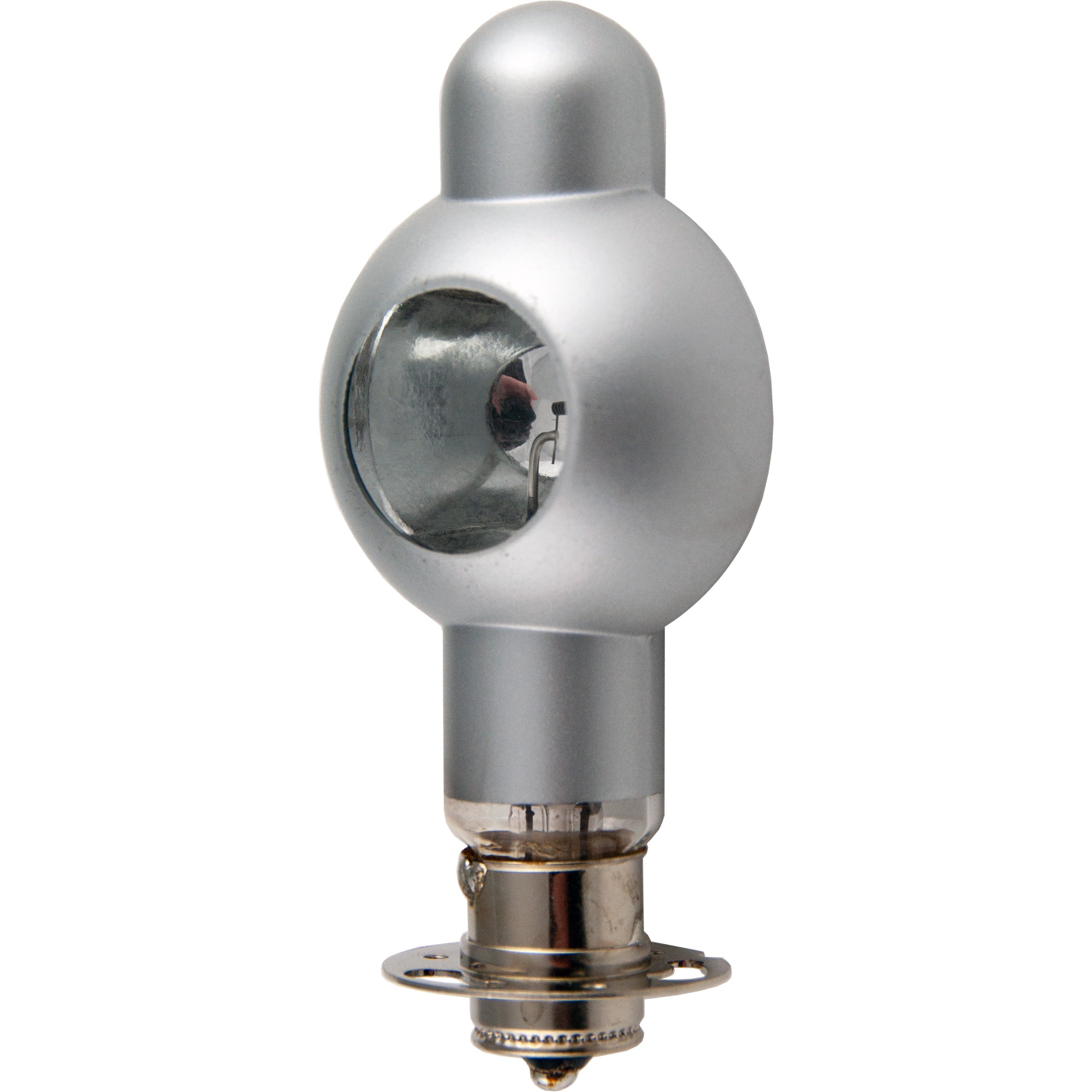

CXL Photograph

CXL

Electrical Specifications

Amps6.25
Volts8
Watts50

Photometrics

Color Temperature3200
Light Center Length (LCL)1 17/20

Physical Characteristics

BaseP15s30A
Bulb ShapeT9.5
FilamentC-6
FinishObscured top
Max Overall Length (MOL)3 25/32

Operating Characteristics

Burn PositionBase Down
Life Hours25

General Information
Lamp CodeCXL
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T9.5 Shape

T9.5
Diameter Designation9.5/8"
Glass Diameter 1 3/16" (1.1875")
Shape CodeT
Shape ClassificationTubular

C-6 Filament

C-6
Coil TypeC - Single Coil

P15s30A Base

P15s30A

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSICXL

Equipment Used In

BrandModelType
A.R. Bernard (GAF) Viceroy 904 8mm Projector Movie
A.R. Bernard (GAF) Viceroy 804 8mm Projector Movie
A.R. Bernard (GAF) Ricoh Auto-8 Trioscope 8mm Projector Movie
A.R. Bernard (GAF) Viceroy 806 8mm Projector Movie
A.R. Bernard (GAF) Goldcrest Dual 8 8mm Projector Movie
Agfa-Gevaert Sonector 8
Argus 890Z 8mm Projector Movie
Argus 892Z 8mm Projector Movie
Argus 880Z 8mm Projector Movie
Bauer T-3
Bell and Howell Autoload Magnetic 488Z
Bolex Super-8
Bolex Auto
Bolex 18-5
Bolex Zoom
Borg Warner Ricoh Trioscope Auto 8-P
Camera Specialty Co. Hawk Dual-8 8mm Projector Movie
Camera Specialty Co. Fenco Dual-8 8mm Projector Movie
Canon Cinestar P-8S 8mm Projector Movie
Canon Cinestar P-8 Super 8 8mm Projector Movie
Chinon 4000-GL 8mm Projector Movie
Chinon Whisper 8mm Projector Movie
Chinon 400-Z 8mm Projector Movie
Chinon 3000-GL 8mm Projector Movie
Chinon 2000-GL 8mm Projector Movie
Copal / Sekonic 260-S
Copal / Sekonic Copal 290-S
Copal / Sekonic 80-P
Copal / Sekonic Copal 290
Copal / Sekonic 80-PB
Copal / Sekonic 80-J
Copal / Sekonic Copal 290-D
Eumig Mark 502D
Eumig Mark 501
Eumig Mark 502
Eumig Mark S-712D
Fairchild Camera & Instrument Mark IV/S Projector
Fairchild Camera & Instrument Mark IV Projector
Fairchild Camera & Instrument Mark V Projector
Fairchild Camera & Instrument AV-400 Projector
Fuji (Fujica) Masterload
Fuji (Fujica) M-2
Fuji (Fujica) M-20
Fuji (Fujica) Fujicaload
Fuji (Fujica) M-3
Fuji (Fujica) 8P
Fuji (Fujica) M-33
Hanimex Model 1000
Hanimex Model 924
Hanimex 800 Series
Hanimex Model 72
Hanimex Model 900
Hanimex 900 Series
John Benton Incorporated Istitor
Keystone Camera Co. Inc. Deluxe K-90 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 2500 Projector Slide / Filmstrip
Keystone Camera Co. Inc. Deluxe K-85 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 2500-Z Projector Slide / Filmstrip
Keystone Camera Co. Inc. Deluxe K-95 Projector Slide / Filmstrip
Leitz Cinovid 8
Lenco Photo Products Lentar 805S 8mm Projector Movie
Lenco Photo Products Lentar 810B 8mm Projector Movie
Lenco Photo Products Golcrest 800 Dual 8mm Projector Movie
Lenco Photo Products Lentar 815D 8mm Projector Movie
Lenco Photo Products Lentar 810D 8mm Projector Movie
Lenco Photo Products Lentar 934D 8mm Projector Movie
Minolta Autodual 8 8mm Projector Movie
Osawa Autoload Magnetic 488Z Projector
Petri-Kine Camera Co. Hawk 8mm Projector Movie
Petri-Kine Camera Co. Sono Hawk 8mm Projector Movie
Petri-Kine Camera Co. Raynox Dual 8mm Projector Movie
Petri-Kine Camera Co. Dual 8mm Projector Movie
Petri-Kine Camera Co. Dahlia 8mm Projector Movie
Petri-Kine Camera Co. Royal RS 8mm Projector Movie
Ponder & Best Dual-8 733A
Royal Camera Company Dual 8mm Projector Movie
Royal Camera Company Hawk 8mm Projector Movie
Royal Camera Company RS 8mm Projector Movie
Royal Camera Company Sono Hawk 8mm Projector Movie
Royal Camera Company Sound 8mm Projector Movie
Sankyo Dualux 1000
Sankyo P-1500
Sankyo Dualux 8
Yashica 8P3-RS 8mm Projector Movie
Zeiss Movilux 8B
Zeiss Movilux 8A
Zeiss Movilux 8R

CXL may also be listed as:
104001040 EIKO01040 UPC01040 WIKO
031293010407 EIKO048777360477 UPC1000148 USHIO50T10P15S/R SYLVANIA
50T10P30S/R SYLVANIA50T10SCP/R SYLVANIA50WATT-T10-P15S30-R SYLVANIA58-8007
58.800758.8007/8V/50W OSRAM588007 OSRAMA1-202 ATLAS
A1-202 LIFA1-202 THORNA1-202-8V-50W-P15S30 LIFA1-202/8V/50W
A1-202/8V/50W ATLASA1-202/8V/50W LIFA1-202/8V/50W THORNA1/202-8V-50W-P30S-T30-C6-OBSCURED-TOP-25H-VBD-96MMMOL-47MMLCL-I-INTERIOR-ELLIPSOIDAL-ALUMINISED-MIRROR-FORCED-COOLING
BW-CXL-CXRCXLCXL ANSICXL ASA
CXL INTERLIGHTCXL SYLVANIACXL USHIOCXL WIKO
CXL-50W-8V-P30S USHIOCXL-8VCXL-8V ANSICXL-8V ASA
CXL-8V-50WCXL-8V-50W ANSICXL-8V-50W ASACXL-8V-50W-P30S USHIO
CXL-8V-50W-P30S-T9-C6-OBSCURED-TOP-3200K-25H-BD-3-25/32MOL-1-17/20LCL-I-8MM-MOVIE-PROJECTOR-INTERNAL-METAL-REFLECTORCXL-8VOLT ANSICXL-8VOLT ASACXL-CXR EIKO
CXL-CXR WIKOCXL-CXR-KPGT ANSICXL-CXR-KPGT ASACXL-CXR/8V-50W-SC-PREFOCUS LAMPTECH
CXL-KP-GT SYLVANIACXL-KP-GT-CXR SYLVANIACXL/8CXL/8 ANSI
CXL/8 ASACXL/8V/50W/P15S30A ANSICXL/CXRCXL/CXR ANSI
CXL/CXR BULB-DIRECTCXL/CXR INTERLIGHTCXL/CXR LAMPTECHCXL/CXR USHIO
CXL/CXR-50W-8V-P30S USHIOCXL/CXR-8V-50W-P30S USHIOCXL/CXR/KPGTI/8V/50W/P15S30/T9.5/C6/OT/25H
I/8V/50W/P15S30/T9.5/C6/OT/25H/A1-202-8V-50W-P15S30 LIFI/8V/50W/P15S30/T9.5/CL/OT/25HI/8V/50W/P15S30/T9.5/CL/OT/25H/A1-202-8V-50W-P15S30 LIFI/8V/50W/P30S/RP44MM
INC-8V-50W-C6-25HR USHIOINC-8V-50W-C6-25HR/8V/50W/P30S USHIOINC-8V-50W-C6-25HR/8V/50W/P30S/CXL/CXR USHIOINC-8V-50W-C6-25HR/CXL/CXR USHIO
