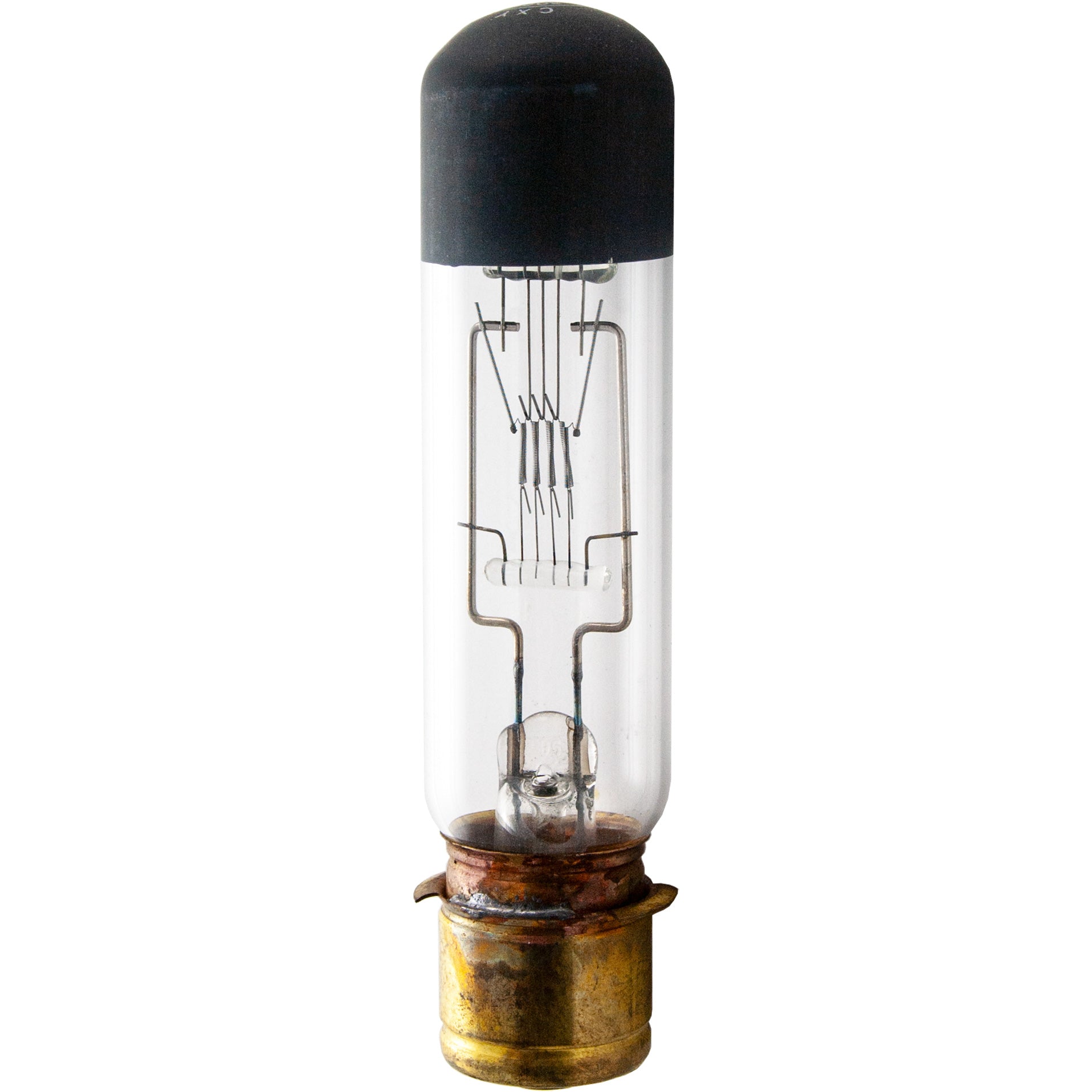

CXY ANSI Code

Electrical Specifications
Amps	2.4
Volts	125
Watts	300

Photometrics
Candlepower	580
Color Temperature	3100
Lumens	7300

Physical Characteristics
Base	P28s
Bulb Shape	T10
Filament	C-13D
Finish	Obscured Top
Light Center Length (LCL)	55.5mm
Max Overall Length (MOL)	135mm

Operating Characteristics
Burn Position	VBD
Life Hours	25

General Information
Lamp Code	CXY
Code Type	ANSI
Specification Reference	ANSI-SR24F2002
