CXZ ANSI Code

CXZ ANSI is a T8 lamp with a G38 base operating at 1500 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 400 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CXZ lamps.

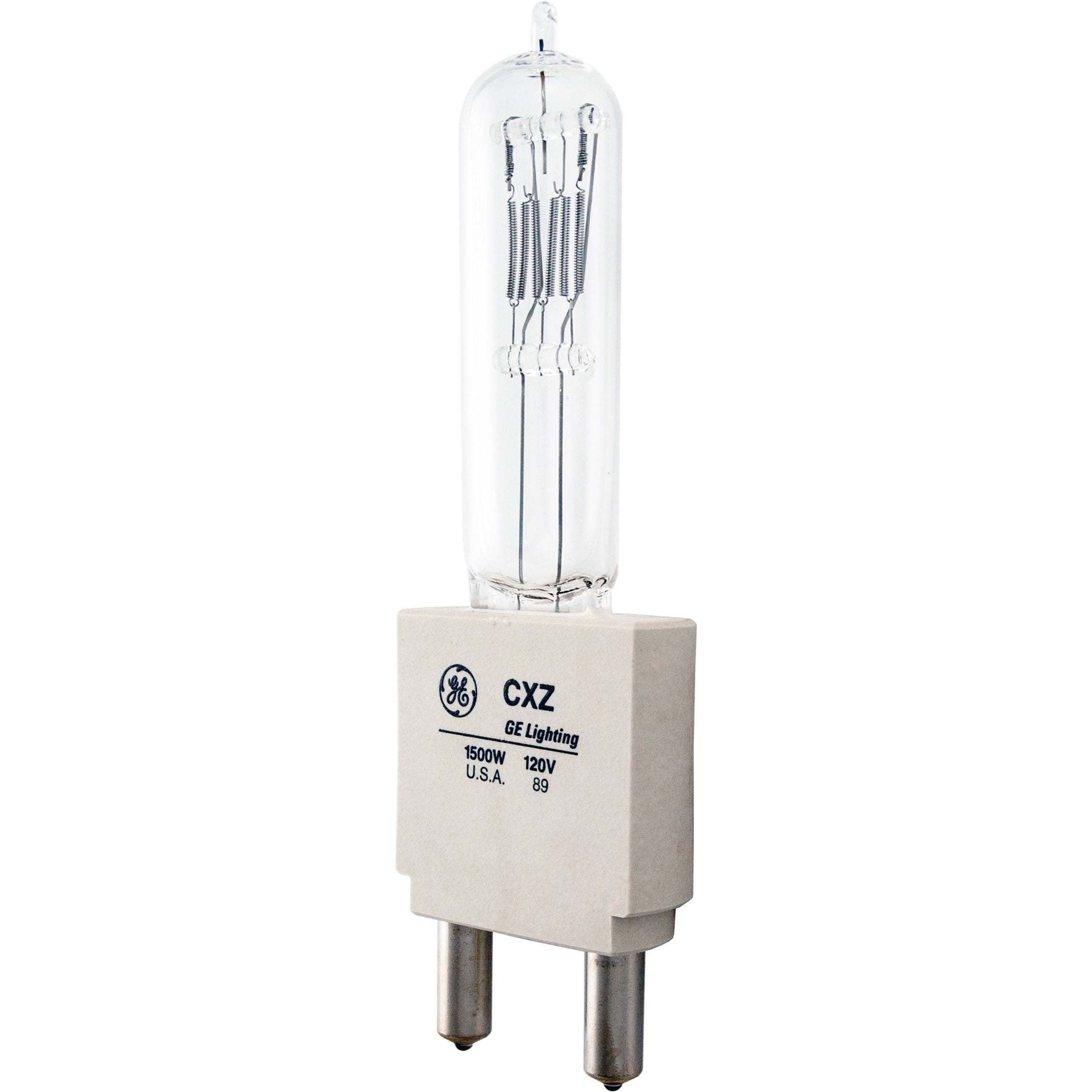

CXZ Photograph

CXZ

Electrical Specifications

Amps12.5
Volts120
Watts1500

Photometrics

Candlepower3100
Color Temperature3200
Light Center Length (LCL)5
Lumens44500

Physical Characteristics

BaseG38
Bulb ShapeT8
FilamentC-13
FinishClear
Max Overall Length (MOL)8 1/2

Operating Characteristics

Burn PositionVBD ± 90°
Life Hours400

General Information
Lamp CodeCXZ
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T8 Shape

T8
Diameter Designation8/8"
Glass Diameter 1" (1.0")
Shape CodeT
Shape ClassificationTubular

C-13 Filament

C-13
Coil TypeC - Single Coil

G38 Base

G38

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsCXZ1500W, 120V, Q1500T10/4CL
Microlites120-1500-36
Microlites120-1500-36Z
Canimpex120-1500-36
Canimpex120-1500-36Z

Equipment Used In

BrandModelType
ARRI Studio Fresnel Stage / Studio
ARRI Fresnel 1500W-2000W Stage / Studio
