CYB ANSI Code

CYB ANSI is a T10 lamp with a BA15s base operating at 300 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Obscured top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CYB lamps.

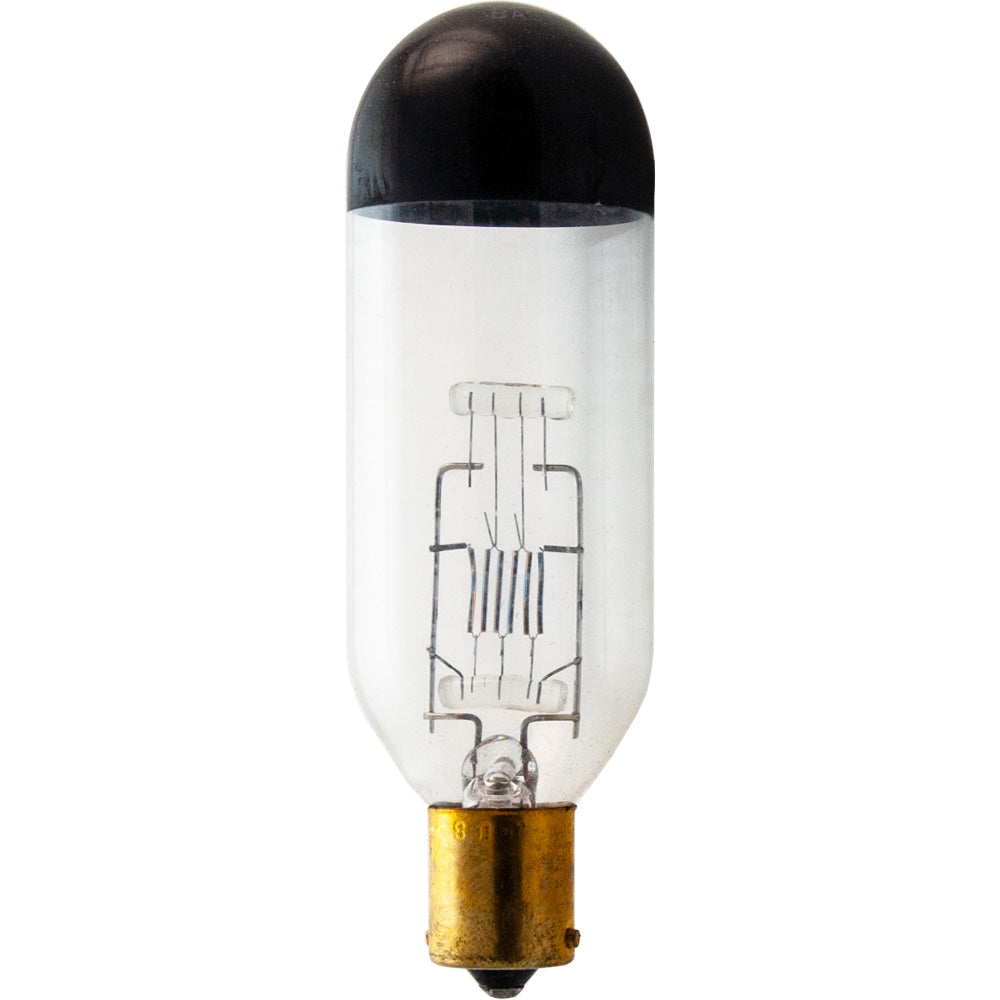

CYB Photograph

CYB

Electrical Specifications

Amps2.5
Volts120
Watts300

Photometrics

Candlepower580
Color Temperature3200
Light Center Length (LCL)1 3/8
Lumens7300

Physical Characteristics

BaseBA15s
Bulb ShapeT10
FilamentC-13
FinishObscured top
Max Overall Length (MOL)4 1/8

Operating Characteristics

Burn PositionBDTH
Life Hours25

General Information
Lamp CodeCYB
Code TypeANSI

T10 Shape

T10
Diameter Designation10/8"
Glass Diameter 1 1/4" (1.25")
Shape CodeT
Shape ClassificationTubular

C-13 Filament

C-13
Coil TypeC - Single Coil

BA15s Base

BA15s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSICYB

Equipment Used In

BrandModelType
Mast Development RW Projector Slide / Filmstrip
Mast Development Random Access 132 Projector Slide / Filmstrip
Revere Camera Co. 444 Projector Slide / Filmstrip

CYB may also be listed as:
300T10SC GENERAL-ELECTRIC300W/T10/SCCYBCYB ANSI
CYB ASACYB GENERAL-ELECTRICCYB INTERLIGHTCYB-120 ANSI
CYB-120 ASACYB-120 VOLT ANSICYB-120 VOLT ASACYB-120V ANSI
CYB-120V ASACYB-120V-300W ANSICYB-120V-300W ASACYB-120V/120V/300W/BA15S ANSI
CYB/120V GENERAL-ELECTRICCYB/120V/300W/BA15S ANSII/120V/300W/BA15S/T10/C13/OT/25H/CYBI/120V/300W/BA15S/T10/OT/25H/CYB
PH/300T10SC GENERAL-ELECTRICPH/300W/T10/SCSP300T10BA15SC13OT120V-CYBSP300T10BA15SOT120V-CYB
SP300T10SCC13OT120V-CYBSP300T10SCOT120V-CYB
