CYE ANSI Code

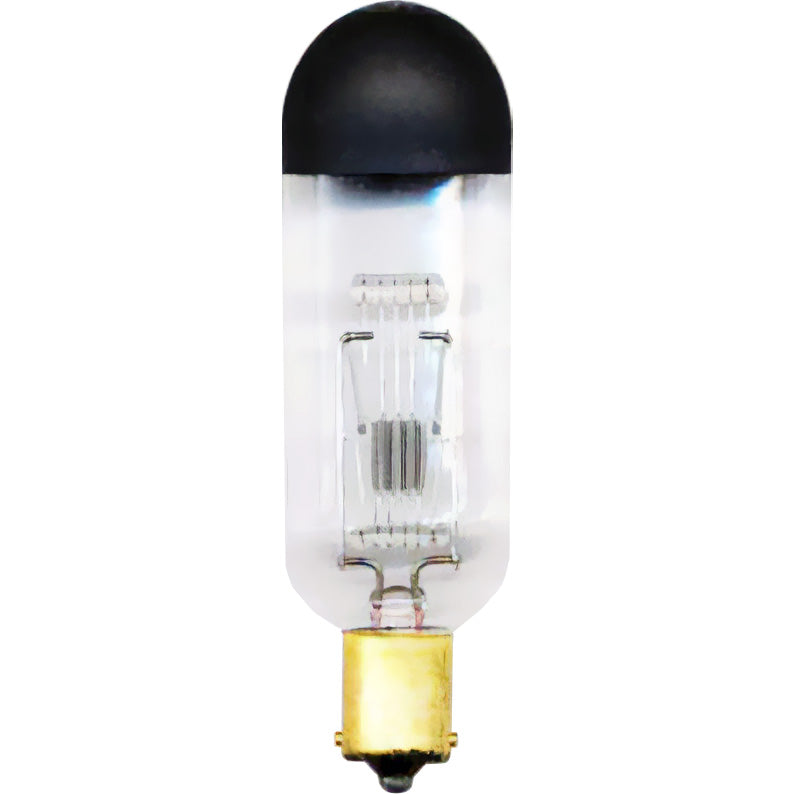

CYE ANSI is a T10 lamp with a BA15s base operating at 400 watts and 120 volts. It has a color temperature of 2980 Kelvin. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CYE lamps.

Electrical Specifications

Amps3.33
Volts120
Watts400

Photometrics

Candlepower590
Color Temperature2980
Light Center Length (LCL)1.37" (34.9mm)
Lumens7400

Physical Characteristics

BaseBA15s
Bulb ShapeT10
FilamentC-13D
Max Overall Length (MOL)4.13" (105mm)

Operating Characteristics

Life Hours200

General Information
Lamp CodeCYE
Code TypeANSI

T10 Shape

T10
Diameter Designation10/8"
Glass Diameter 1 1/4" (1.25")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

BA15s Base

BA15s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSICYE

Equipment Used In

BrandModelType
Calvin Company Movie-Mate CV-4 Projector
Calvin Company Movie-Mate CV-1 Projector
Calvin Company Movie-Mate CV-2 Projector
Calvin Company Movie-Mate CV-3 Projector
Dukane Vista Sell 576-71 Projector
Dukane Vista Sell 576-71A Projector
Dukane Vista Sell 576-71B Projector

CYE may also be listed as:
CYECYE ANSICYE ASACYE GENERAL-ELECTRIC
CYE INTERLIGHTCYE-120 VOLT ANSICYE-120 VOLT ASACYE-120V ANSI
CYE-120V ASACYE-120V-400W ANSICYE-120V-400W ASACYE-120V/120V/400W/BA15S ANSI
CYE/120V GENERAL-ELECTRICCYE/120V/400W/BA15S ANSII/120V/400W/BA15S/T10/C13D/OT/200HI/120V/400W/BA15S/T10/C13D/OT/200H/CYE
I/120V/400W/BA15S/T10/OT/200HI/120V/400W/BA15S/T10/OT/200H/CYESP400T10BA15SC13DOT120VSP400T10BA15SC13DOT120V-CYE
SP400T10BA15SOT120VSP400T10BA15SOT120V-CYESP400T10SCC13DOT120VSP400T10SCC13DOT120V-CYE
SP400T10SCOT120VSP400T10SCOT120V-CYE
