CYG ANSI Code
CYG ANSI is a T10 lamp with a P46s base operating at 300 watts . It has a color temperature of 3100 Kelvin. It has a Obscured top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CYG lamps.

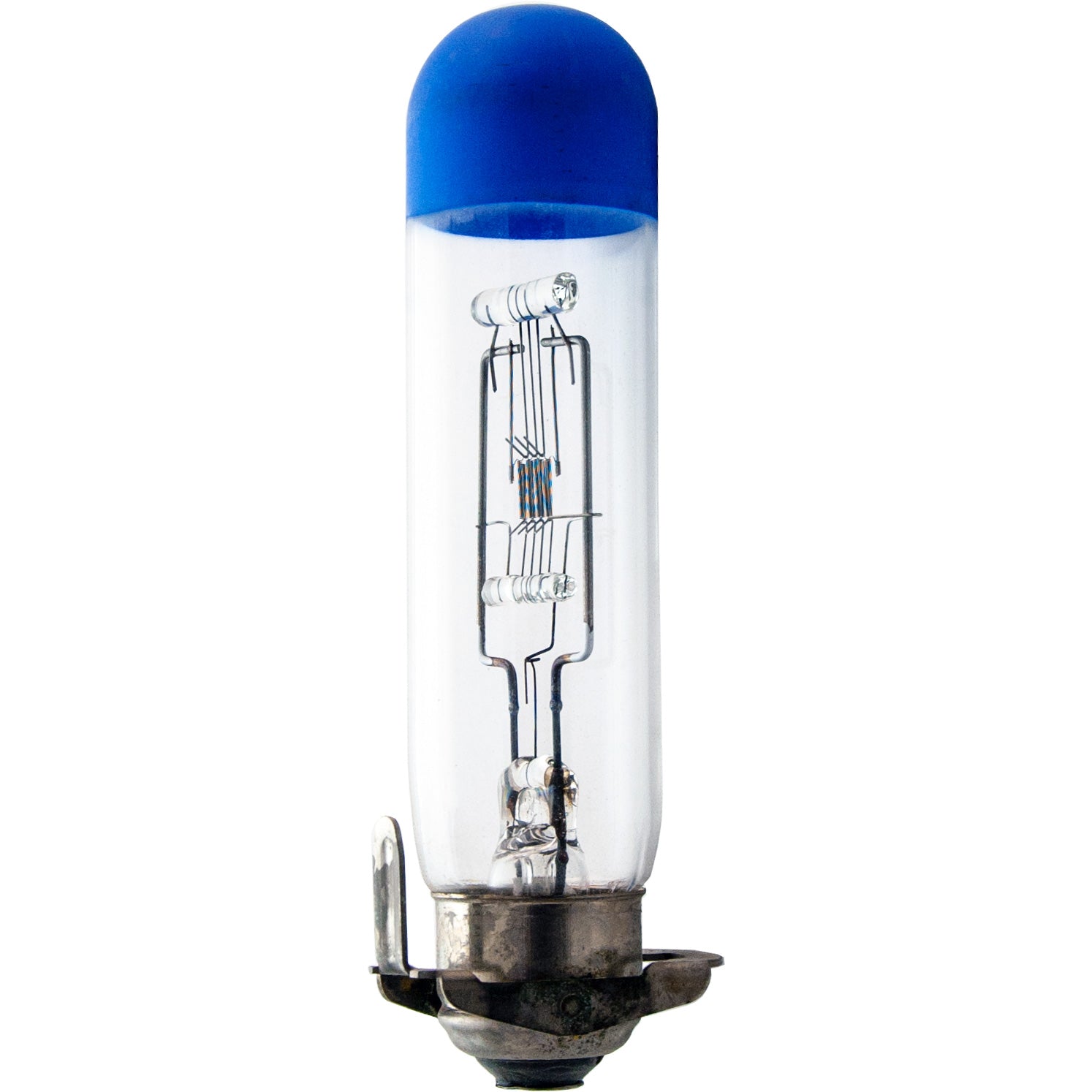

CYG Photograph |
 |
Electrical Specifications | |
| Watts | 300 |
|---|---|
Photometrics | |
| Color Temperature | 3100 |
|---|---|
| Light Center Length (LCL) | 2 5/16 |
| Lumens | 7300 |
Physical Characteristics | |
| Base | P46s |
|---|---|
| Bulb Shape | T10 |
| Filament | C-13D |
| Finish | Obscured top |
| Max Overall Length (MOL) | 5 1/2 |
Operating Characteristics | |
| Burn Position | Base Down |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | CYG |
|---|---|
| Code Type | ANSI |
T10 Shape | |
 | |
| Diameter Designation | 10/8" |
|---|---|
| Glass Diameter | 1 1/4" (1.25") |
| Shape Code | T |
| Shape Classification | Tubular |
C-13D Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
P46s Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| ANSI | CYG | ||
