CYM ANSI Code

CYM ANSI is a T10 lamp with a BA15s base operating at 300 watts and 120 volts. It has a color temperature of 3150 Kelvin. It has a Obscured top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CYM lamps.

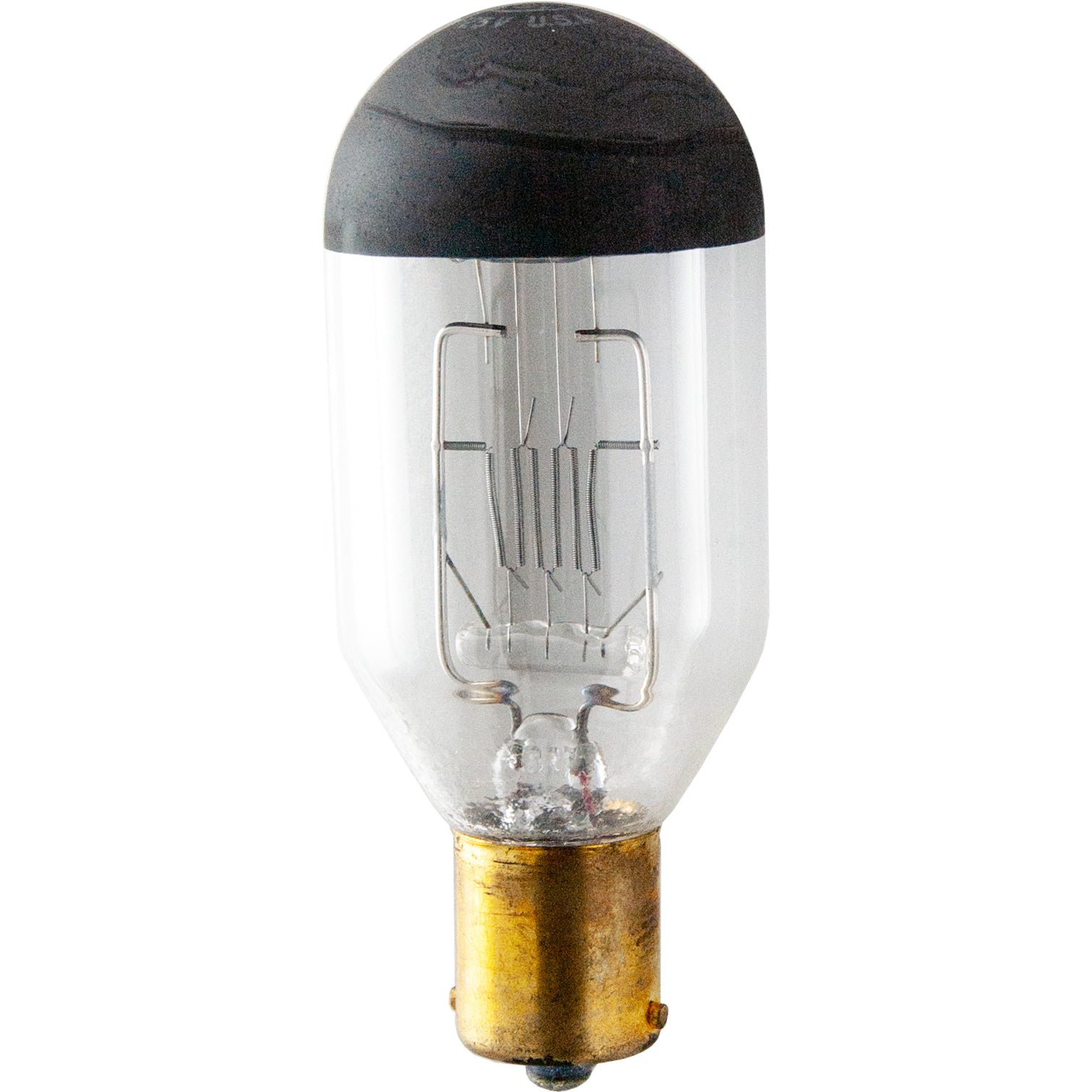

CYM Photograph

CYM

Electrical Specifications

Amps2.5
Volts120
Watts300

Photometrics

Candlepower590
Color Temperature3150
Light Center Length (LCL)1 3/8
Lumens7400

Physical Characteristics

BaseBA15s
Bulb ShapeT10
FilamentC-13
FinishObscured top
Max Overall Length (MOL)3 3/16

Operating Characteristics

Burn PositionBase Down
Life Hours25

General Information
Lamp CodeCYM
Code TypeANSI

T10 Shape

T10
Diameter Designation10/8"
Glass Diameter 1 1/4" (1.25")
Shape CodeT
Shape ClassificationTubular

C-13 Filament

C-13
Coil TypeC - Single Coil

BA15s Base

BA15s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSICYM

Equipment Used In

BrandModelType
Bell and Howell Headliner 707-EXP
Bell and Howell Headliner 708-EXP
Bell and Howell Headliner Duo 708-M
Bell and Howell Headliner 707-M
Bell and Howell Headliner 707
Bell and Howell Headliner 706
Bell and Howell Headliner Duo 708
Bell and Howell Headliner 706-S
Beseler Photo Marketing (Charles Beseler) Salesmate 8500 Overhead Projector
Beseler Photo Marketing (Charles Beseler) Displaymate Enlarger / Photo Printer
Brumberger 1331
Brumberger 1330
COC (Graflex) Rotator A-111 Projector Slide / Filmstrip
COC (Graflex) Rotator M-511 Projector Slide / Filmstrip
Camera Optics Manufacturing Corp. Rotator M-511 Projector Slide / Filmstrip
Camera Optics Manufacturing Corp. Rotator A-111 Projector Slide / Filmstrip
Dukane Manual Matic 14A335A Projector
Dukane Manual Matic 14A335C Projector
Dukane Micromatic 14A390D Projector
Dukane Automatic 14A390D Projector
Dukane Micromatic 14A390A Projector
Dukane Remote Control 576-47A Projector
Dukane Automatic 14A390C Projector
Dukane Manual 14335C Projector
Dukane Remote Control 576-47B Projector
Dukane Manual 14335D Projector
Dukane Manual Matic 14A335D Projector
Dukane Micromatic 14A390B Projector
Dukane Manual Matic 14A335B Projector
Dukane Micromatic 14A390C Projector
Eastman Kodak 301
Eastman Kodak 305 Model 5
Eastman Kodak 303 Model 5
Eastman Kodak Kodak 300 Model 1
Eastman Kodak Kodaslide Signet 300
Eastman Kodak 300 Model 1
Eastman Kodak 300 Model 3
Eastman Kodak 361
Eastman Kodak 300 Model 5
Eastman Kodak Kodak Slide
Eastman Kodak 303 Model 3
Eastman Kodak Kodak V
Kalimar Incorporated SA-300
Manon Projector Slide
McClure Projectors Educator Projector
Minolta Slide 16 Slide Projector
Sawyer's Inc. Viewmaster Deluxe 300 Projector
Sawyer's Inc. Custom 300 Projector
Sawyer's Inc. Viewmaster Custom 300 Projector
Sawyer's Inc. Deluxe 300 Projector
Singer Corporation Rotator M-511
Singer Corporation Graflex A-11
Singer Corporation Rotator A-2
Singer Corporation Graflex M-511
Standard Projector & Equipment CP-300 Sound Filmstrip
Tech Photo Products Inc. Colormatic 35 Overhead Projector
Tech Photo Products Inc. Colormatic EC Overhead Projector

CYM may also be listed as:
300T10-2BA15S SYLVANIA300T10-2SC SYLVANIA300WATT-T10-2-BA15S SYLVANIA71372 SYLVANIA
CYM ANSICYM ASACYM BULB-DIRECTCYM SYLVANIA
CYM-120 ANSICYM-120 ASACYM-120 VOLT ANSICYM-120 VOLT ASA
CYM-120V ANSICYM-120V ASACYM-120V-300WCYM-120V-300W ANSI
CYM-120V-300W ASACYM-120V-300W-BA15S-T10-C13-OBSCURED-TOP-7500L-3200K-25H-BD-3-3/16MOL-1-3/8LCL-I-SLIDE-PROJECTORCYM-120V/120V/300W/BA15S ANSICYM-CYC SYLVANIA
CYM/120V/300W/BA15S ANSICYM/CYFI/120V/300W/BA15S/T10/C13/OT/25H/CYMI/120V/300W/BA15S/T10/OT/25H/CYM
SP300T10BA15SC13OT120V-CYMSP300T10BA15SOT120V-CYMSP300T10SCC13OT120VSP300T10SCC13OT120V-CYM
SP300T10SCOT120V-CYM
