CYS ANSI Code

CYS ANSI is a T12 lamp with a G17q-A2A base operating at 1200 watts and 120 volts. It has a color temperature of 3350 Kelvin. It has a Obscured Top finish. The average rated life is 10 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI CYS lamps.

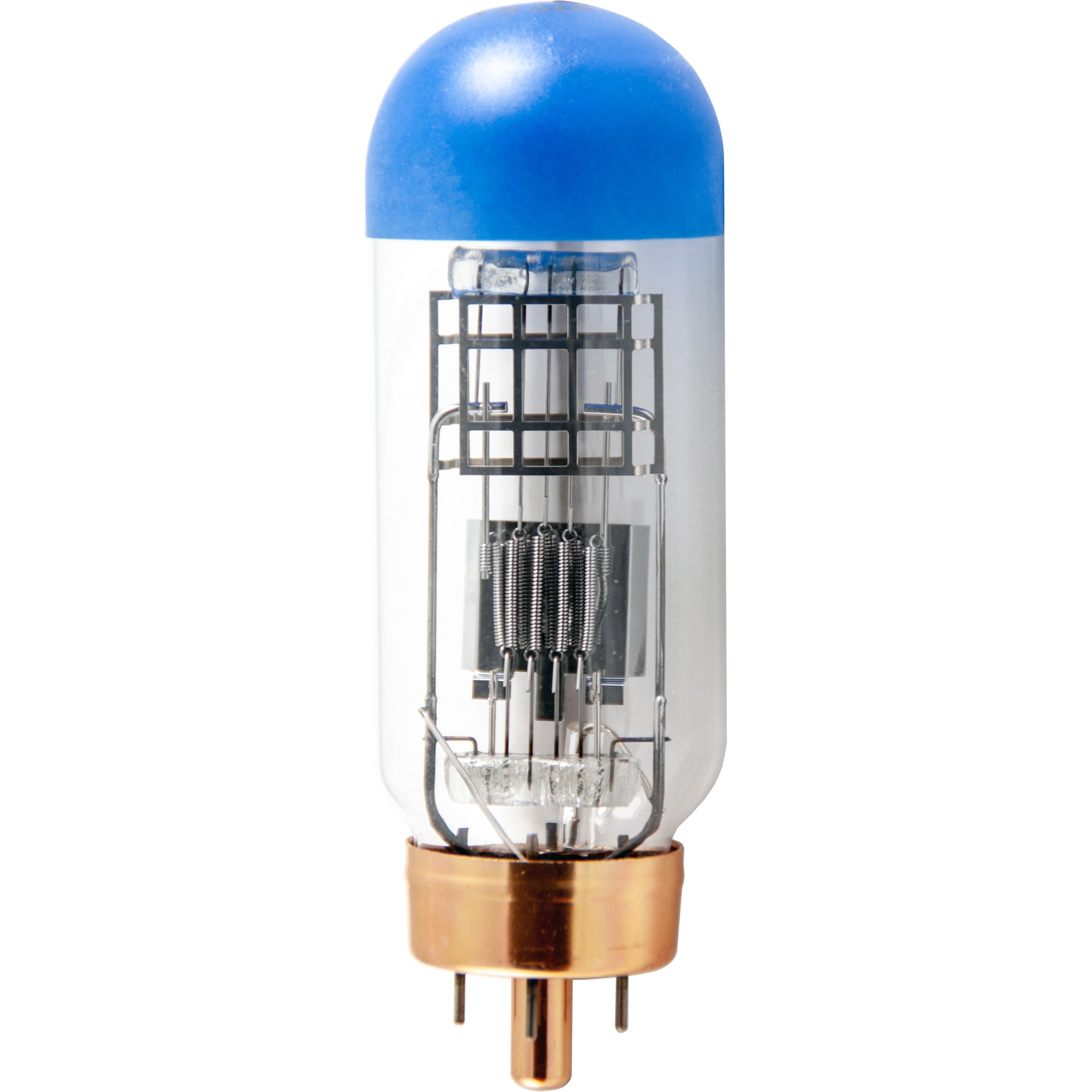

CYS Photograph

CYS

Electrical Specifications

Amps10
Volts120
Watts1200

Photometrics

Color Temperature3350
Light Center Length (LCL)1 9/16
Lumens38200

Physical Characteristics

BaseG17q-A2A
Bulb ShapeT12
FilamentC-13D
FinishObscured Top
Max Overall Length (MOL)4 5/8

Operating Characteristics

Burn PositionBase Down
Life Hours10

General Information
Lamp CodeCYS
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

G17q-A2A Base

G17q-A2A

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsCYS1200W, 120-125V
Microlites115-1150-31S
Microlites120-1200-31S
Canimpex115-1150-31S
Canimpex120-1200-31S

Equipment Used In

BrandModelType
Bell and Howell Filmosound Specialist 552
Bell and Howell Filmosound Specialist 554
Bell and Howell Filmosound Specialist T
Bell and Howell Filmosound Specialist 540
Bell and Howell Filmosound Specialist 556
Bell and Howell Filmosound Specialist 545-T
Bell and Howell Filmosound Specialist 546
Bell and Howell Filmosound Specialist 553
Bell and Howell Filmosound Specialist 550-T
Bell and Howell Filmosound Specialist 551
Bell and Howell Filmosound Specialist 556-T
Bell and Howell Filmosound Specialist 552-EXT
Bell and Howell Filmosound Specialist 552-T
Bell and Howell Filmosound Specialist 535-T
Bell and Howell Filmosound Specialist 550
Bell and Howell Filmosound Specialist 541
Bell and Howell Filmosound Specialist 545-EXT
Bell and Howell Filmosound Specialist 537
Bell and Howell Filmosound Specialist 535
Bell and Howell Filmosound Specialist 541-T
Bell and Howell Filmosound Specialist 544
Bell and Howell Filmosound Specialist 545
Bell and Howell Filmosound Specialist 542
Bell and Howell Filmosound Specialist 555
Bell and Howell Filmosound Specialist 535-Y
Buhl Ektagraphic
Buhl Ektagraphic Hi-Lite
George R. Snell Associates RA-500
George R. Snell Associates RA-1000
Ingenuics Invision IN552
RCA 1600 Projector
RCA 1600-XL Projector
Spindler & Sauppe Selectroslide 766 Ultrabright Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 766 Projector Slide / Filmstrip

Sources

  • "Sylvania Photolamps." Catalog. GTE Sylvania, .
  • "GE Rolodex Projector Cross Reference." Rolodex. Photo Lamp Department General Electric Co. & Popular Photography Magazine, .
