DAC ANSI Code

DAC ANSI is a T10 lamp with a G17q-A24B base operating at 150 watts and 120 volts. It has a color temperature of 3000 Kelvin. It has a Obscured Top finish. The average rated life is 500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DAC lamps.

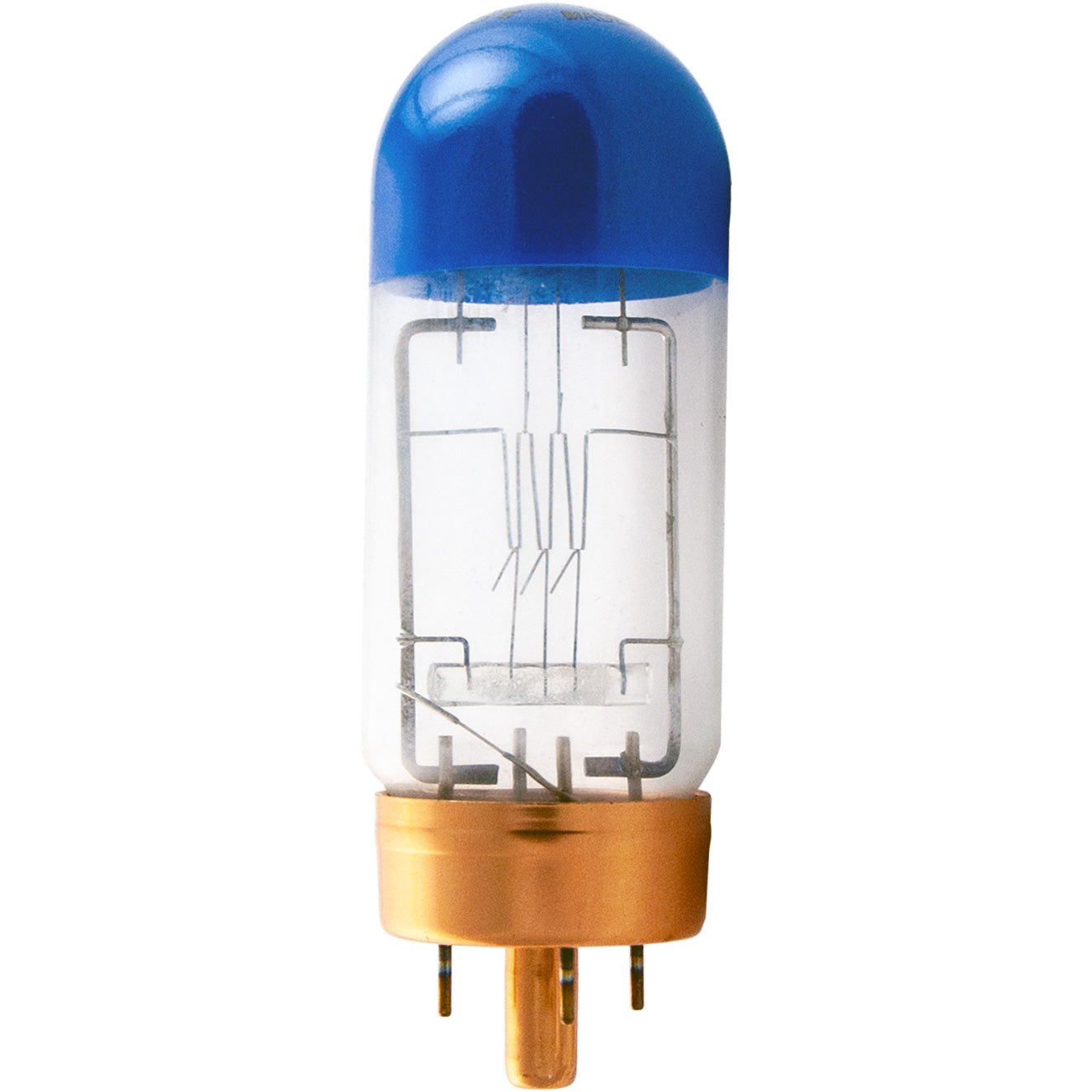

DAC Photograph

DAC

Electrical Specifications

Amps1.25
Volts120
Watts150

Photometrics

Color Temperature3000
Light Center Length (LCL)1 9/16

Physical Characteristics

BaseG17q-A24B
Bulb ShapeT10
FilamentC-13
FinishObscured Top
Max Overall Length (MOL)4

Operating Characteristics

Burn PositionVBD ± 45
Life Hours500

General Information
Lamp CodeDAC
Code TypeANSI

T10 Shape

T10
Diameter Designation10/8"
Glass Diameter 1 1/4" (1.25")
Shape CodeT
Shape ClassificationTubular

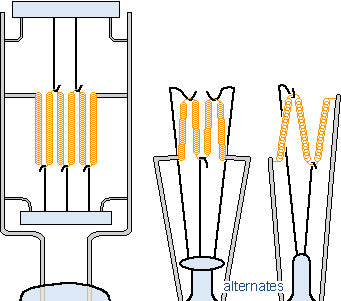

C-13 Filament

C-13
Coil TypeC - Single Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIDAC

Equipment Used In

BrandModelType
AV Concepts FS-150
AV Concepts SFS-150
EDL Incorporated AUD-X-READER
