DAG ANSI Code

DAG ANSI is a T10 lamp with a P46l base operating at 500 watts and 120 volts. It has a color temperature of 3250 Kelvin. It has a Obscured top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DAG lamps.

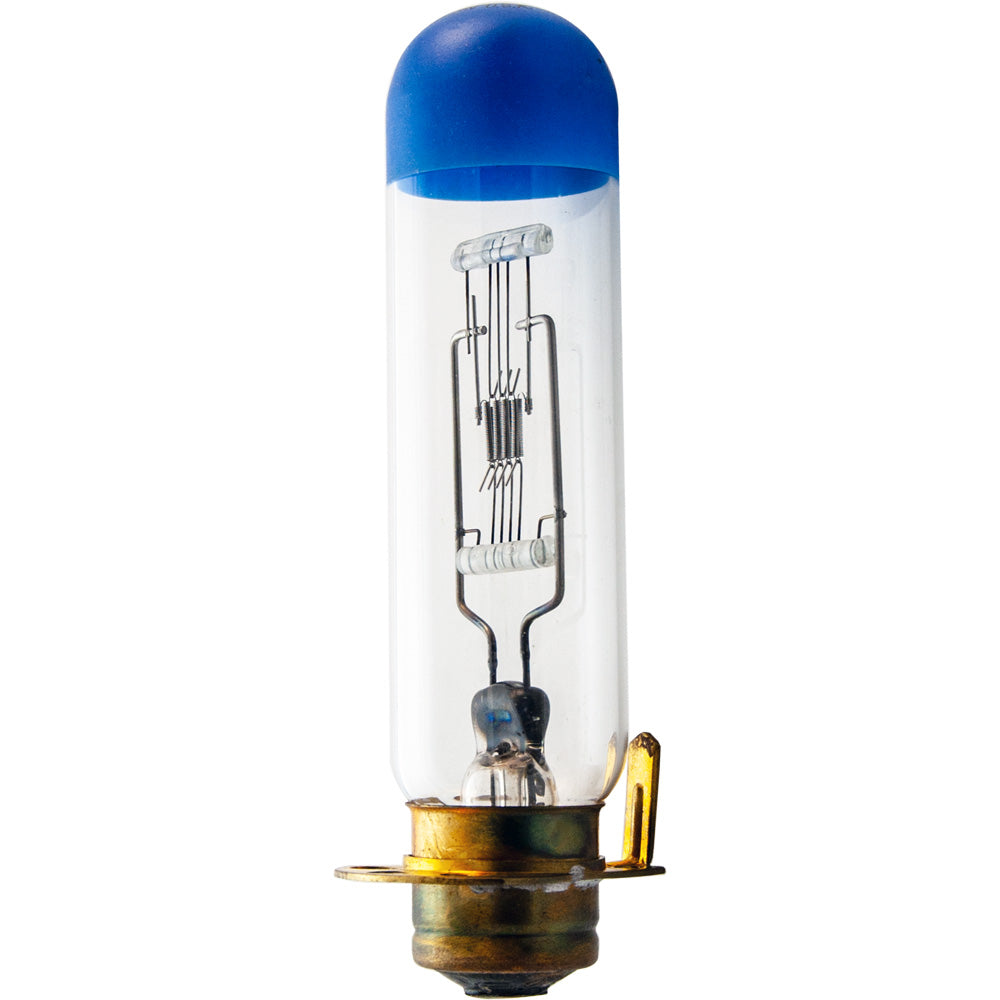

DAG Photograph

DAG

Electrical Specifications

Amps4.17
Volts120
Watts500

Photometrics

Candlepower1100
Color Temperature3250
Light Center Length (LCL)2 5/16
Lumens13200

Physical Characteristics

BaseP46l
Bulb ShapeT10
FilamentC-13D
FinishObscured top
Max Overall Length (MOL)4 3/4

Operating Characteristics

Burn PositionBase Down
Life Hours25

General Information
Lamp CodeDAG
Code TypeANSI

T10 Shape

T10
Diameter Designation10/8"
Glass Diameter 1 1/4" (1.25")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

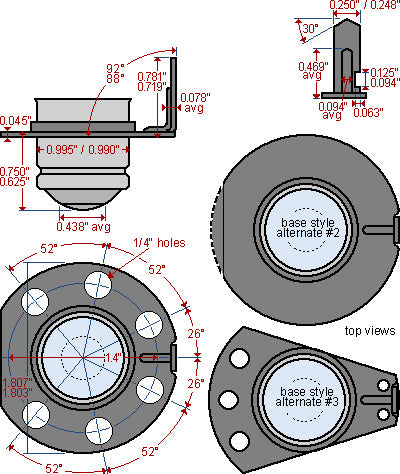

P46l Base

P46l

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
MicrolitesDAG
MicrolitesDAG-500WATT
MicrolitesDAG/500
MicrolitesDAG/500W
MicrolitesDAG/CYG
CanimpexDAG
CanimpexDAG-500WATT
CanimpexDAG/500
CanimpexDAG/500W
CanimpexDAG/CYG

Equipment Used In

BrandModelType
Bell and Howell Filmosound 120-I
Bell and Howell Filmosound 385
Bell and Howell Filmosound 120-G
Bell and Howell Filmosound 142
Bell and Howell Filmo Diplomat 57-Z
Bell and Howell Filmo Diplomat B
Bell and Howell Filmosound 202
Bell and Howell Filmosound 384
Bell and Howell Filmosound 399
Bell and Howell Filmosound 185
Bell and Howell Filmo Diplomat BA
Bell and Howell Filmosound 130
Bell and Howell Filmo Diplomat 57-V
Bell and Howell Filmo Diplomat BD-2
Bell and Howell Auditorium 130
Bell and Howell Filmo Diplomat 173
Bell and Howell Filmosound 138
Bell and Howell Filmo Auditorium B
Bell and Howell Filmosound 120-J
Bell and Howell Filmosound 120-K
Bell and Howell Filmosound 120-H
Bell and Howell Filmo Diplomat 57-W
Bell and Howell Filmo Auditorium A
Bell and Howell Filmosound 120-D
Bell and Howell Filmosound 179
Bell and Howell Filmosound 302
Bell and Howell Filmo Auditorium 130
Bell and Howell Filmosound 120-F
Bell and Howell Filmo Diplomat BAY
Bell and Howell Filmo Showmaster 129
Bell and Howell Auditorium A
Bell and Howell Filmo Diplomat 57-X
Bell and Howell Filmosound 398
Bell and Howell Filmo Diplomat 57-Y
Bell and Howell Filmo Statesman 273
Bell and Howell Filmosound 120-C
Bell and Howell Filmo Diplomat AD
Bell and Howell Filmosound 195
Bell and Howell Filmosound 138-A
Bell and Howell Filmosound 285
Bell and Howell Filmosound 140
Bell and Howell Filmosound 120-E
Bell and Howell Filmosound 120-B
Bell and Howell Filmo Diplomat A
Triangle Projectors Model 1600
Triangle Projectors Model 1200
