DAH ANSI Code

DAH ANSI is a T12 lamp with a G17q-A2A base operating at 500 watts and 120 volts. It has a color temperature of 3000 Kelvin. It has a Obscured Top finish. The average rated life is 200 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DAH lamps.

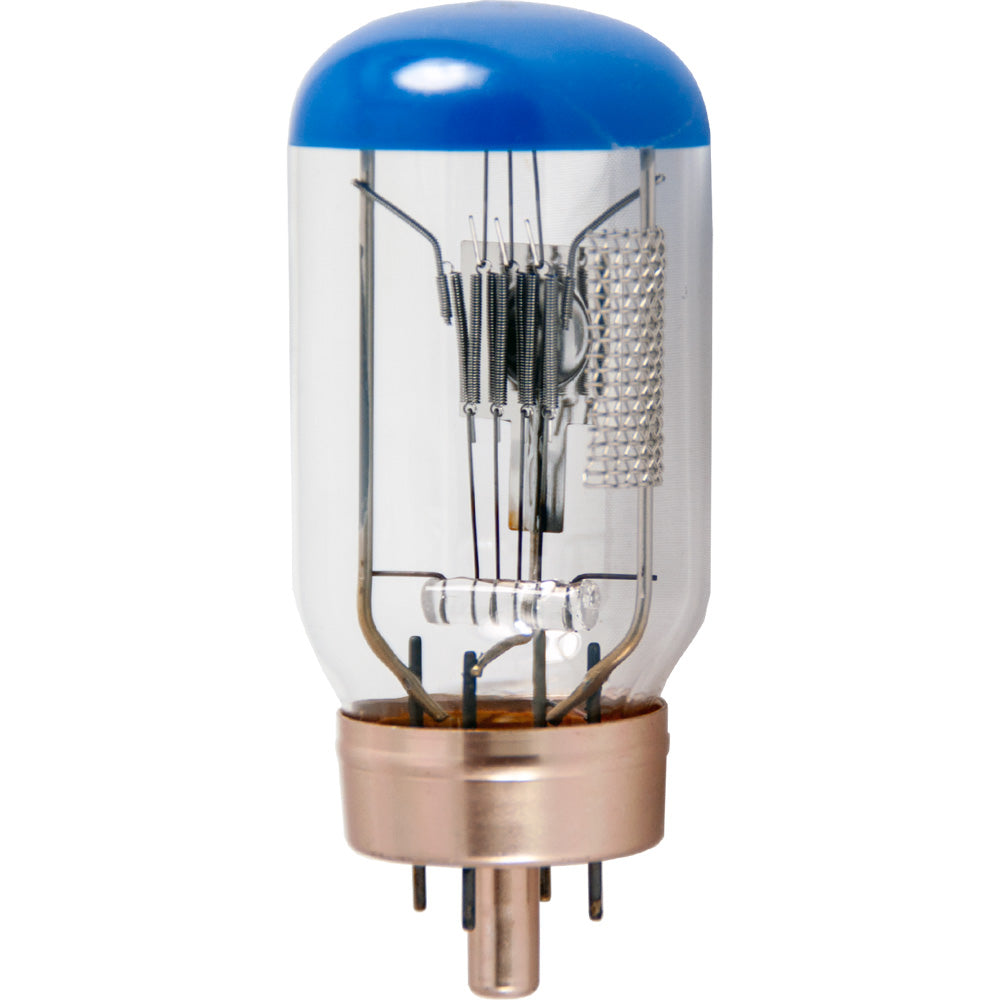

DAH Photograph

DAH

Electrical Specifications

Amps4.17
Volts120
Watts500

Photometrics

Color Temperature3000
Light Center Length (LCL)1 3/4
Lumens10000

Physical Characteristics

BaseG17q-A2A
Bulb ShapeT12
FilamentC-13D
FinishObscured Top
Max Overall Length (MOL)3 5/8

Operating Characteristics

Burn PositionBDTH
Life Hours200

General Information
Lamp CodeDAH
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsDAH500W, 120V
Microlites120-500-31H
MicrolitesDAH
Canimpex120-500-31H
CanimpexDAH

Equipment Used In

BrandModelType
Buhl Koolite 90-CF
Buhl Koolite 90-CW
Buhl Koolite 90-SSF
Buhl Koolite 100-WF
Buhl Koolite 100-SSF
Buhl Koolite 90-W
Buhl Koolite 100-W
Buhl Koolite 90-WF
Buhl Koolite 100-CF
Buhl Koolite 90-C
Buhl Koolite 100-SS
Buhl Koolite 100-C
Buhl Koolite 90-SS
COC (Graflex) Showcase SC-814 Projector Slide / Filmstrip
Camera Optics Manufacturing Corp. Showcase SC-814 Projector Slide / Filmstrip
Eastman Kodak Carousel 860
Eastman Kodak Carousel AV-860
Eastman Kodak Ektagraphic AF
Eastman Kodak Carousel 800
Eastman Kodak Ektagraphic RA-950
Eastman Kodak Carousel 950
Eastman Kodak Carousel 850
Eastman Kodak Carousel 900
Eastman Kodak Carousel 570
Eastman Kodak Carousel AV-850
Eastman Kodak Ektagraphic B
Eastman Kodak Carousel 650
Eastman Kodak Carousel 850K
Eastman Kodak Carousel AV-500
Eastman Kodak Carousel 600
Eastman Kodak Carousel 550
Eastman Kodak Carousel AV-760
Eastman Kodak Carousel 500
Eastman Kodak Ektagraphic E
Eastman Kodak Carousel AV-650
Eastman Kodak Carousel AV-580
Eastman Kodak Recordak Motormatic MPG
Eastman Kodak Carousel RA-950
Eastman Kodak Carousel AV-700
Eastman Kodak Carousel AV-600
Eastman Kodak Ektagraphic RA-960
Eastman Kodak Carousel B-865-Q
Eastman Kodak Carousel B-864-Q
Eastman Kodak Carousel AV-570
Eastman Kodak Carousel AV-900
Eastman Kodak Carousel AV-800
Eastman Kodak Carousel AV-750
Eastman Kodak Carousel AV-950
Eastman Kodak Carousel 580
Eastman Kodak Carousel 760
Eastman Kodak Ektagraphic Slide
Eastman Kodak Carousel 700
Eastman Kodak Carousel 750
GAF (Ansco) Anscorama 940 8mm Projector Movie
GAF (Ansco) Anscorama 910 8mm Projector Movie
GAF (Ansco) Anscorama 960 8mm Projector Movie
Gregory Magnetic Ind. GMI-44 Overhead Projector
Hanimex GMI-44
Mast Development Random Access S-6 Slide Projector
Mast Development Random Access S-4 Slide Projector
Mast Development Random Access 137-S-6
Mast Development Random Access 137-S
Mast Development Random Access 137-S-4
Photronix Scan Executive 10/40
Sears Roebuck Pro-Am Projector Slide / Filmstrip
Singer Corporation Instructor II
Spindler & Sauppe Spectrum 32 Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 321 (newer model) Projector Slide / Filmstrip
Spindler & Sauppe Selectroslide 32 Projector Slide / Filmstrip
