DAS ANSI Code

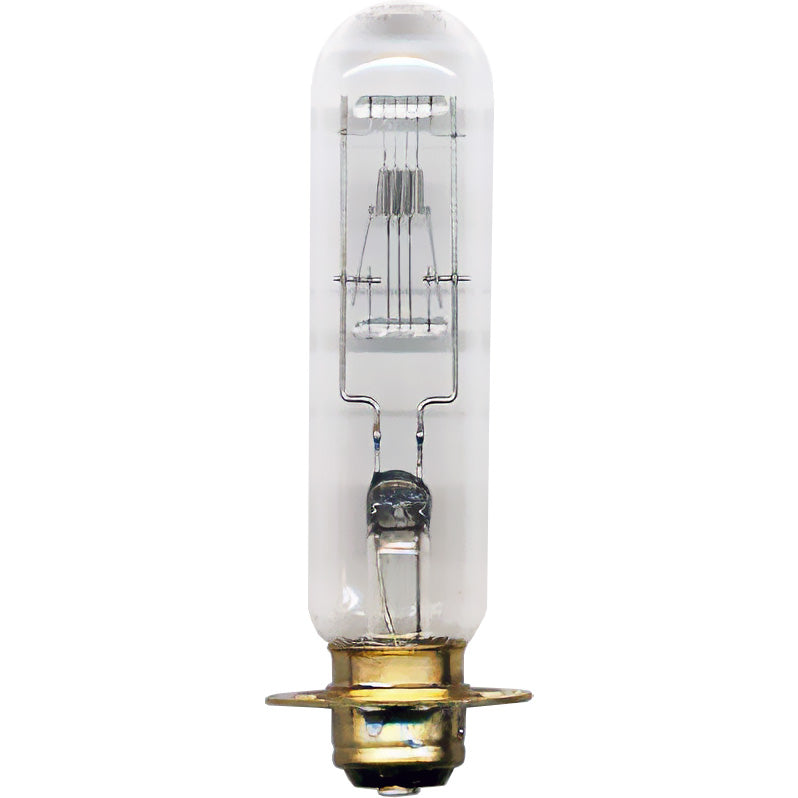

DAS ANSI is a T10 lamp with a DCMR base operating at 500 watts and 120 volts. It has a color temperature of 3250 Kelvin. It has a Obscured Top finish. The average rated life is 25 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DAS lamps.
Electrical Specifications | |
| Amps | 4.17 |
|---|---|
| Volts | 120 |
| Watts | 500 |
Photometrics | |
| Candlepower | 1000 |
|---|---|
| Color Temperature | 3250 |
| Light Center Length (LCL) | 3 1/2 |
| Lumens | 13000 |
Physical Characteristics | |
| Base | DCMR |
|---|---|
| Bulb Shape | T10 |
| Filament | C-13D |
| Finish | Obscured Top |
| Max Overall Length (MOL) | 5 7/8 |
Operating Characteristics | |
| Burn Position | Base Up |
|---|---|
| Life Hours | 25 |
General Information | |
| Lamp Code | DAS |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T10 Shape | |
 | |
| Diameter Designation | 10/8" |
|---|---|
| Glass Diameter | 1 1/4" (1.25") |
| Shape Code | T |
| Shape Classification | Tubular |
C-13D Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|

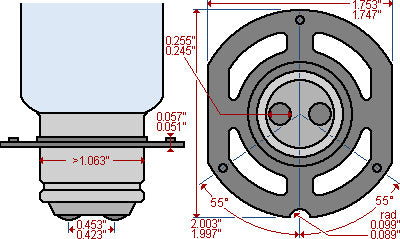

DCMR Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Eiko | DAS (WIKO) | ||
| Microlites | 120-500-DC/RING | ||
| Microlites | 120-500DC | ||
| Canimpex | 120-500-DC/RING | ||
| Canimpex | 120-500DC | ||
Equipment Used In | ||
| Brand | Model | Type |
| Bell and Howell | JAN Military D-4 | |
| Bell and Howell | JAN Military 914 | |
| Bell and Howell | JAN Military 614-D-4 | |
| Bell and Howell | JAN D-4 | |
| Eastman Kodak | 16mm Model 30 | |
| Eastman Kodak | Television CM350 | |
| Eastman Kodak | Eastman 25-C | |
| Eastman Kodak | Television 250 | |
| Eastman Kodak | 25-B | |
| Eastman Kodak | Television 275 | |
| Eastman Kodak | 16mm Model 25 | |
| Eastman Kodak | 16mm Model 40 | |
| Eastman Kodak | Eastman 40 | |
| Eastman Kodak | 16mm Model 25C | |
| Eastman Kodak | 16mm Model 25B | |
| Eastman Kodak | Television 285 | |
DAS may also be listed as: | |||
| 29640 GENERAL-ELECTRIC | DAS | DAS ANSI | DAS ASA |
| DAS BULB-DIRECT | DAS GENERAL-ELECTRIC | DAS INTERLIGHT | DAS LAMPTECH |
| DAS-120 VOLT ANSI | DAS-120 VOLT ASA | DAS-120V | DAS-120V ANSI |
| DAS-120V ASA | DAS-120V-500W | DAS-120V-500W ANSI | DAS-120V-500W ASA |
| DAS-120V-500W-P38S-T-10-C-13D-OBSCURED-TOP-13000L-3250K-25H-BU-5-7/8MOL-3-1/2LCL-I-8MM-B-H-MOVIE-PROJECTOR-D.C-MED.-RING.-SPECIAL-BASE | DAS-120V-500W-P38S-T10-C13D-OBSCURED-TOP-13000L-3250K-25H-BU-5-7/8MOL-3-1/2LCL-I-8MM-B-H-MOVIE-PROJECTOR-D.C-MED-RING-SPECIAL-BASE | DAS-120V/120V/500W/DCMR ANSI | DAS/120 |
| DAS/120 ANSI | DAS/120 ASA | DAS/120V GENERAL-ELECTRIC | DAS/120V/500W/DCMR ANSI |
| DAS/T10-500W-115V-120V LAMPTECH | I/120V/500W/DCMR/T10/C13D/25H | I/120V/500W/DCMR/T10/C13D/25H/DAS | I/120V/500W/DCMR/T10/CL/25H |
| I/120V/500W/DCMR/T10/CL/25H/DAS | SP500T10DCMRC13D-120V | SP500T10DCMRC13D120V-DAS | SP500T10DCMRCL-120V |
| SP500T10DCMRCL120V-DAS | |||
