DAY ANSI Code

DAY ANSI is a T10 lamp with a G17q-A24A base operating at 500 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Obscured top finish. The average rated life is 30 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DAY lamps.

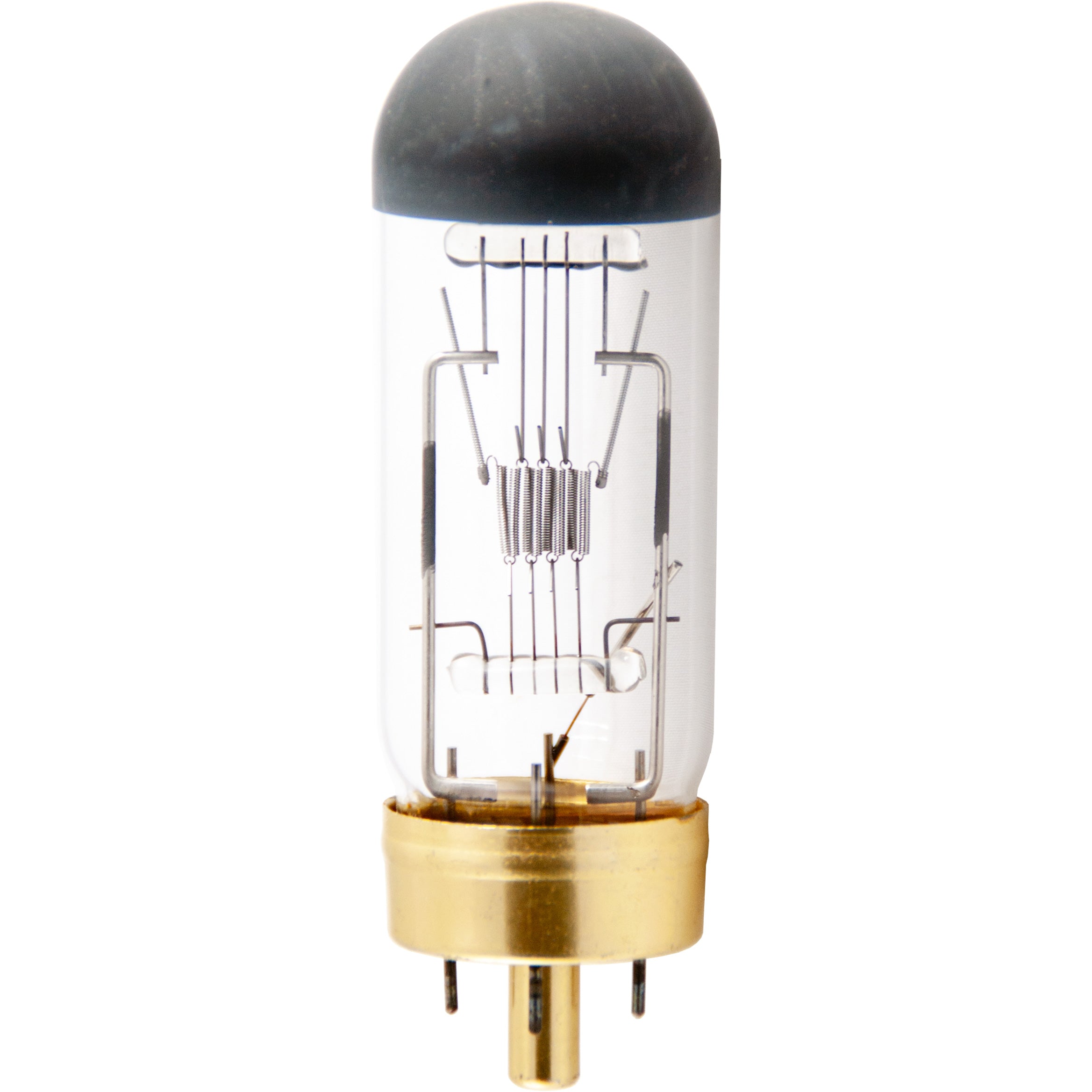

DAY Photograph

DAY

Electrical Specifications

Amps4.17
Volts120
Watts500

Photometrics

Candlepower990
Color Temperature3200
Light Center Length (LCL)1 9/16
Lumens12500

Physical Characteristics

BaseG17q-A24A
Bulb ShapeT10
FilamentC-13D
FinishObscured top
Max Overall Length (MOL)4

Operating Characteristics

Burn PositionBase Down
Life Hours30

General Information
Lamp CodeDAY
Code TypeANSI
Specification ReferenceANSI-SR24F2002

Substitution Notes
For 220V Use DBS/220V/500W
For 230V Use DBS/230V/500W
For 240V Use DBS/240V/500W
For 250V Use DBS/250V/500W
For 240V Use A1/180-240V

T10 Shape

T10
Diameter Designation10/8"
Glass Diameter 1 1/4" (1.25")
Shape CodeT
Shape ClassificationTubular

C-13D Filament

C-13D
Coil TypeC - Single Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsDAYDAY DAK 500W 120V 125V
Microlites120-500-31
Microlites125-500-31
Canimpex120-500-31
Canimpex125-500-31

Equipment Used In

BrandModelType
A.R. Bernard (GAF) Viceroy I 8mm Projector Movie
A.R. Bernard (GAF) Viceroy IV 8mm Projector Movie
A.R. Bernard (GAF) Viceroy II 8mm Projector Movie
AV Concepts SFS-500
Accura Videocom Slide Projector
Accura Videocom 500W Slide Projector
Accura Videocom 1000 Slide Projector
Agfa-Gevaert Diamator M
Airequipt 1250
Airequipt Superba 77a Sound Slide Projector
Airequipt Festival 30 Slide Projector
Airequipt Avventura 380
Airequipt 1240
Airequipt 1135
Airequipt 1235
Airequipt Autostack 560 Slide Projector
Airequipt Superba 77a Slide Projector
Airequipt 300 Series (newer model)
Airequipt Avventura 340
Airequipt Autostack 550 Slide Projector
Airequipt Avventura 360
Airequipt 900 Series
Airequipt Superba 44a Slide Projector
Airequipt 1670
Airequipt Sonic Slide Projector
Airequipt Sprite 30 Slide Projector
Airequipt 3000 Series
Airequipt 1635
Airequipt 1150
Airequipt Superba 44 Slide Projector
Airequipt 100
Airequipt 1660
Airequipt Superba 66a Slide Projector
Airequipt Superba 77 Slide Projector
Amplifier Corp. Magnamatic 920
Argus V-8
Argus 524-5
Argus 233 Overhead Projector
Argus Electromatic 558
Argus 910
Argus President 527
Argus Electromatic 570
Argus Electromatic 543
Argus 244 Overhead Projector
Argus Electromatic 542 Enlarger / Photo Printer
Argus Electromatic 550 Enlarger / Photo Printer
Argus President 526
Argus Electromatic 555
Argus Stack 554
Argus Automatic 545 Microfilm Reader
Argus 233-FR
Argus Holiday 505
Argus Electromatic 541 Enlarger / Photo Printer
Argus 58
Atlas Rand Corp. K-880
Atlas Rand Corp. K-990
Atlas Rand Corp. K-900
Bell and Howell Monterey 253-RX (serials over S40535)
Bell and Howell Monterey 253-AX (serials over AR25400)
Bell and Howell Filmo Master 57-R
Bell and Howell Slidemaster 937-Y
Bell and Howell Monterey 353
Bell and Howell Slidemaster 937
Bell and Howell Monterey RV (serials to AF-75450)
Bell and Howell Explorer 753
Bell and Howell Explorer 754
Bell and Howell Autoload 353
Bell and Howell Monterey Deluxe 253-RVY
Bell and Howell Filmo Master 57-S
Bell and Howell Monterey Autoload 353
Bell and Howell Monterey 253-RV (serials to AF75450)
Bell and Howell Monterey 245
Bell and Howell Autoload 245
Bell and Howell Monterey Deluxe 253-RV
Bell and Howell Monterey 253-ZX (serials over AR25400)
Borg Warner D-40 (w/ heat filter)
Borg Warner D-45 (w/ heat filter)
Brumberger 1406 FLEETWOOD
Brumberger 500 FLEETWOOD
Camera & Audio Centers Vellautomat
Camera & Audio Centers Fantox-Vellautomat
Dukane Silent 28A53 Projector
Dukane Micromatic II 28A81-5 Projector
Dukane Silent 55A Projector
Dukane Silent 28A55 Projector
Dukane 28A55A Projector
Dukane Response Micromatic 28A83-5 Projector
EDL Incorporated Math Builder
EDL Incorporated Control Reader
EDL Incorporated Tech X
Ehrenreich Photo-Optical Industries (EPOI) Automatic Projector Slide / Filmstrip
Ehrenreich Photo-Optical Industries (EPOI) Nikkormat Autofocus Projector Slide / Filmstrip
Ehrenreich Photo-Optical Industries (EPOI) Autofocus Projector Slide / Filmstrip
Elco Optisonics Spectra Mark I
Elmo Preview 600
Elmo 652
Elmo Preview 620
Elmo 650
Empire Projector Corp. GC1
GAF (Ansco) Anscomatic 660 8mm Projector Movie
GAF (Ansco) Anscomatic 690 8mm Projector Movie
GAF (Ansco) Anscomatic 680 8mm Projector Movie
GAF (Ansco) 1670
GAF (Ansco) 2720
GAF (Ansco) 1660 8mm Projector Movie
GAF (Ansco) 1600-E
GAF (Ansco) 1690
GAF (Ansco) 2710
GAF (Ansco) 2100R
GAF (Ansco) Anscomatic 444
GAF (Ansco) 2660
GAF (Ansco) Anscomatic 670 8mm Projector Movie
GAF (Ansco) 1600
Graflex Constellation (serials over 17000) Slide Projector
Graflex School-Master 102
Hanimex 500-S
Hanimex 500 Super Auto
Hanimex Auto Focus
Hanimex 500 Auto
Hanimex 500-RF
Hanimex Focal Mark II
Honeywell Preview 640
Honeywell Preview 620
Honeywell Rolleiflex 1704
Honeywell Universal 1704
Honeywell Preview 610
Hoover Brothers Strip Master Projector
JC Penney 777
JC Penney 888
JC Penney 999
JC Penney 100
JC Penney 1000
JC Penney 200
Keystone Camera Co. Inc. K-511 (newer model) Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-660 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 770 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 660 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 511 (newer model) Projector Slide / Filmstrip
Keystone Camera Co. Inc. 900 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 880 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-900 Projector Slide / Filmstrip
Leitz Pradovit FA
Leitz Pradovit Color F
Leitz Pradovit F
Mansfield Industries Hi-Fi (newer model) Viewer/Editing
Mansfield Industries Holiday M-1000 (excluding models 3001/3202/3241) 8mm Projector Movie
Mansfield Industries 322
Mansfield Industries Midway 500 (newer model) 8mm Projector Movie
Mansfield Industries Hi-Fi Deluxe (newer model) Viewer/Editing
Mansfield Industries Holiday M-1000 (newer model) 8mm Projector Movie
Mansfield Industries Deluxe Viewer/Editing
Mansfield Industries Skylark 500
Mansfield Industries Hi-Fi
Mansfield Industries Deluxe (newer model) Viewer/Editing
Mansfield Industries Skylark 500 (newer model)
Mansfield Industries Holiday MZ-1000 8mm Projector Movie
Mansfield Industries Holiday 500 (newer model)
McClure Projectors Associate Projector
Minolta Auto Pak Microfilm
Minolta AF Microfilm
Minolta Auto Pak AF/2 Microfilm
Minolta AF-2 Microfilm
Montgomery Ward 853 8mm Projector Movie
Montgomery Ward 900 8mm Projector Movie
Montgomery Ward 222
Montgomery Ward 642
Montgomery Ward 811 8mm Projector Movie
Montgomery Ward 899 8mm Projector Movie
Montgomery Ward 111
Montgomery Ward 444
Montgomery Ward 644
Montgomery Ward 666
Montgomery Ward 100
Montgomery Ward 852 8mm Projector Movie
Montgomery Ward Q-882
Montgomery Ward 500
Montgomery Ward 400
Montgomery Ward 640
Nikon Nikkormat Automatic
Osawa Monterey 253-RV (serials to AF-75450) Projector
Osawa Monterey RV (serials to AF-75450) Projector
Osawa Autoload 353 Projector
Osawa Monterey 253-AX (serials over AR25400) Projector
Osawa Autoload Magnetic 353 Projector
Revere Camera Co. 505-S Projector Slide / Filmstrip
Rollei Universal
Sawyer's Inc. Special Projector
Sawyer's Inc. Crestline 550-A Projector
Sawyer's Inc. 500-700-A-1 Projector
Sawyer's Inc. Rotomatic 727-AQ Projector
Sawyer's Inc. 500-ER Projector
Sawyer's Inc. Crestline 550-R Projector
Sawyer's Inc. Rotomatic 737-AQ Projector
Sawyer's Inc. Rotodisc 500-XR Projector
Sawyer's Inc. 500-RF Projector
Sawyer's Inc. Crestline 503 Projector
Sawyer's Inc. ER Projector
Sawyer's Inc. Rotomatic 707-AQZ Projector
Sawyer's Inc. 500-R Projector
Sawyer's Inc. R Projector
Sawyer's Inc. Viceroy M-4 Projector
Sawyer's Inc. S Projector
Sawyer's Inc. Grand Prix 570-AF Projector
Sawyer's Inc. 500-S Projector
Sawyer's Inc. RI Projector
Sawyer's Inc. T Projector
Sawyer's Inc. Crestline Deluxe Projector
Sawyer's Inc. Crestline Special Projector
Sawyer's Inc. Rotoshow 701 Projector
Sawyer's Inc. 500-T Projector
Sawyer's Inc. Rotomatic 700-A Projector
Sawyer's Inc. RF Projector
Sawyer's Inc. Grand Prix 570-M Projector
Sawyer's Inc. Crestline Special R-6 Projector
Sears Roebuck 9843 SEARS Projector Slide / Filmstrip
Sears Roebuck 9854 SEARS Projector Slide / Filmstrip
Sears Roebuck 8434 TOWER Projector Slide / Filmstrip
Sears Roebuck 9853 SEARS Projector Slide / Filmstrip
Sears Roebuck Whisper Matic 9873 Projector Slide / Filmstrip
Sears Roebuck 9826 SEARS Projector Slide / Filmstrip
Sears Roebuck 9886 SEARS Projector Slide / Filmstrip
Sears Roebuck 8434 SEARS Projector Slide / Filmstrip
Sears Roebuck Whisper Matic 9875 Projector Slide / Filmstrip
Sears Roebuck Whisper Matic 9876 Projector Slide / Filmstrip
Sears Roebuck 9875 TOWER Projector Slide / Filmstrip
Sears Roebuck Whisper Matic 9874 Projector Slide / Filmstrip
Sears Roebuck 9875 SEARS Projector Slide / Filmstrip
Sears Roebuck 9844 SEARS
Singer Corporation Reader Senior
Singer Corporation Mark II
Singer Corporation School Master 500-RC
Singer Corporation Automatic (serials over 17000)
Singer Corporation Constellation
Singer Corporation School Master 500
Standard Projector & Equipment 500 Jr. (new) Projector Slide / Filmstrip
Standard Projector & Equipment 500 Projector Slide / Filmstrip
Standard Projector & Equipment 500-RR
Standard Projector & Equipment 500-C2
Standard Projector & Equipment 500-RR-2 Projector Slide / Filmstrip
Standard Projector & Equipment C-2 500
Synchromat Equipment Model S Slide Projector
Viewlex V-25P Viewer/Editing
Viewlex VHA-25R
Viewlex WV-500
Viewlex Viewtalk WHD-25
Viewlex V-45P
Viewlex WHD-45 Viewer/Editing
Viewlex V-500P
Viewlex WHD-25 Viewer/Editing
Wollensak Optical Wollensak P-815
1 2 Next »

DAY may also be listed as:
01160 EIKO01160 UPC01160 WIKO1170
01170 WIKO031293011602 EIKO048777110782 UPC1000164 BLV
1000164 USHIO20486-7 PHILIPS204867/DAY/DAK PHILIPS29695
3129301160 WIKO32 SYLVANIA456-167 DUKANE500/T10G17Q125
500/T10G17Q125V500/T10TF125500/T10TF125V500T10TRUE-FOCUS125
500T10TRUE-FOCUS125V500WATT-T10-G17Q-125VOLT500WATT-T10-G17Q-3 SYLVANIA58.8877
58.8877 OSRAM58.8877-120 VOLT OSRAM58.8877-125VOLT58.8877/125
58.8877/125V58.8877/125V OSRAM58.8877/125V/500W OSRAM58.8897/120V OSRAM
60518162806282-C-05-120 VOLT PHILIPS6282-C-05-125VOLT PHILIPS
6282-C-120 VOLT PHILIPS6282-C-125VOLT PHILIPS6282/C125 PHILIPS6282/C125V PHILIPS
6282C-05/120V PHILIPS6282C-05/125V PHILIPS6282C-120V PHILIPS6282C/120V/500W
6282C/120V/500W CONDOR6282C/120V/500W/12500L/G17Q/8.5X7.5-FILAMENT/25H/OT/39.7MMLCL/32X103/TUBE6282C/120V/500W/12500L/G17Q/8.5X7.5-FILAMENT/25H/OT/39.7MMLCL/32X103/TUBE CONDOR670 SAWYER
670-R SAWYER74460 OSRAM74460 SYLVANIA74460/DAY/DAK SYLVANIA
9215 TUNGSRAM9215-120 VOLT TUNGSRAM9215-125VOLT TUNGSRAM9215/125 TUNGSRAM
9215/125V TUNGSRAMA1-180-115V-500W LIFA1-180-120 VOLT ATLASA1-180-120 VOLT LIF
A1-180-120 VOLT THORNA1-180/115V LIFA1-180/115V/500WA1-180/115V/500W ATLAS
A1-180/115V/500W THORNA1-180/120V LIFA1-180/120V THORNA1/180 LIF
A1/180 THORNA1/180-115V-500W-G17Q-T32-C13D-OBSCURED-TOP-11400L-25H-VBD-103MMMOL-39.7MMLCL-I-FORCED-COOLING-NECESSARYA1/180-120 VOLTA1/180/115V
BW-DAY-DAKBW-DAY-DAK-GEDAK/DAY/DAT ANSIDAY ANSI
DAY ASADAY INTERLIGHTDAY MICROLAMPDAY SYLVANIA
DAY USHIODAY WESTINGHOUSEDAY WIKODAY-115V/115V/500W/G17Q ANSI
DAY-120 VOLT ANSIDAY-120 VOLT ASADAY-120 VOLT-500WATT USHIODAY-120V ANSI
DAY-120V ASADAY-120V-500WDAY-120V-500W ANSIDAY-120V-500W ASA
DAY-120V-500W-G17Q-7 USHIODAY-120V-500W-G17Q-T10-C13D-OBSCURED-TOP-12500L-3200K-30H-BD-4MOL-1-9/16LCL-I-SLIDE-PROJECTOR-FORCED-COOLINGDAY-120V/120V/500W/G17Q ANSIDAY-125V
DAY-125V ANSIDAY-125V ASADAY-125V-500WDAY-125V-500W ANSI
DAY-125V-500W ASADAY-125V-500W-G17Q-T10-C13D-OBSCURED-TOP-12500L-3200K-30H-BD-4MOL-1-9/16LCL-I-SLIDE-PROJECTOR-FORCED-COOLINGDAY-125V/125V/500W/G17Q ANSIDAY-125VOLT ANSI
DAY-125VOLT ASADAY-125VOLT-500WATT ANSIDAY-125VOLT-500WATT ASADAY-5 ANSI
DAY-5 ASADAY-5-DAK-5 ANSIDAY-5-DAK-5 ASADAY-500W-120V-G17Q-7 USHIO
DAY-A SYLVANIADAY-D ANSIDAY-D ASADAY-D-AK ANSI
DAY-D-AK ASADAY-D-AK-1 ANSIDAY-D-AK-1 ASADAY-DAK EIKO
DAY-DAK GENERAL-ELECTRICDAY-DAK SYLVANIADAY-DAK WESTINGHOUSEDAY-DAK WIKO
DAY-DAK-5DAY/115V/500W/G17Q ANSIDAY/120V GENERAL-ELECTRICDAY/120V/500W/G17Q ANSI
DAY/125DAY/125 ANSIDAY/125 ASADAY/125V/500W/G17Q ANSI
DAY/125V500DAY/125V500 ANSIDAY/125V500 ASADAY/5
DAY/5DAK5DAY/DAK BULB-DIRECTDAY/DAK INTERLIGHTDAY/DAK MICROLAMP
DAY/DAK OSRAMDAY/DAK PHILIPSDAY/DAK USHIODAY/DAK-120V-500W-G17Q-7 USHIO
DAY/DAK-5 INTERLIGHTDAY/DAK-5 WIKODAY/DAK-500W-120V-G17Q-7 USHIODAY/DAK-GE
DAY/DAK-OPAQUE-TOP-120V-T32MM-104MMMOL-39.7MMLCL-C-13D-12500L-3200K-25H-BD-1000164 BLVDAY/DAK-OPAQUE-TOP-120V-T32MM-104MMMOL-39.7MMLCL-C-13D-12500L-3200K-25H-BD-1000164 USHIODAY/DAK/DAT ANSIDAY125/500
DAY125/500 ANSIDAY125/500 ASADAY125/500WDAY125/500W ANSI
DAY125/500W ASAEQ-A1/180/115V ELECTROQUIPFG-81-B GENERAL-ELECTRICG17Q7-500W-DAY/DAK-OPAQUE-TOP-120V-T32MM-104MMMOL-39.7MMLCL-C-13D-12500L-3200K-25H-BD-1000164 BLV
G17Q7-500W-DAY/DAK-OPAQUE-TOP-120V-T32MM-104MMMOL-39.7MMLCL-C-13D-12500L-3200K-25H-BD-1000164 USHIOI/115V/500W/G17Q-A24A/T10/25HI/115V/500W/G17Q-A24A/T10/C13D/OT/30HI/115V/500W/G17Q-A24A/T10/C13D/OT/30H/DAY-115V
I/115V/500W/G17Q-A24A/T10/CC13/25HI/115V/500W/G17Q-A24A/T10/CC13/25H/A1-180-115V-500W LIFI/115V/500W/G17Q-A24A/T10/CC13/OT/25HI/115V/500W/G17Q-A24A/T10/CC13/OT/25H/A1-180-115V-500W LIF
I/115V/500W/G17Q-A24A/T10/OT/30HI/115V/500W/G17Q-A24A/T10/OT/30H/DAY-115VI/115V/500W/G17Q/T10/C13D/OT/30HI/115V/500W/G17Q/T10/C13D/OT/30H/DAY-115V
I/115V/500W/G17Q/T10/CC13/25HI/115V/500W/G17Q/T10/CC13/25H/A1-180-115V-500W LIFI/115V/500W/G17Q/T10/CC13/OT/25HI/115V/500W/G17Q/T10/CC13/OT/25H/A1-180-115V-500W LIF
I/115V/500W/G17Q/T10/OT/30HI/115V/500W/G17Q/T10/OT/30H/DAY-115VI/120V/500W/G17Q-A24A/T10/C13D/OT/30HI/120V/500W/G17Q-A24A/T10/C13D/OT/30H/DAY-120V
I/120V/500W/G17Q-A24A/T10/OT/30HI/120V/500W/G17Q-A24A/T10/OT/30H/DAY-120VI/120V/500W/G17Q/T10/C13D/39MMLCL/12500L/103MMMOL/OT/25H/6282C-120V PHILIPSI/120V/500W/G17Q/T10/C13D/39MMLCL/OT/25H/6282C-120V PHILIPS
I/120V/500W/G17Q/T10/C13D/39MMLCL/OT/25H/SP500T10G17QC13DOT120VI/120V/500W/G17Q/T10/C13D/OT/30HI/120V/500W/G17Q/T10/C13D/OT/30H/DAY-120VI/120V/500W/G17Q/T10/OT/30H
I/120V/500W/G17Q/T10/OT/30H/DAY-120VI/120V/500W/G17Q/T32MM/C13D/39MMLCL/12500L/103MMMOL/OT/25H/6282C-120V PHILIPSI/125V/500W/G17Q-A24A/T10/C13D/OT/30HI/125V/500W/G17Q-A24A/T10/C13D/OT/30H/DAY-125V
I/125V/500W/G17Q-A24A/T10/OT/30HI/125V/500W/G17Q-A24A/T10/OT/30H/DAY-125VI/125V/500W/G17Q/T10I/125V/500W/G17Q/T10/C13
I/125V/500W/G17Q/T10/C13D/OT/30HI/125V/500W/G17Q/T10/C13D/OT/30H/DAY-125VI/125V/500W/G17Q/T10/OT/30HI/125V/500W/G17Q/T10/OT/30H/DAY-125V
I/125V/500W/G17Q/T32MMI/125V/500W/G17Q/T32MM/C13INC-120V-500W-C13D-25HR/120V/500W/G17Q-7/DAY/DAK USHIOINC-120V-500W-C13D-25HR/DAY/DAK USHIO
KP-TC-10-100-120 VOLT-500WATTKP-TC-10-58.8877 KONDOKP-TC-10-DAY-DAK KONDOPQ-500WATT
PROJECTION/115V/500W/G17Q/25H/33.5X102.5MM ELECTROQUIPSP500T10G17QA24AC13DOT115V-DAY-115VSP500T10G17QA24AC13DOT120V-DAY-120VSP500T10G17QA24AC13DOT125V-DAY-125V
SP500T10G17QA24AOT115V-DAY-115VSP500T10G17QA24AOT120V-DAY-120VSP500T10G17QA24AOT125V-DAY-125VSP500T10G17QC13DOT115V-DAY-115V
SP500T10G17QC13DOT120VSP500T10G17QC13DOT120V-DAY-120VSP500T10G17QC13DOT125V-DAY-125VSP500T10G17QOT115V-DAY-115V
SP500T10G17QOT120V-DAY-120VSP500T10G17QOT125V-DAY-125VSYL-180 SYLVANIA
