DBR ANSI Code

DBR ANSI is a T12 lamp with a P28s base operating at 300 watts and 120 volts. It has a color temperature of 3100 Kelvin. It has a Clear finish. The average rated life is 500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DBR lamps.

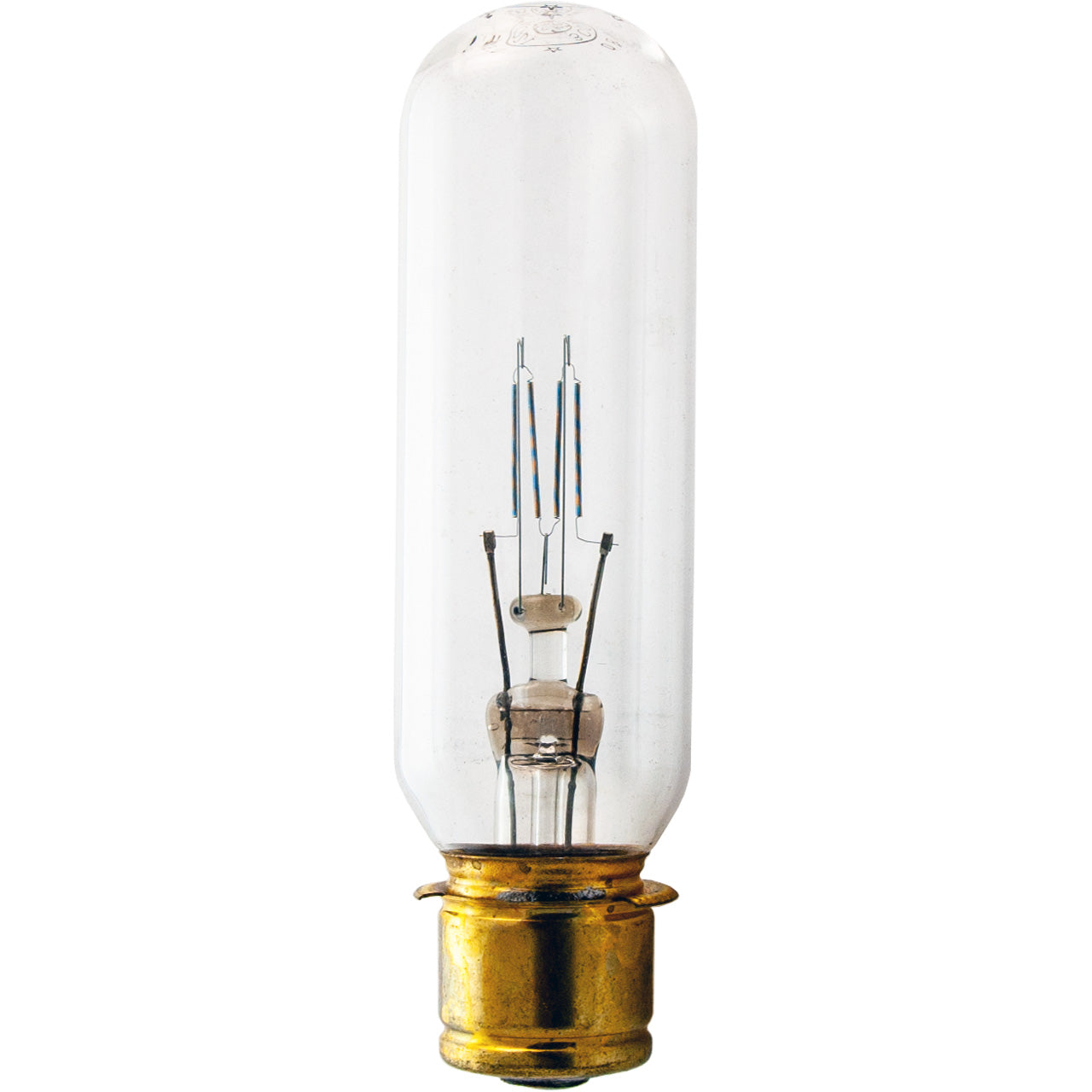

DBR Photograph

DBR

Electrical Specifications

Amps2.5
Volts120
Watts300

Photometrics

Candlepower380
Color Temperature3100
Light Center Length (LCL)2 3/16
Lumens3000

Physical Characteristics

BaseP28s
Bulb ShapeT12
FilamentC-13
FinishClear
Max Overall Length (MOL)5 3/4

Operating Characteristics

Burn PositionVBD
Life Hours500

General Information
Lamp CodeDBR
Code TypeANSI

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-13 Filament

C-13
Coil TypeC - Single Coil

P28s Base

P28s

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
ANSIDBR
