DCA ANSI Code

DCA ANSI is a T12 lamp with a G17q-B34 base operating at 150 watts and 21 volts. It has a color temperature of 3250 Kelvin. It has a Obscured Top finish. The average rated life is 15 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DCA lamps.

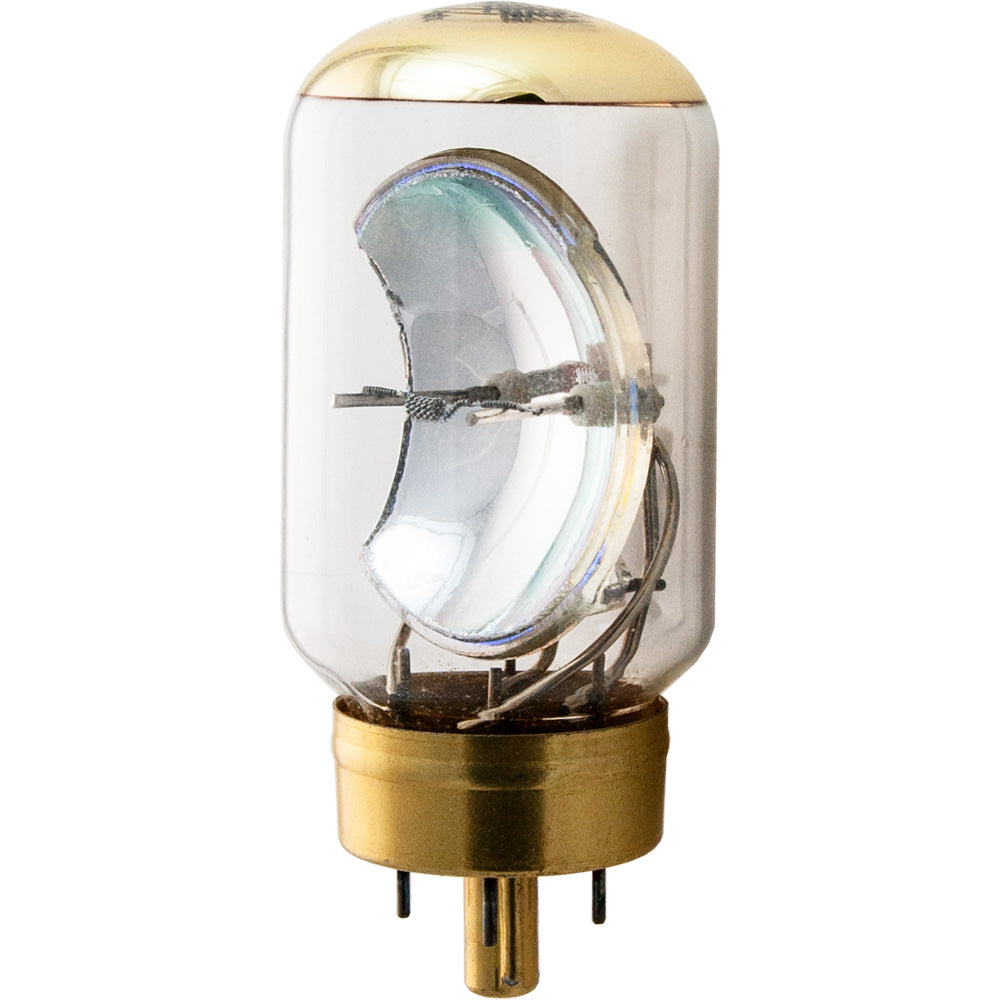

DCA Photograph

DCA

Electrical Specifications

Amps7.14
Volts21
Watts150

Photometrics

Color Temperature3250
Light Center Length (LCL)1 9/16

Physical Characteristics

BaseG17q-B34
Bulb ShapeT12
FilamentCC-6
FinishObscured Top
Max Overall Length (MOL)3 9/16

Operating Characteristics

Burn PositionBDTH
Life Hours15

General Information
Lamp CodeDCA
Code TypeANSI
Specification ReferenceANSI-SR24F2002

Substitution Notes
For More Heat Use DEF

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

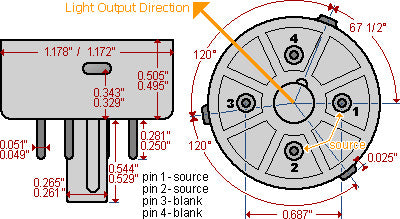

G17q-B34 Base

G17q-B34

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Norman LampsDCF/DEF/DCA150W, 21.5V
Microlites21.5-150-31AR
Canimpex21.5-150-31AR
Orbitec130422H 67032

Equipment Used In

BrandModelType
A.R. Bernard (GAF) Ricoh 8P Auto 8mm Projector Movie
American Research Laboratories Photo-Tronic 800
Argus Showmaster 472
Argus Showmaster M-750
Argus Showmaster 750-AV
Argus 750-AVZ 8mm Projector Movie
Argus Showmaster 1000
Argus Showmaster 471
Argus Showmaster 480
Argus Showmaster 481
Argus Showmaster 475
Argus Showmaster 470
Bell and Howell Touch Tronic 265
Bell and Howell Director 363
Bell and Howell Director Super 363
Bell and Howell Autoload Super
Bell and Howell Autoload Super 363
Bell and Howell Multi Motion 254
Bell and Howell Multi Motion Autoload 255
Bell and Howell Design 363
Bell and Howell Autoload 254
Bell and Howell Autoload 255
DeJur Amsco Ambassador 810
DeJur Amsco 880
Eastman Kodak Instamatic M-100-P
Eastman Kodak Color Enlarger 2
Elmo Dual-8 913
Elmo AP-8-929
Elmo FP-8-C
Elmo Dual-8 917
Elmo Dual-8 TP-8
Elmo Dual-8 916
Elmo TP-8-926
Elmo FP-8-C-986
Elmo FPA
Elmo FP-8925
Elmo Dual-8 914
Elmo FP-E
Elmo AP-8
Elmo FP-C
Elmo Dual-8 OM-8
Honeywell Elmo 916-FP-8-C
Honeywell TP-8-926 Projector Slide / Filmstrip
Honeywell Dual-8 916
Honeywell AP-8-929
Honeywell Dual-8 914
Honeywell Dual-8 917
Honeywell FP-8-C-986
Honeywell Dual-8 913
Honeywell Elmo 925-FP-8
Honeywell Elmo 929-AP-8
Honeywell FP-8925 Enlarger / Photo Printer
Honeywell Elmo 926-TP-8
Honeywell Elmo AP-8
Kalart Victor VP-88
Keystone Camera Co. Inc. K-110-AZ Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-101-Z Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-100-G Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-101 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 110-Z Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-110 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 110-AZ Projector Slide / Filmstrip
Keystone Camera Co. Inc. 100-G Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-100-Z Projector Slide / Filmstrip
Keystone Camera Co. Inc. 100-Z Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-77 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-110-Z Projector Slide / Filmstrip
Phototronic Corporation of America 800
Revere Camera Co. 178 Projector Slide / Filmstrip
Revere Camera Co. 718 Projector Slide / Filmstrip
Ricoh Auto 8-P
Sankyo 8-VP
Sears Roebuck Automatic 9285 Projector Slide / Filmstrip
Sears Roebuck Automatic 9291 Projector Slide / Filmstrip
Sears Roebuck Automatic 9283 Projector Slide / Filmstrip
Sears Roebuck Automatic 9290 Projector Slide / Filmstrip
Viewlex VOS
Wollensak Optical Wollensak 818 Slide / Filmstrip Projector

Sources

  • "Sylvania Photolamps." Catalog. GTE Sylvania, .
  • "Lampes Orbitec." Catalog. ORBITEC, .
  • "GE Rolodex Projector Cross Reference." Rolodex. Photo Lamp Department General Electric Co. & Popular Photography Magazine, .
