DCB ANSI Code
DCB ANSI is a T12 lamp with a G17q-A2A base operating at 300 watts and 120 volts. It has a color temperature of 2950 Kelvin. It has a Clear finish. The average rated life is 300 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DCB lamps.

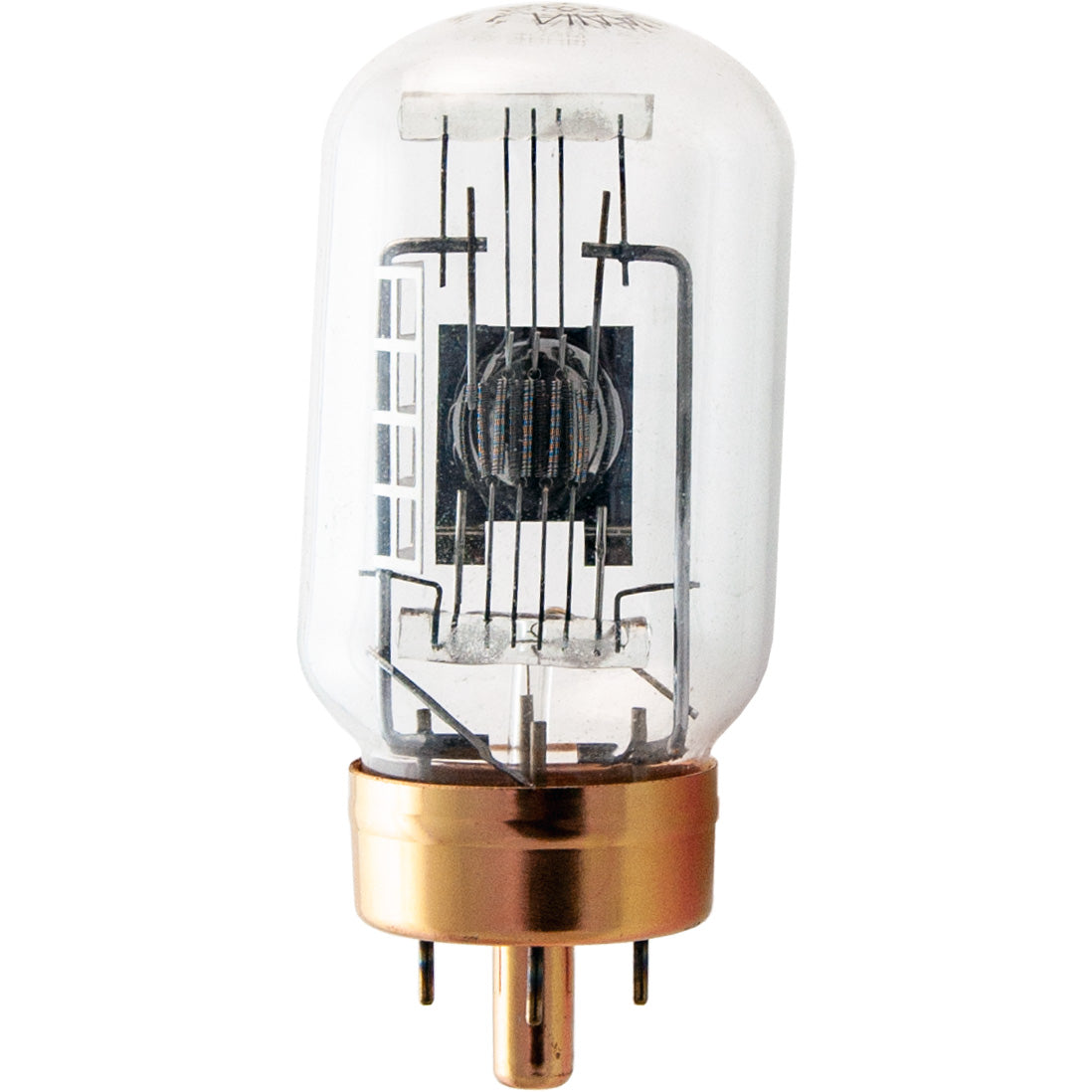

DCB Photograph |
 |
Electrical Specifications | |
| Amps | 2.5 |
|---|---|
| Volts | 120 |
| Watts | 300 |
Photometrics | |
| Candlepower | 230 |
|---|---|
| Color Temperature | 2950 |
| Light Center Length (LCL) | 1 9/16 |
| Lumens | 2950 |
Physical Characteristics | |
| Base | G17q-A2A |
|---|---|
| Bulb Shape | T12 |
| Filament | C-13D |
| Finish | Clear |
| Max Overall Length (MOL) | 3 9/16 |
Operating Characteristics | |
| Burn Position | BDTH |
|---|---|
| Life Hours | 300 |
General Information | |
| Lamp Code | DCB |
|---|---|
| Code Type | ANSI |
| NATO Stock Number | 6240-00-279-8685 |
T12 Shape | |
 | |
| Diameter Designation | 12/8" |
|---|---|
| Glass Diameter | 1 1/2" (1.5") |
| Shape Code | T |
| Shape Classification | Tubular |
C-13D Filament | |
 | |
| Coil Type | C - Single Coil |
|---|---|
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Norman Lamps | DCB | 300W, 120V | |
Equipment Used In | ||
| Brand | Model | Type |
| Micro Information Systems | 1200 | |
| Micro Information Systems | 1201 | |
| Micro Information Systems | 1202 | |
| Micro Information Systems | 202 | |
| Micro Information Systems | 210 | |
DCB may also be listed as: | |||
| 6240-00-279-8685 | BA15D | BA15D ANSI | BA15D ASA |
| BA15D/120 | BA15D/120 ANSI | BA15D/120 ASA | BA15D/120V |
| BA15D/120V ANSI | BA15D/120V ASA | DC/120 | DC/120 ANSI |
| DC/120 ASA | DC/120V | DC/120V ANSI | DC/120V ASA |
| DCB | DCB ANSI | DCB BULB-DIRECT | DCB INTERLIGHT |
| DCB-120V | DCB-120V ANSI | DCB-120V ASA | DCB-120V-300W |
| DCB-120V-300W ANSI | DCB-120V-300W ASA | DCB-120V-300W-G17Q-T12-C13D-CLEAR-2950K-300H-BDTH-3-9/16MOL-1-9/16LCL-I-PROXIMITY-REFLECTOR | DCB-120V/120V/300W/G17Q ANSI |
| DCB/120V/300W/G17Q ANSI | EQ-DCB ELECTROQUIP | EQ-DCB/G17Q-120V-300W ELECTROQUIP | I/120V/300W/G17Q-A2A/T12/C13D/300H |
| I/120V/300W/G17Q-A2A/T12/C13D/300H/DCB | I/120V/300W/G17Q-A2A/T12/CL/300H | I/120V/300W/G17Q-A2A/T12/CL/300H/DCB | I/120V/300W/G17Q/T12/C13D/300H |
| I/120V/300W/G17Q/T12/C13D/300H/DCB | I/120V/300W/G17Q/T12/CL/300H | I/120V/300W/G17Q/T12/CL/300H/DCB | SP300T12G17Q-A2AC13D120V |
| SP300T12G17Q-A2ACL120V | SP300T12G17QA2AC13D120V-DCB | SP300T12G17QA2ACL120V-DCB | SP300T12G17QC13D-120V |
| SP300T12G17QC13D120V-DCB | SP300T12G17QCL120V-DCB | ||
