DCF ANSI Code
DCF ANSI is a T12 lamp with a G17q-B34 base operating at 150 watts and 21.5 volts. It has a color temperature of 3250 Kelvin. It has a Clear finish. The average rated life is 15 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DCF lamps.

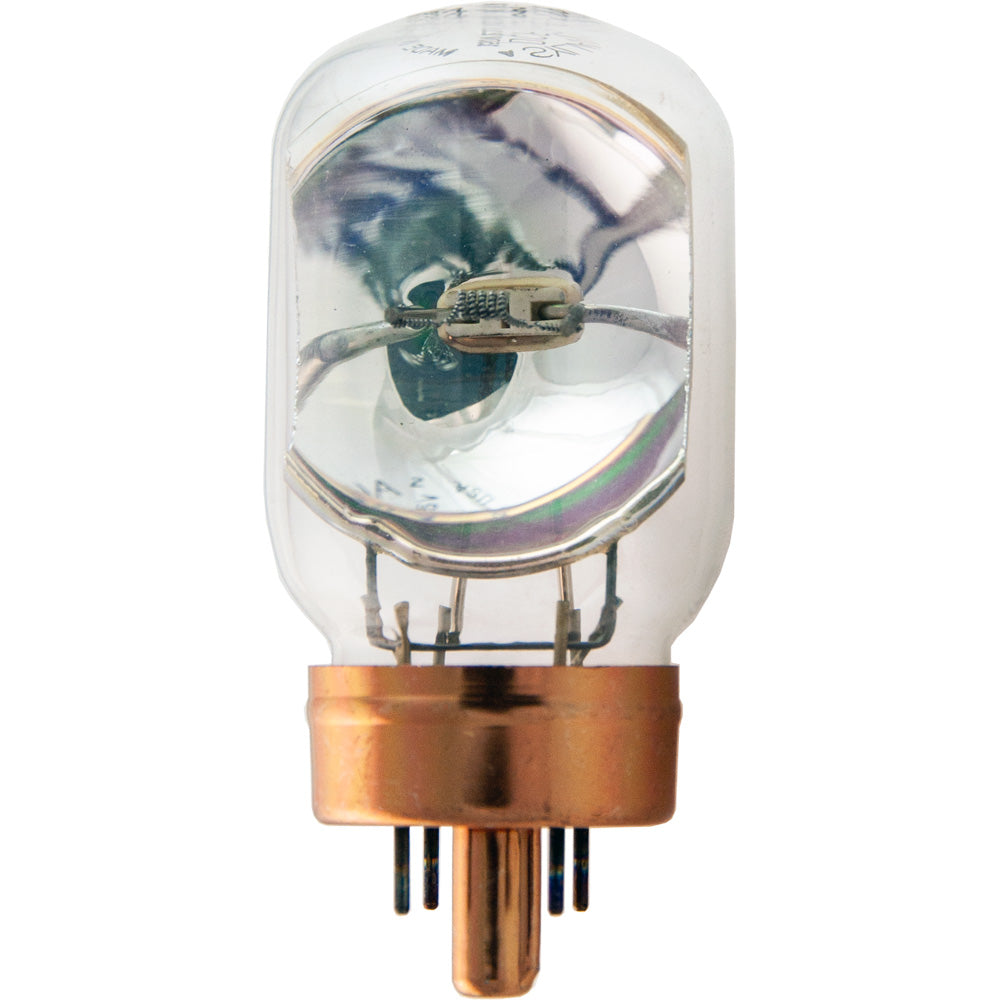

DCF Photograph |
 |
Electrical Specifications | |
| Amps | 6.98 |
|---|---|
| Volts | 21.5 |
| Watts | 150 |
Photometrics | |
| Color Temperature | 3250 |
|---|---|
| Light Center Length (LCL) | 1 9/16 |
Physical Characteristics | |
| Base | G17q-B34 |
|---|---|
| Bulb Shape | T12 |
| Filament | CC-6 |
| Finish | Clear |
| Max Overall Length (MOL) | 3 3/16 |
Operating Characteristics | |
| Burn Position | BDTH |
|---|---|
| Life Hours | 15 |
General Information | |
| Lamp Code | DCF |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T12 Shape | |
 | |
| Diameter Designation | 12/8" |
|---|---|
| Glass Diameter | 1 1/2" (1.5") |
| Shape Code | T |
| Shape Classification | Tubular |
CC-6 Filament | |
 | |
| Coil Type | CC - Coiled Coil |
|---|---|
G17q-B34 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| Norman Lamps | DCF/DEF/DCA | 150W, 21.5V | |
| Microlites | 21-150-31D | ||
| Canimpex | 21-150-31D | ||
Equipment Used In | ||
| Brand | Model | Type |
| Technicolor | 600-AD | 8mm Projector |
| Technicolor | 610 | 8mm Projector Movie |
| Technicolor | 810 | 8mm Projector Movie |
