DCH ANSI Code

DCH ANSI is a T12 lamp with a G17q-A23 base operating at 150 watts and 120 volts. It has a color temperature of 3200 Kelvin. It has a Clear finish. The average rated life is 15 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DCH lamps.

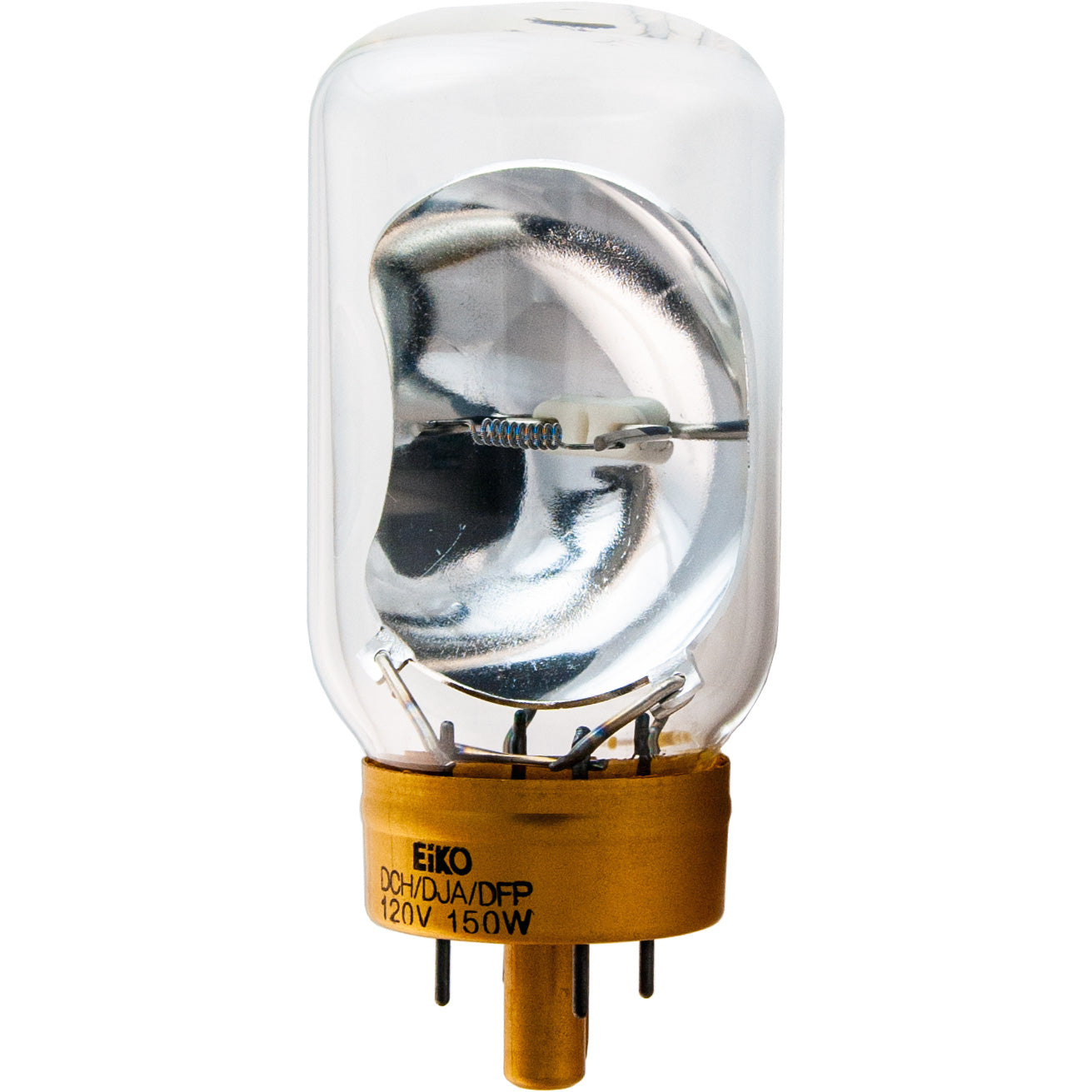

DCH Photograph

DCH

Electrical Specifications

Amps1.25
Volts120
Watts150

Photometrics

Color Temperature3200
Light Center Length (LCL)1 9/16
Lumens85slm

Physical Characteristics

BaseG17q-A23
Bulb ShapeT12
FilamentCC-6
FinishClear
Max Overall Length (MOL)3 3/8

Operating Characteristics

Burn PositionBase Down
Life Hours15

General Information
Lamp CodeDCH
Code TypeANSI
Specification ReferenceANSI-SR24F2002
EquivalentsDJA, DFP

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

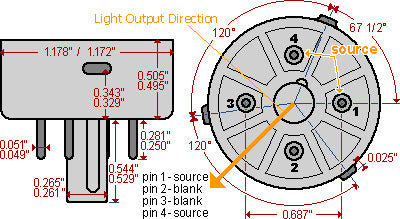

G17q-A23 Base

G17q-A23

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites120-150-31D
Canimpex120-150-31D

Equipment Used In

BrandModelType
A.R. Bernard (GAF) Viceroy 802 8mm Projector Movie
A.R. Bernard (GAF) Viceroy 800-Z 8mm Projector Movie
A.R. Bernard (GAF) Viceroy 803 8mm Projector Movie
A.R. Bernard (GAF) Viceroy 801 8mm Projector Movie
A.R. Bernard (GAF) Viceroy 800 8mm Projector Movie
A.R. Bernard (GAF) Crestline CRP-II 8mm Projector Movie
A.R. Bernard (GAF) Viceroy 800-R 8mm Projector Movie
A.R. Bernard (GAF) Viceroy 811 8mm Projector Movie
A.R. Bernard (GAF) Crestline S-800 8mm Projector Movie
Airequipt 2300-Z
Airequipt 2100
Airequipt 2200
Airequipt 2100-Z
Argus Holiday 838 8mm Projector Movie
Argus 750-AVZ 8mm Projector Movie
Argus 848 8mm Projector Movie
Argus 849 8mm Projector Movie
Audion Corp. 40
Crestline 148
Crestline 168
Crestline CRP-2
Crestline 800
Crestline S-800
DeJur Amsco Eye Fidelity
DeJur Amsco Versatile 909
DeJur Amsco Eldorado 84-AF
DeJur Amsco 86-AF-AZ
DeJur Amsco Dual Super-8 DP-77
DeJur Amsco Eldorado 84-AZ
DeJur Amsco 747-MV
DeJur Amsco Insta Valometer
DeJur Amsco PT-55
DeJur Amsco Citation 750-AZ
DeJur Amsco Citation 750-MV
DeJur Amsco Korvaire DP-777
DeJur Amsco Eldorado 747-AZ
DeJur Amsco Metropolitan DP-707
DeJur Amsco Remote Command 888-RC
DeJur Amsco Eldorado 888AZ
DeJur Amsco Eldorado 84-MV
DeJur Amsco Eldorado 888-MV
DeJur Amsco Scenette PT-40
DeJur Amsco 84-AF-AZ
DeJur Amsco Citation 850-MV
DeJur Amsco Versatile DP-909
DeJur Amsco Eldorado 86-MV
DeJur Amsco Citation 850-AZ
DeJur Amsco Scenette PT-50
DeJur Amsco Eldorado 86-AF
DeJur Amsco Scenette PT-45
DeJur Amsco Dual Super-8 DP-77-Z
DeJur Amsco Eldorado 86-AZR
DeJur Amsco Eldorado 86-AZ
DeJur Amsco Remote Command 86-AZR
Eastman Kodak Browni A-4
Eastman Kodak Brownie A-4
Eastman Kodak Brownie 310
Eastman Kodak Automatic 8-1
Eastman Kodak Brownie 310 Model A-4
Eastman Kodak Brownie E
Eastman Kodak Automatic 8-1-P
Emdeko 9000 8mm Projector Movie
Emdeko 7000 8mm Projector Movie
GAF (Ansco) Anscovision 388-D 8mm Projector Movie
GAF (Ansco) 1372 8mm Projector Movie
GAF (Ansco) Memo 80 8mm Projector Movie
GAF (Ansco) Dual-8 8mm Projector Movie
GAF (Ansco) 1688Z (older) 8mm Projector Movie
GAF (Ansco) Anscovision 8 8mm Projector Movie
GAF (Ansco) Anscovision Dual-8 8mm Projector Movie
GAF (Ansco) Anscovision 8188 8mm Projector Movie
GAF (Ansco) Memory Master 8mm Projector Movie
GAF (Ansco) 1388Z (August 1973) 8mm Projector Movie
GAF (Ansco) Anscorama 188-Z 8mm Projector Movie
GAF (Ansco) Anscovision 80 8mm Projector Movie
GAF (Ansco) Anscovision 588 8mm Projector Movie
GAF (Ansco) 1333 8mm Projector Movie
GAF (Ansco) Anscovision 555 8mm Projector Movie
GAF (Ansco) Anscovision 388-Z 8mm Projector Movie
GAF (Ansco) Anscovision 188 8mm Projector Movie
GAF (Ansco) Anscovision 1388-D 8mm Projector Movie
GAF (Ansco) 88 8mm Projector Movie
GAF (Ansco) Anscovision 333 8mm Projector Movie
GAF (Ansco) Anscovision 388 8mm Projector Movie
GAF (Ansco) 1388Z 8mm Projector Movie
GAF (Ansco) Anscorama 88 8mm Projector Movie
GAF (Ansco) Anscovision 488 8mm Projector Movie
GAF (Ansco) Anscovision 188-Z 8mm Projector Movie
GAF (Ansco) Anscovision 688 8mm Projector Movie
GAF (Ansco) 1388 8mm Projector Movie
GAF (Ansco) Anscovision 666 8mm Projector Movie
Keystone Camera Co. Inc. 965 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-980-ZV Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-104 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 950 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 535-Z Projector Slide / Filmstrip
Keystone Camera Co. Inc. 980-Z Projector Slide / Filmstrip
Keystone Camera Co. Inc. 950-S Projector Slide / Filmstrip
Keystone Camera Co. Inc. 440 Projector Slide / Filmstrip
Keystone Camera Co. Inc. Super-8 K-520 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 660-Z Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-960 Projector Slide / Filmstrip
Keystone Camera Co. Inc. Super-8 K-519 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 960 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 955 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 442 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-660-Z Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-965 Projector Slide / Filmstrip
Keystone Camera Co. Inc. Super-8 K-520-M Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-67 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-301 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 660 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-660-ZV Projector Slide / Filmstrip
Keystone Camera Co. Inc. 529 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 980-S Projector Slide / Filmstrip
Keystone Camera Co. Inc. Super-8 540-Z Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-950-ZV Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-980-S Projector Slide / Filmstrip
Keystone Camera Co. Inc. 301 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 540-S Projector Slide / Filmstrip
Keystone Camera Co. Inc. 520 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-91 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 980 Projector Slide / Filmstrip
Keystone Camera Co. Inc. Super-8 540 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 950-Z Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-98 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-103 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-955 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 520-M Projector Slide / Filmstrip
Keystone Camera Co. Inc. Super-8 K-519-M Projector Slide / Filmstrip
Keystone Camera Co. Inc. 980-ZV Projector Slide / Filmstrip
Keystone Camera Co. Inc. 535-S Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-980-Z Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-980 Projector Slide / Filmstrip
Keystone Camera Co. Inc. Super 8 Projector Slide / Filmstrip
Keystone Camera Co. Inc. KJ-65 Projector Slide / Filmstrip
Keystone Camera Co. Inc. Super-8 535 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-660 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 955-S Projector Slide / Filmstrip
Keystone Camera Co. Inc. 539 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 960-Z Projector Slide / Filmstrip
Keystone Camera Co. Inc. 519 Projector Slide / Filmstrip
Keystone Camera Co. Inc. M Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-630-ZV Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-630 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-630-Z Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-62 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 660-S Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-65 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-539 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 630 Projector Slide / Filmstrip
Keystone Camera Co. Inc. Super-8 K-529 Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-950 Projector Slide / Filmstrip
Keystone Camera Co. Inc. 960-S Projector Slide / Filmstrip
Keystone Camera Co. Inc. 955-Z Projector Slide / Filmstrip
Keystone Camera Co. Inc. K-950-Z Projector Slide / Filmstrip
Mansfield Industries Holiday M-1000 (newer model) 8mm Projector Movie
Mansfield Industries Holiday M-1000-3001 8mm Projector Movie
Mansfield Industries Holiday M-1000-3241 8mm Projector Movie
Mansfield Industries Holiday M-1000-3202 8mm Projector Movie
McClure Projectors Instant View 4-510-A Projector
Montgomery Ward 816 8mm Projector Movie
Montgomery Ward 814 8mm Projector Movie
Montgomery Ward 853 8mm Projector Movie
Montgomery Ward 808 8mm Projector Movie
Montgomery Ward 852 8mm Projector Movie
Montgomery Ward 899 8mm Projector Movie
Montgomery Ward 888 8mm Projector Movie
Montgomery Ward 818 8mm Projector Movie
Richmond Research Corp. 800 Dual-8
Richmond Research Corp. 600 Dual-8
Sawyer's Inc. Crestline 800-Z Projector
Sawyer's Inc. Crestline 800 Projector
Sawyer's Inc. Crestline CRP-2 Projector
Sawyer's Inc. Crestline S-800 Projector
Sawyer's Inc. Crestline 168 Projector
Sawyer's Inc. Crestline 148 Projector
Sears Roebuck Soundstage 9254 Projector Slide / Filmstrip
Sears Roebuck 9218 SEARS Projector Slide / Filmstrip
Sears Roebuck Soundstage 9230 Projector Slide / Filmstrip
Sears Roebuck 92280 SEARS Projector Slide / Filmstrip
Sears Roebuck 92230 SEARS Projector Slide / Filmstrip
Sears Roebuck 92290 SEARS Projector Slide / Filmstrip
Sears Roebuck 9218 SUPER-8 Projector Slide / Filmstrip
Sears Roebuck Soundstage 9228 Projector Slide / Filmstrip
Sears Roebuck Soundstage II 9259 Projector Slide / Filmstrip
Sears Roebuck 9217 SEARS Projector Slide / Filmstrip
Sears Roebuck Soundstage II 9258 Projector Slide / Filmstrip
Sears Roebuck Soundstage 9255 Projector Slide / Filmstrip
Sears Roebuck 9217 SUPER-8 Projector Slide / Filmstrip
Technicolor 510 8mm Projector Movie
Technicolor Home Movie 800 8mm Projector
Technicolor Home Movie 500 8mm Projector

DCH may also be listed as:
119001190 EIKO01190 UPC01190 WIKO
031293011909 EIKO5404701000166 BLV1000166 USHIO
12020 STANDARDPRO150T12G17Q/R2 SYLVANIA150T12TF/R2 SYLVANIA150T12TRUE-FOCUS/R2 SYLVANIA
150WATT-T12-G17Q-R-2 SYLVANIA50DCH GENERAL-ELECTRIC6954912020469549120204UPC STANDARDPRO
BW-DCHDCHDCH ANSIDCH ASA
DCH LAMPTECHDCH MICROLAMPDCH SYLVANIADCH USHIO
DCH WESTINGHOUSEDCH WIKODCH-120 VOLT ANSIDCH-120 VOLT ASA
DCH-120VDCH-120V ANSIDCH-120V ASADCH-120V-150W
DCH-120V-150W ANSIDCH-120V-150W ASADCH-120V-150W-G17Q-T-12-CC-6-CLEAR-3150K-15H-BD-3-3/8MOL-1-9/16LCL-I-8MM-MOVIE-PROJECTOR-INTERNAL-REFLECTOR-FOCAL-DIST.-2-1/4-BALLAST-FILAMENTDCH-120V-150W-G17Q-T12-CC6-CLEAR-3150K-15H-BD-3-3/8MOL-1-9/16LCL-I-8MM-MOVIE-PROJECTOR-INTERNAL-REFLECTOR-FOCAL-DIST-2-1/4-BALLAST-FILAMENT
DCH-120V/120V/150W/G17Q ANSIDCH-125V/125V/150W/G17Q ANSIDCH-DFP SYLVANIADCH-DFP-DJA SYLVANIA
DCH-DJA ANSIDCH-DJA ASADCH-DJA-DFP ANSIDCH-DJA-DFP ASA
DCH-DJA-DFP EIKODCH-DJA-DFP WESTINGHOUSEDCH-DJA-DFP WIKODCH/120
DCH/120 ANSIDCH/120 ASADCH/120V GENERAL-ELECTRICDCH/120V/150W/G17Q ANSI
DCH/125V ANSIDCH/125V GENERAL-ELECTRICDCH/125V/150W ANSIDCH/125V/150W/G17Q ANSI
DCH/DJADCH/DJA/120V GENERAL-ELECTRICDCH/DJA/125V GENERAL-ELECTRICDCH/DJA/DFP
DCH/DJA/DFP BULB-DIRECTDCH/DJA/DFP MICROLAMPDCH/DJA/DFP STANDARDPRODCH/DJA/DFP-REFLECTOR-CLEAR-TOP-120V-T25MM-90.5MMMOL-39.7MMLCL-CC-6-3150K-BD-1000166 BLV
DCH/DJA/DFP-REFLECTOR-CLEAR-TOP-120V-T25MM-90.5MMMOL-39.7MMLCL-CC-6-3150K-BD-1000166 USHIODCH/T12-120V-150W-4-PIN LAMPTECHEQ-DCH ELECTROQUIPEQ-DCH/G17Q-120V-150W ELECTROQUIP
G17Q7-150W-DCH/DJA/DFP-REFLECTOR-CLEAR-TOP-120V-T25MM-90.5MMMOL-39.7MMLCL-CC-6-3150K-BD-1000166 BLVG17Q7-150W-DCH/DJA/DFP-REFLECTOR-CLEAR-TOP-120V-T25MM-90.5MMMOL-39.7MMLCL-CC-6-3150K-BD-1000166 USHIOI/120V/150W/G17Q-A23/T12/CC6/OT/15H/DCH-120VI/120V/150W/G17Q-A23/T12/OT/15H/DCH-120V
I/120V/150W/G17Q/T12/CC6/OT/15H/DCH-120VI/120V/150W/G17Q/T12/OT/15H/DCH-120VI/120V/150W/G17Q/T12/PHOTOI/125V/150W/G17Q-A23/T12/CC6/OT/15H/DCH-125V
I/125V/150W/G17Q-A23/T12/OT/15H/DCH-125VI/125V/150W/G17Q/T12/CC6/OT/15H/DCH-125VI/125V/150W/G17Q/T12/OT/15H/DCH-125VPROJECTION/120V/150W/G17Q ELECTROQUIP
SP150T12G17QA23CC6OT120V-DCH-120VSP150T12G17QA23CC6OT125V-DCH-125VSP150T12G17QA23CLOT120V-DCH-120VSP150T12G17QA23CLOT125V-DCH-125V
SP150T12G17QA23OT120V-DCH-120VSP150T12G17QA23OT125V-DCH-125VSP150T12G17QCC6OT120V-DCH-120VSP150T12G17QCC6OT125V-DCH-125V
SP150T12G17QCLOT120V-DCH-120VSP150T12G17QCLOT125V-DCH-125VSP150T12G17QOT120V-DCH-120VSP150T12G17QOT125V-DCH-125V
T-12/150W120V/G17Q/DCH/DJA/DFP STANDARDPRO
