DCY ANSI Code

DCY ANSI is a T12 lamp with a G17q-A2A base operating at 150 watts and 120 volts. It has a color temperature of 3000 Kelvin. It has a Obscured Top finish. The average rated life is 500 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DCY lamps.

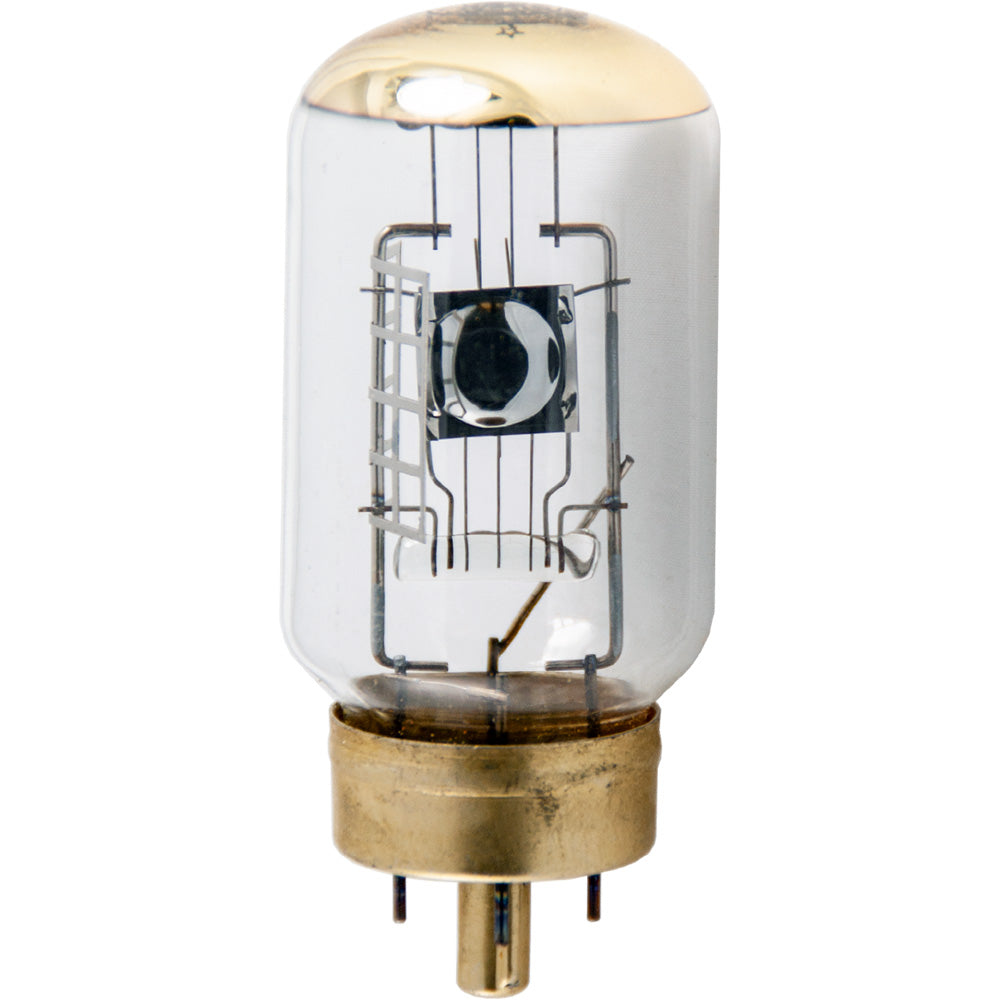

DCY Photograph

DCY

Electrical Specifications

Amps1.25
Volts120
Watts150

Photometrics

Color Temperature3000
Light Center Length (LCL)1.75" (44.5mm)

Physical Characteristics

BaseG17q-A2A
Bulb ShapeT12
FilamentC-13
FinishObscured Top
Max Overall Length (MOL)3.63" (92.1mm)

Operating Characteristics

Burn PositionHorizontal
Life Hours500

General Information
Lamp CodeDCY
Code TypeANSI
Specification ReferenceANSI-SR24F2002

T12 Shape

T12
Diameter Designation12/8"
Glass Diameter 1 1/2" (1.5")
Shape CodeT
Shape ClassificationTubular

C-13 Filament

C-13
Coil TypeC - Single Coil

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Microlites120-150-31Y
Canimpex120-150-31Y

Equipment Used In

BrandModelType
Eastman Kodak Recordak Motormatic MPG

DCY may also be listed as:
BW-DCYDCYDCY ANSIDCY ASA
DCY BULB-DIRECTDCY INTERLIGHTDCY WIKODCY-120 VOLT ANSI
DCY-120 VOLT ASADCY-120VDCY-120V ANSIDCY-120V ASA
DCY-120V-150WDCY-120V-150W ANSIDCY-120V-150W ASADCY-120V/120V/150W/G17Q ANSI
DCY/120DCY/120 ANSIDCY/120 ASADCY/120V GENERAL-ELECTRIC
DCY/120V/150W/G17Q ANSII/120V/150W/G17Q-A2A/T12/C13/OT/500HI/120V/150W/G17Q-A2A/T12/C13/OT/500H/DCYI/120V/150W/G17Q-A2A/T12/OT/500H
I/120V/150W/G17Q-A2A/T12/OT/500H/DCYI/120V/150W/G17Q/T12/C13/OT/500HI/120V/150W/G17Q/T12/C13/OT/500H/DCYI/120V/150W/G17Q/T12/OT/500H/DCY
SP150T12G17Q-A2AC13OT120VSP150T12G17Q-A2AOT120VSP150T12G17QA2AC13OT120V-DCYSP150T12G17QA2AOT120V-DCY
SP150T12G17QC13OT120VSP150T12G17QC13OT120V-DCYSP150T12G17QOT120V-DCY
