DDA ANSI Code
DDA ANSI is a T12 lamp with a G17q-B34 base operating at 150 watts and 24 volts. It has a color temperature of 3300 Kelvin. It has a Obscured Top finish. The average rated life is 18 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DDA lamps.
Electrical Specifications | |
| Amps | 6.25 |
|---|---|
| Volts | 24 |
| Watts | 150 |
Photometrics | |
| Color Temperature | 3300 |
|---|---|
| Light Center Length (LCL) | 1 5/16 |
Physical Characteristics | |
| Base | G17q-B34 |
|---|---|
| Bulb Shape | T12 |
| Filament | FC-8 |
| Finish | Obscured Top |
| Max Overall Length (MOL) | 3 |
Operating Characteristics | |
| Burn Position | BDTH |
|---|---|
| Life Hours | 18 |
General Information | |
| Lamp Code | DDA |
|---|---|
| Code Type | ANSI |
| Specification Reference | ANSI-SR24F2002 |
T12 Shape | |
 | |
| Diameter Designation | 12/8" |
|---|---|
| Glass Diameter | 1 1/2" (1.5") |
| Shape Code | T |
| Shape Classification | Tubular |

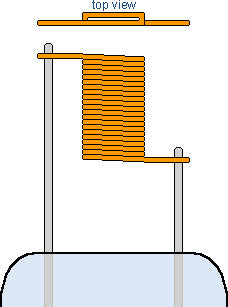

FC-8 Filament | |
 | |
| Coil Type | FC - Flat Coil |
|---|---|
G17q-B34 Base |
 |
Cross Reference Part Numbers | |||
| Brand | MPN | Description | Availability |
| ANSI | DDA | ||
Equipment Used In | ||
| Brand | Model | Type |
| Eastman Kodak | Pocket Carousel 300 | |
| Eastman Kodak | Pocket Carousel 100 | |
| Eastman Kodak | Pocket Carousel 200 | |
DDA may also be listed as: | |||
| 12023 STANDARDPRO | 69549120235 | 69549120235UPC STANDARDPRO | DDA |
| DDA ANSI | DDA ASA | DDA INTERLIGHT | DDA STANDARDPRO |
| DDA SYLVANIA | DDA WIKO | DDA-24V | DDA-24V ANSI |
| DDA-24V ASA | DDA-24V-150W | DDA-24V-150W ANSI | DDA-24V-150W ASA |
| DDA-24V-150W-G17Q-T12-FC8-BLUE-TOP-18H-BDTH-3MOL-1-5/16LCL-I | DDA-24V/24V/150W/G17Q ANSI | DDA-24VOLT ANSI | DDA-24VOLT ASA |
| DDA/24 | DDA/24 ANSI | DDA/24 ASA | DDA/24V/150W/G17Q ANSI |
| I/24V/150W/G17Q-B34/T12/FC8/OT/18H | I/24V/150W/G17Q-B34/T12/FC8/OT/18H/DDA | I/24V/150W/G17Q-B34/T12/OT/18H | I/24V/150W/G17Q-B34/T12/OT/18H/DDA |
| I/24V/150W/G17Q/T12/FC8/OT/18H | I/24V/150W/G17Q/T12/FC8/OT/18H/DDA | I/24V/150W/G17Q/T12/FC8/PR/OT/18H | I/24V/150W/G17Q/T12/FC8/PR/OT/3300K |
| I/24V/150W/G17Q/T12/OT/18H | I/24V/150W/G17Q/T12/OT/18H/DDA | I/24V/150W/G17Q/T12/PHOTO | I/24V/150W/G17QB34/T12/FC8/PR/OT/18H |
| I/24V/150W/G17QB34/T12/FC8/PR/OT/3300K | SP150T12G17QB34FC8OT24V-DDA | SP150T12G17QB34OT24V-DDA | SP150T12G17QFC8OT24V-DDA |
| SP150T12G17QOT24V-DDA | T-12/24V/150W/4-PIN/G17Q STANDARDPRO | ||
