DDM ANSI Code

DDM ANSI is a MR16D lamp with a GX5.3 base operating at 80 watts and 19 volts. It has a color temperature of 3350 Kelvin. It has a Open front finish. The average rated life is 50 hours. See the specifications table below for complete technical details, dimensions, compatibility information, and operating characteristics for ANSI DDM lamps.

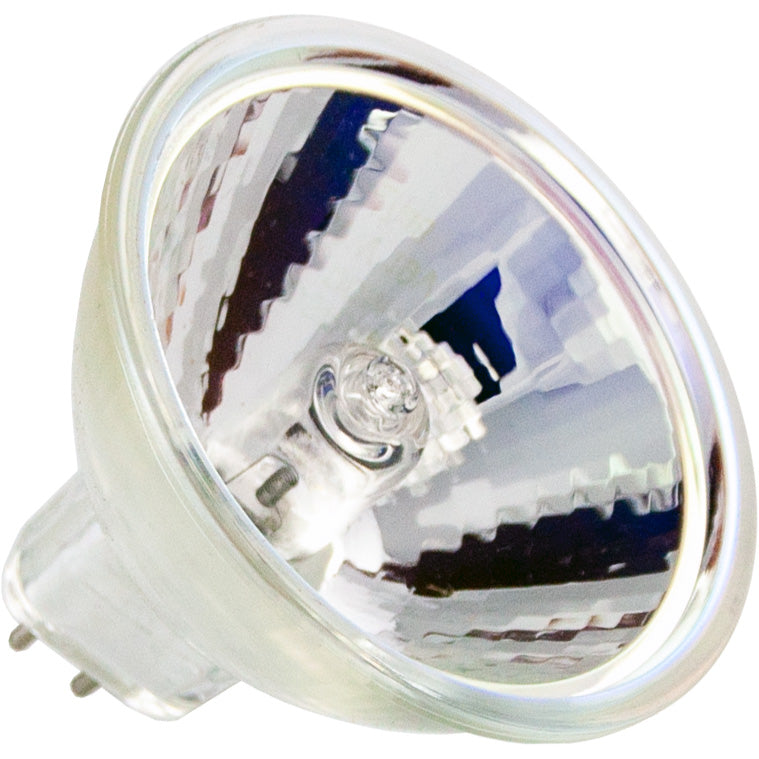

DDM Photograph

DDM

Electrical Specifications

Amps4.21
Volts19
Watts80

Photometrics

Color Temperature3350
Lumens680 lux

Physical Characteristics

BaseGX5.3
Bulb ShapeMR16D
FilamentCC-6
FinishOpen front
Max Overall Length (MOL)1 3/4

Operating Characteristics

Burn PositionBDTH
Life Hours50

General Information
Lamp CodeDDM
Code TypeANSI
Specification ReferenceANSI-SR24F2002
NATO Stock Number6240-01-148-7644, 6240-01-148-7844

MR16D Shape

MR16D
Diameter Designation16/8"
Glass Diameter 2" (2.0")
Shape CodeMR
Shape ClassificationMultifaceted Reflector

CC-6 Filament

CC-6
Coil TypeCC - Coiled Coil

GX5.3 Base

GX5.3

Cross Reference Part Numbers

BrandMPNDescriptionAvailability
Kahoku Lighting Solutions (KLS)62013-KLSDDM Japan
Green Energy Lighting (GELCO)62013-GELDDM
Norman LampsDDM80W, 19V
Microlites19-080-23R
Canimpex19-080-23R

Equipment Used In

BrandModelType
Bell and Howell Sound Slide 798
Bell and Howell Ringmaster
Bell and Howell Sound Slide 799
Bell and Howell Ringmaster 830
Bell and Howell Ringmaster 2
Bell and Howell Ringmaster 798
Bell and Howell Ringmaster 860
Bell and Howell Ringmaster 796
Bell and Howell Ringmaster 850
Bell and Howell Ringmaster 840
Bell and Howell Ringmaster 799
Bell and Howell Ringmaster 820
Bell and Howell Ringmaster 815
Bell and Howell Ringmaster 797
Bell and Howell Sound Slide 797
Bell and Howell Sound Slide 796
EIKI 840 16mm Movie Projector
EIKI 850 16mm Movie Projector
EIKI 820 16mm Movie Projector
Eastman Kodak Brightlight Modules Audio Viewer 470
Eastman Kodak Brightlight Modules Audio Viewer 260
Eastman Kodak Audioviewer 210
Eastman Kodak Brightlight Modules Audio Viewer 220
Eastman Kodak Audioviewer 410
Eastman Kodak Audioviewer 470
Eastman Kodak Brightlight Modules Audio Viewer 210
Eastman Kodak Brightlight Modules Audio Viewer 570AF
Eastman Kodak Audioviewer 220
Eastman Kodak Ektagraphic 570-A
Eastman Kodak Brightlight Modules Audio Viewer 270
Eastman Kodak Audioviewer 460
Eastman Kodak Ektagraphic 270-P
Eastman Kodak Audioviewer 270
Eastman Kodak Audioviewer 260
Eastman Kodak Audioviewer 570-A
Fairchild Camera & Instrument Syncro-Slide 35 Projector
Fairchild Camera & Instrument Synchro-Slide SS-35 Projector
Fairchild Camera & Instrument Syncro-Slide 3502 Projector
Fairchild Camera & Instrument Syncro-Slide 3505 Projector
Fairchild Camera & Instrument Syncro-Slide 3501 Projector
Fairchild Camera & Instrument 3501-P Projector
Northwest Microfilm Pro Microfilm Reader
Singer Corporation Caramate 3300 series
Telex Caramate 4320 Projector Slide / Filmstrip
Telex Caramate 4484 Projector Slide / Filmstrip
Telex Caramate 4144 Projector Slide / Filmstrip
Telex Caramate 4000 Projector Slide / Filmstrip
Telex Caramate 4344 Projector Slide / Filmstrip
Telex Caramate 4480 Projector Slide / Filmstrip
Telex Caramate 3100 Projector Slide / Filmstrip
Telex Caramate 4490 Projector Slide / Filmstrip
Telex Caramate 4324 Projector Slide / Filmstrip
Telex Caramate 4474 Projector Slide / Filmstrip
Telex Caramate 4340 Projector Slide / Filmstrip
Telex Caramate 3200 Projector Slide / Filmstrip
Telex Caramate 4470 Projector Slide / Filmstrip
Telex Caramate 4494 Projector Slide / Filmstrip
